NSN 4730-00-204-3492 AN9294J, AN929-4J, NAS1367DC4C
Product Details | TUBE CAP
4730-00-204-3492 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: AN9294J, AN929-4J, NAS1367DC4C, FJ295 , 07174, 0717-4, 2343929042 , 4FNTXSS, 8526325, 4730-00-204-3492, 00-204-3492, 4730002043492, 002043492
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-204-3492 | 06074 ( CAP, TUBE ) |

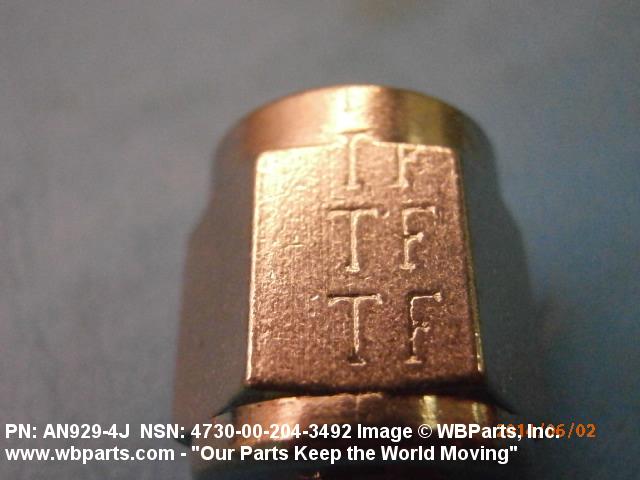

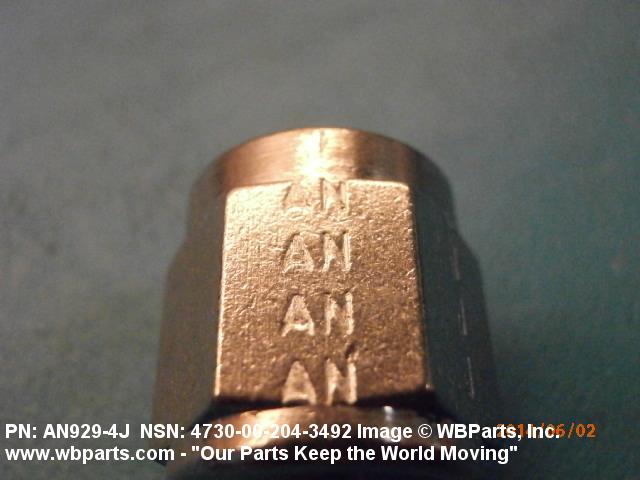

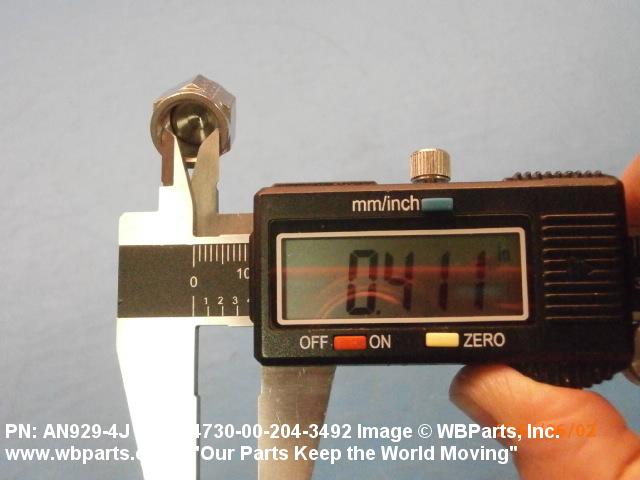

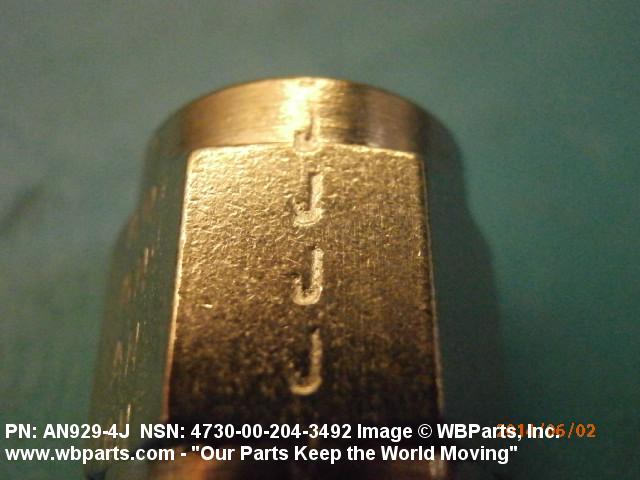

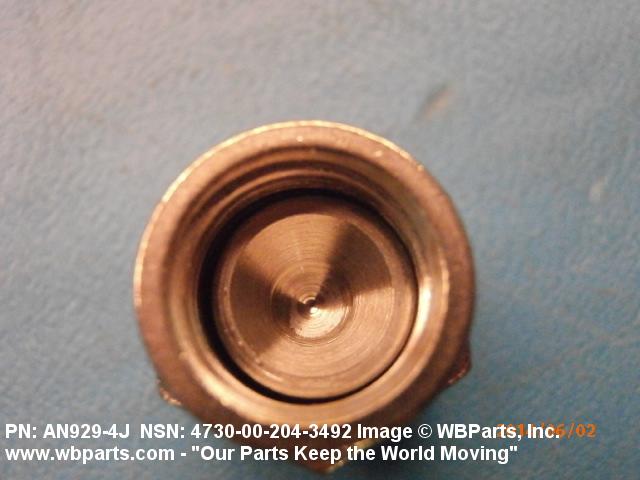

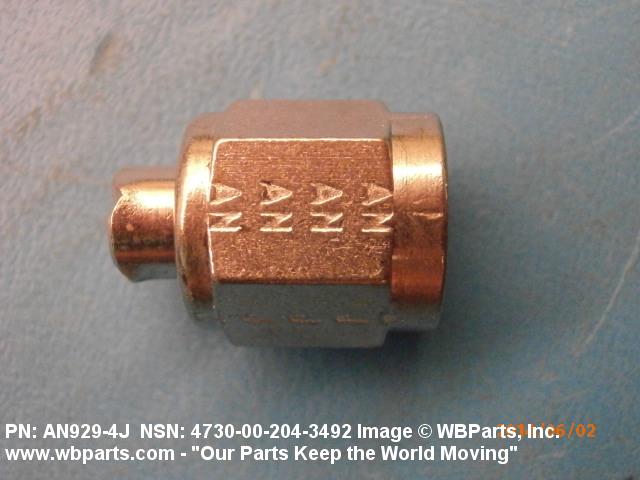

Drawings & Photos | NSN 4730-00-204-3492
Demand History | NSN 4730-00-204-3492
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4FNTXSS | 2024-11-319 | 15 | Japan |
| AN9294J | 2024-08-219 | 3 | Japan |
| AN9294J | 2024-08-219 | 3 | Japan |
| AN9294J | 2024-06-180 | 50 | United States |
| AN9294J | 2024-06-159 | 50 | United States |
| 4730-00-204-3492 | 2020-03-70 | 100 | US |
| 4730-00-204-3492 | 2020-03-70 | 150 | US |
| 4730-00-204-3492 | 2020-03-70 | 300 | US |
| 4730-00-204-3492 | 2019-09-262 | 30 | Singapore |
| AN9294J | 2017-10-304 | 2 | Norway |
| AN9294J | 2017-10-304 | 2 | Norway |
| AN9294J | 2017-09-249 | 3 | us |
| AN9294J | 2017-04-109 | 50 | US |
| AN9294J | 2017-04-101 | 50 | us |
| AN9294J | 2017-03-82 | 4 | US |
| 4FNTXSS | 2016-11-327 | 20 | US |
| AN9294J | 2016-09-273 | 50 | United States |
| AN9294J | 2016-09-271 | 50 | United States |
| AN9294J | 2016-03-74 | 2 | United States |
| AN9294J | 2014-10-302 | 2 | United States |
| AN9294J | 2014-05-141 | 2 | United States |
| AN9294J | 2014-04-113 | 2 | United States |
| AN929-4J | 2012-07-187 | 50 | KR |
| AN9294J | 2011-06-152 | 1 | us |
| AN9294J | 2011-01-19 | 25 | US |
| AN9294J | 2010-12-347 | 6 | IN |
| 4730-00-204-3492 | 2010-10-284 | 1 | UK |
Cross Reference | NSN 4730-00-204-3492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0717-4 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 2343929042 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 4FNTXSS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 4FNTXSS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 4FNTXSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 8526325 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AN929-4J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN929-4J | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN929-4J | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN929-4J | 14397 | FABER ENTERPRISES, INC. |
| AN929-4J | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN929-4J | 22995 | CROWN FITTING CO INC |
| AN929-4J | 30974 | AEROFIT, LLC |
| AN929-4J | 71563 | COLLINS ENGINEERING CORP |
| AN929-4J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN929-4J | R1120 | SATAIR A/S |
| FJ295 | U9992 | DIVEX LTD |
| NAS1367DC4C | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-204-3492
Related Products | NSN 4730-00-204-3492
Technical Data | NSN 4730-00-204-3492
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A12 CAP, TUBE, FLARED |
| CONNECTION STYLE | G5 PRESSURE SEAL FLARED |
| THREAD SERIES DESIGNATOR | UNJF INTERNAL |
| NOMINAL THREAD SIZE | 0.438 INCHES INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN929-4J |
Restrictions/Controls & Freight Information | NSN 4730-00-204-3492
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-00-204-3492
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
