NSN 4730-00-202-6701 MS90520A39G, B16.1, WWF406
Product Details | BLIND PIPE FLANGE
4730-00-202-6701 An item used for covering or closing the end of a flanged pipe fitting. The face may be drilled for connecting bolts or studs. Excludes FLANGE, PIPE.
Part Alternates: MS90520A39G, B16.1, WWF406, WWF406ACB39, WW-F-406ACB39, B161, 4730-00-202-6701, 00-202-6701, 4730002026701, 002026701
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-202-6701 | 03793 ( FLANGE, PIPE, BLIND ) |
Drawings & Photos | NSN 4730-00-202-6701
Demand History | NSN 4730-00-202-6701
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-202-6701 | 2017-07-200 | 2 | DIBBS |
Cross Reference | NSN 4730-00-202-6701
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B16.1 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| MS90520A39G | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| WW-F-406ACB39 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| WWF406 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-202-6701
Related Products | NSN 4730-00-202-6701
Technical Data | NSN 4730-00-202-6701
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 17.000 INCHES NOMINAL |
| FLANGE DIAMETER | 19.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 1.000 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 12 |

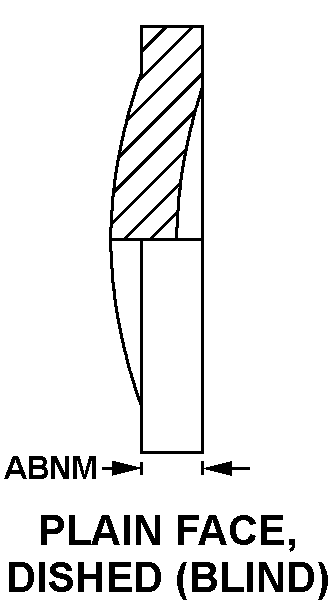

| FLANGE SECTION STYLE | 28 PLAIN FACE, DISHED |
| THICKNESS | 1.250 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 12.000 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 125.0 POUNDS PER SQUARE INCH STEAM AND 175.0 POUNDS PER SQUARE INCH GAS AND 175.0 POUNDS PER SQUARE INCH OIL AND 175.0 POUNDS PER SQUARE INCH WATER |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 150.0 DEG FAHRENHEIT GAS AND 150.0 DEG FAHRENHEIT OIL AND 150.0 DEG FAHRENHEIT WATER |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIFICATION/STANDARD DATA | 80204-B16.1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 5 TABLE |
