NSN 4730-00-200-0783 258862, 00-200-0783, 002000783
Product Details | TUBE COUPLING INVERTED NUT
4730-00-200-0783 An externally threaded fastening device which has an internal or external seat, designed to mate with the seat of an internally threaded tube fitting for the purpose of securing the tube to the fitting to form a leakproof connection.
Part Alternates: 258862, 4730-00-200-0783, 00-200-0783, 4730002000783, 002000783
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-200-0783 | 03857 ( INVERTED NUT, TUBE COUPLING ) |
Drawings & Photos | NSN 4730-00-200-0783
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-200-0783
Related Products | NSN 4730-00-200-0783
Technical Data | NSN 4730-00-200-0783
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5628 |
| SURFACE TREATMENT | CADMIUM |
| STRENGTH RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| MATERIAL HARDNESS RATING | NOT RATED |
| FABRICATION METHOD | ANY ACCEPTABLE |

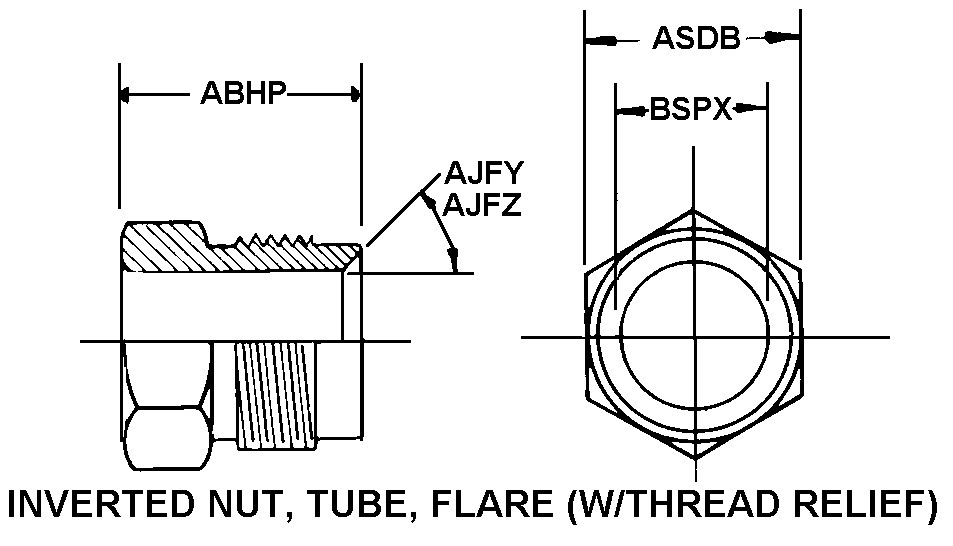

| STYLE DESIGNATOR | A2 INVERTED NUT, TUBE, FLARE |
| OVERALL LENGTH | 1.060 INCHES MINIMUM AND 1.080 INCHES MAXIMUM |
| SEAT RADIUS | ANY ACCEPTABLE |
| WIDTH ACROSS FLATS | 0.927 INCHES MINIMUM AND 0.939 INCHES MAXIMUM |
| SMALLEST INSIDE DIAMETER | 0.614 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| THREAD SIZE | 7/8-14 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD PITCH DIAMETERS | 0.8145 TO 0.8186 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | DRILLED FOR LOCKWIRE |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 258862 |
