NSN 4730-00-197-1656 FC24200, 7776, 8552
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-197-1656 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: FC24200, 7776, 8552, 0006152359, 000615-2359, 077600, 0777600, 107801, 24200, 4688178, 468-8178 , 4730-00-197-1656, 00-197-1656, 4730001971656, 200715520, 001971656
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 JUN 1970 | 00-197-1656 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

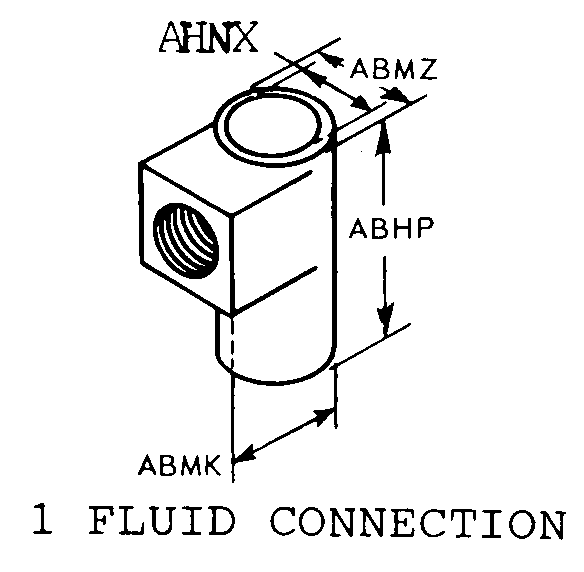

Drawings & Photos | NSN 4730-00-197-1656
Demand History | NSN 4730-00-197-1656
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0777600 | 2021-08-243 | 192 | DIBBS |
| 8552 | 2021-08-243 | 192 | DIBBS |
| 0777600 | 2021-08-228 | 365 | DIBBS |
| 8552 | 2021-08-228 | 365 | DIBBS |
| 107801 | 2016-06-175 | 1 | US |
| 4730-00-197-1656 | 2015-07-197 | 490 | DIBBS |
| 4730-00-197-1656 | 2015-07-186 | 490 | DIBBS |
| 4730-00-197-1656 | 2015-02-51 | 1759 | DIBBS |
| 4730-00-197-1656 | 2015-02-40 | 1759 | DIBBS |
| 4730-00-197-1656 | 2015-01-29 | 1759 | DIBBS |
| 4730-00-197-1656 | 2014-01-26 | 893 | DIBBS |
| 4730-00-197-1656 | 2013-10-296 | 944 | DIBBS |
| 4730-00-197-1656 | 2013-04-93 | 853 | DIBBS |
| 4730-00-197-1656 | 2013-01-31 | 828 | DIBBS |
| 4730-00-197-1656 | 2012-01-23 | 194 | DIBBS |
| 4730-00-197-1656 | 2011-09-256 | 581 | DIBBS |
| 4730-00-197-1656 | 2011-07-211 | 820 | DIBBS |
Cross Reference | NSN 4730-00-197-1656
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000615-2359 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
| 000615-2359 | 66654 | TVH PARTS CO. |
| 077600 | 1TUY2 | TITAN DISTRIBUTION INC DBA TITAN TIRE |
| 0777600 | 1TUY2 | TITAN DISTRIBUTION INC DBA TITAN TIRE |
| 107801 | 12603 | CLARK EQUIPMENT CO |
| 107801 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| 200715520 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 24200 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| 24200 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 7776 | 94189 | DICO INC SUB OF DYNEER CORP |
| 8552 | 0W357 | PDI GROUND SUPPORT SYSTEMS, INC. |
| FC24200 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-197-1656
Related Products | NSN 4730-00-197-1656
Technical Data | NSN 4730-00-197-1656
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | D14 1 FLUID CONNECTION |
| OVERALL LENGTH | 1.125 INCHES MINIMUM AND 1.165 INCHES MAXIMUM |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| DIAMETER | 0.625 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.359 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | E2 INVERTED FLARE |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/16 IN.OD TUBE SIZE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 3/8 IN.-24 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 37.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
| III END ITEM IDENTIFICATION | GRUMMAN AEROSPACE A-10 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4730-00-197-1656
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
