NSN 4730-00-196-1468 MS5195397, MS51953-97, A23030521PC16
Product Details | PIPE NIPPLE
4730-00-196-1468 A straight one-piece metallic pipe 12 inches(304 MM)or less in length having external threads of the same size on both ends. It may have a center section which is externally shaped to accommodate a wrench. For pipe having internal threads 12 inches(304 MM)or less in length see coupling,pipe. For pipe in excess of 12 inches(304 MM)see pipe as modified.
Part Alternates: MS5195397, MS51953-97, A23030521PC16, A2303-05-21PC16, A733S97CFG, A733S-97CFG, ASTM A733, ASTMA733, WWN351, 403-00084-1, 4549K591, 003248, 05840, 100350, 100-350, 100772, 1373, 1503FZZ0003, 1503FZZ000-3, 192470, 3322345420, 332-2345-420, 49Y11914B, 49Y-11914-B, 5054000, 5054-000, 5911A6, 6250092, 625-0092, 6KP52, 90504909, 905-04909, 905-0490-9, 4730-00-196-1468, 00-196-1468, 4730001961468, 001961468, 403000841
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-196-1468 | 03782 ( NIPPLE, PIPE ) |

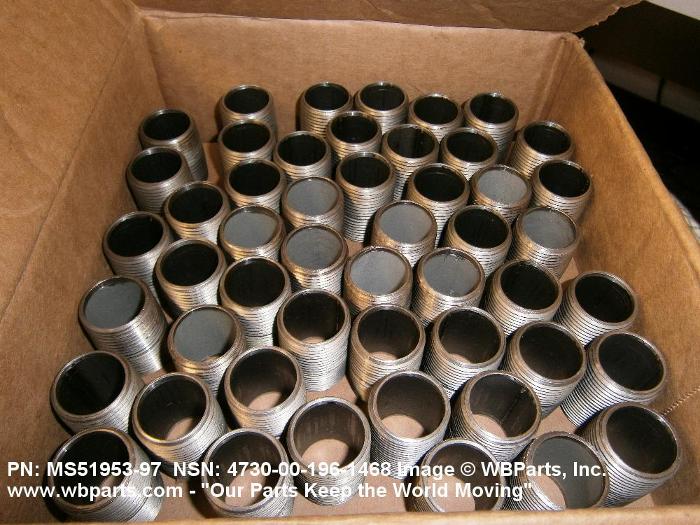

Drawings & Photos | NSN 4730-00-196-1468
Demand History | NSN 4730-00-196-1468
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS5195397 | 2024-10-289 | 423 | Japan |
| 4730-00-196-1468 | 2023-06-163 | 16 | US |
| 1373 | 2023-03-82 | 1 | Malaysia |
| 4730-00-196-1468 | 2020-02-55 | 49 | TW |
| 4730-00-196-1468 | 2019-12-346 | 2 | US |
| 4730-00-196-1468 | 2019-12-346 | 2 | MANUAL |
| MS51953-97 | 2019-12-346 | 2 | US |
| 4730-00-196-1468 | 2019-12-339 | 2 | US |
| 4730-00-196-1468 | 2015-08-235 | 5 | Pakistan |
| 1373 | 2015-08-229 | 1 | |
| 4730-00-196-1468 | 2014-07-187 | 2303 | DIBBS |
| 4730-00-196-1468 | 2014-05-131 | 2001 | DIBBS |
| 4730-00-196-1468 | 2014-03-84 | 1464 | DIBBS |
| 4730-00-196-1468 | 2013-11-315 | 4 | United States |
| 4730-00-196-1468 | 2012-02-52 | 100 | Greece |
| 100772 | 2011-05-132 | 1 | United States |
| 4730-00-196-1468 | 2009-08-239 | 1 | us |
Cross Reference | NSN 4730-00-196-1468
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 003248 | 05415 | LINDE LIFT TRUCK CORP. |
| 003248 | 556A6 | LINDE MATERIAL HANDLING NORTH AMERICA CORP |
| 05840 | 96046 | CRANE PUMPS & SYSTEMS, INC. |
| 100-350 | 25980 | GRACO INC. |
| 100772 | 10237 | CADILLAC GAGE TEXTRON INC. |
| 1373 | 20722 | THE ENTWISTLE COMPANY |
| 1503FZZ000-3 | 15277 | GENERAL STEEL TANK CO |
| 192470 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 192470 | 24617 | GENERAL MOTORS CORP |
| 332-2345-420 | 80996 | ITT GRINNELL CORP |
| 403-00084-1 | 59556 | KOVATCH CORP. |
| 4549K591 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| 4730001961468 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 49Y-11914-B | 05415 | LINDE LIFT TRUCK CORP. |
| 5054-000 | 61796 | CEMEN TECH, INC. |
| 5911A6 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 625-0092 | 78385 | MEGGITT (TROY), INC. DIV MEGGITT PLC |
| 6KP52 | 45152 | OSHKOSH CORPORATION |
| 905-0490-9 | 26289 | GREENLEE TEXTRON INC. |
| 905-04909 | 29293 | ADVANCE MFG.CO., INC. DBA ADVANCED HYDRAULICS |
| A2303-05-21PC16 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| A733S-97CFG | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ASTM A733 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| MS51953-97 | 10237 | CADILLAC GAGE TEXTRON INC. |
| MS51953-97 | 15277 | GENERAL STEEL TANK CO |
| MS51953-97 | 25980 | GRACO INC. |
| MS51953-97 | 51744 | BETA FLUID SYSTEMS INC. |
| MS51953-97 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| MS51953-97 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| WWN351 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-196-1468
Technical Data | NSN 4730-00-196-1468
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A120 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A120,(GALVANIZED) ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | FLUID 1ST RESPONSE AIR 2ND RESPONSE |
| STYLE DESIGNATOR | A50 CLOSE |
| CONNECTION TYPE | THREADED EXTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B67B PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| LEG LENGTH | 0.688 INCHES MAXIMUM ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.375 INCHES |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| SPECIFICATION/STANDARD DATA | 81346-ASTM A733 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 96906-MS51953 GOVERNMENT STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51953-97 |
Restrictions/Controls & Freight Information | NSN 4730-00-196-1468
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
