NSN 4730-00-192-7558 21233, 00-192-7558, 001927558
Product Details | FLUID PASSAGE BOLT
4730-00-192-7558 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 21233, 4730-00-192-7558, 00-192-7558, 4730001927558, 001927558
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 MAR 1973 | 00-192-7558 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-00-192-7558
Demand History | NSN 4730-00-192-7558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 21233 | 2023-11-332 | 6 | DIBBS |
| 21233 | 2023-08-215 | 5 | DIBBS |
| 21233 | 2023-04-107 | 5 | DIBBS |
| 21233 | 2023-04-96 | 5 | DIBBS |
| 21233 | 2022-09-254 | 5 | DIBBS |
| 4730-00-192-7558 | 2017-08-227 | 11 | DIBBS |
| 4730-00-192-7558 | 2017-05-136 | 8 | DIBBS |
| 4730-00-192-7558 | 2015-11-316 | 7 | DIBBS |
| 4730-00-192-7558 | 2015-11-308 | 7 | DIBBS |
| 4730-00-192-7558 | 2013-06-178 | 14 | DIBBS |
| 4730-00-192-7558 | 2013-06-170 | 14 | DIBBS |
| 4730-00-192-7558 | 2012-11-330 | 1 | DIBBS |
| 4730-00-192-7558 | 2012-11-310 | 11 | DIBBS |
| 4730-00-192-7558 | 2012-10-295 | 11 | DIBBS |
| 4730-00-192-7558 | 2012-09-267 | 25 | DIBBS |
| 4730-00-192-7558 | 2012-09-257 | 4 | DIBBS |
| 4730-00-192-7558 | 2012-09-257 | 2 | DIBBS |
| 4730-00-192-7558 | 2012-09-246 | 2 | DIBBS |
| 4730-00-192-7558 | 2012-08-243 | 4 | DIBBS |
| 4730-00-192-7558 | 2012-06-181 | 2 | DIBBS |
| 4730-00-192-7558 | 2012-06-166 | 2 | DIBBS |
| 4730-00-192-7558 | 2012-05-150 | 2 | DIBBS |
| 4730-00-192-7558 | 2012-05-135 | 2 | DIBBS |
| 4730-00-192-7558 | 2012-03-85 | 4 | DIBBS |
Cross Reference | NSN 4730-00-192-7558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21233 | 16780 | EATON AEROSPACE LLC DBA SOLENOID VALVES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-192-7558
Technical Data | NSN 4730-00-192-7558
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |

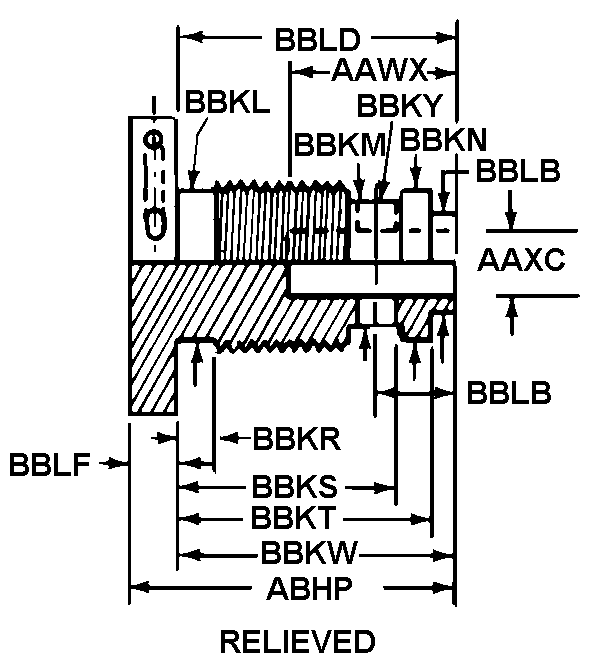

| BODY STYLE | 19 RELIEVED |
| CONCENTRIC HOLE DEPTH | 0.460 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.202 INCHES NOMINAL |
| OVERALL LENGTH | 1.082 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.478 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.375 INCHES NOMINAL |
| THIRD DIAMETER FROM WRENCHING FEATURE | 0.490 INCHES NOMINAL |
| FOURTH DIAMETER FROM WRENCHING FEATURE | 0.373 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.110 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 0.750 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF THIRD DIAMETER | 0.810 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FOURTH DIAMETER | 0.932 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.035 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.285 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 0.932 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.157 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.562 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 18 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.205 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | DRILLED FOR SAFETY WIRE |
Restrictions/Controls & Freight Information | NSN 4730-00-192-7558
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-192-7558
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
