NSN 4730-00-187-7594 MS392331B, MS39233-1B, B16-3
Product Details | PIPE COUPLING
4730-00-187-7594 A straight fitting 12 inches (304 mm) long or under having the same or different type pipe connection of the same size on both ends. It is designed to join a pipe or pipe fitting to another pipe or pipe fitting. Excludes fittings with threaded external connections on both ends. See also NIPPLE, PIPE.
Part Alternates: MS392331B, MS39233-1B, B16-3, WWP521, B163, 12001, 4730-00-187-7594, 00-187-7594, 4730001877594, 001877594
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-187-7594 | 06076 ( COUPLING, PIPE ) |
Drawings & Photos | NSN 4730-00-187-7594
Demand History | NSN 4730-00-187-7594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12001 | 2018-01-07 | 5 | United States |
| 4730-00-187-7594 | 2013-03-77 | 864 | DIBBS |
| B163 | 2012-10-297 | 12 | United States |
Cross Reference | NSN 4730-00-187-7594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12001 | 70142 | AEROIL PRODUCTS CO INC |
| 4730001877594 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| ASME B16.3 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| MS39233-1B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| WWP521 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-187-7594
Technical Data | NSN 4730-00-187-7594
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A197 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| MEDIA FOR WHICH DESIGNED | STEAM 1ST RESPONSE WATER-OIL-GAS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 500.0 DEG FAHRENHEIT 1ST RESPONSE 138.0 DEG FAHRENHEIT 2ND RESPONSE |

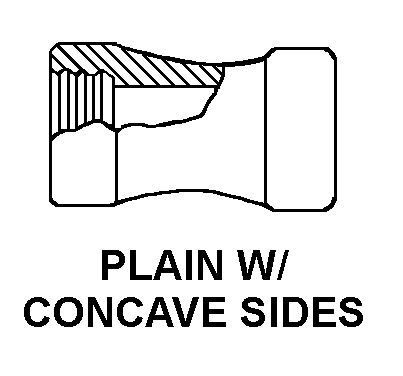

| STYLE DESIGNATOR | A7 PLAIN W/CONCAVE SIDES |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B14A PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.125 INCHES ALL ENDS |
| NOMINAL OVERALL LENGTH | 0.960 INCHES |
| SPECIAL FEATURES | GRUMMAN AEROSPACE; A10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 96906-MS39233 GOVERNMENT STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| MANUFACTURERS CODE | 80204 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | B16-3 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS39233-1B |
Restrictions/Controls & Freight Information | NSN 4730-00-187-7594
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
