Product Details | PIPE TO TUBE STRAIGHT ADAPTER
4730-00-187-0840 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.
Part Alternates: A37A31, AN8164, AN816-4, AS4842, AS4842/1, AS48421, AS5194, AS51940402, AS5194-0402, C09904005, C09904-005, C5205X4, MILF5509, MIL-F-5509, J514, 476 686, 476686, 6210851, 705B3, 7324013, 73241, 817443, 86118781, 8611878-1, 10581604, 105-81604, 133533, 1433512381, 1433-512381, 145451093239, 145-4510932-39, 1628A89677, 163D114, 1755819, 202124S, 2021-2-4S, 218441, 218-441, 22P40562, 22P4056-2, 24044, 2404-4, 31051, 4-2 070102C, 42070102C, 4372, 4-37-2, 4730-00-187-0840, 00-187-0840, 4730001870840, 001870840
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-187-0840 | 03776 ( ADAPTER, STRAIGHT, PIPE TO TUBE ) |

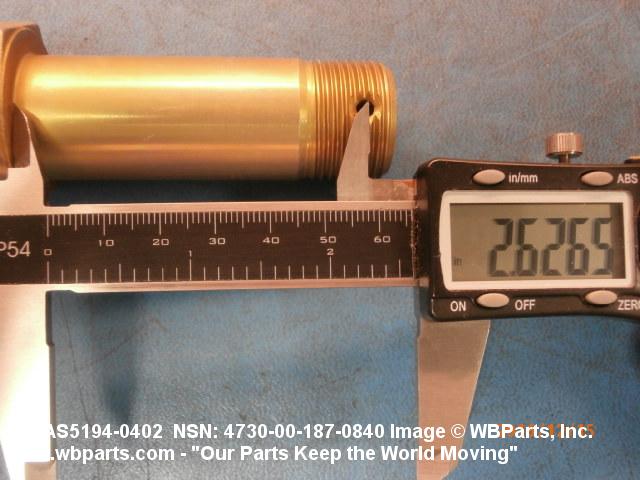

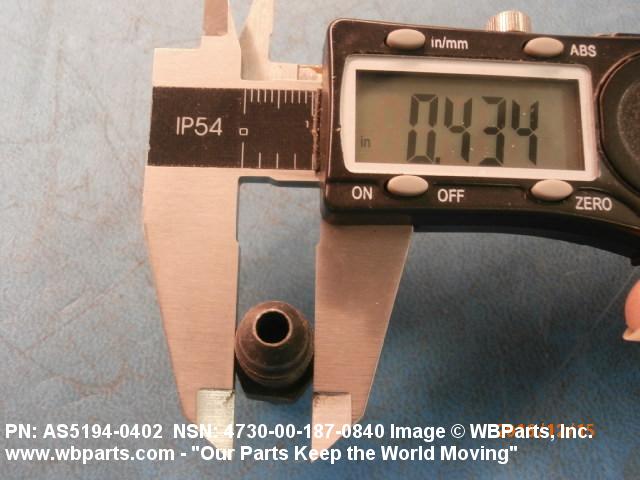

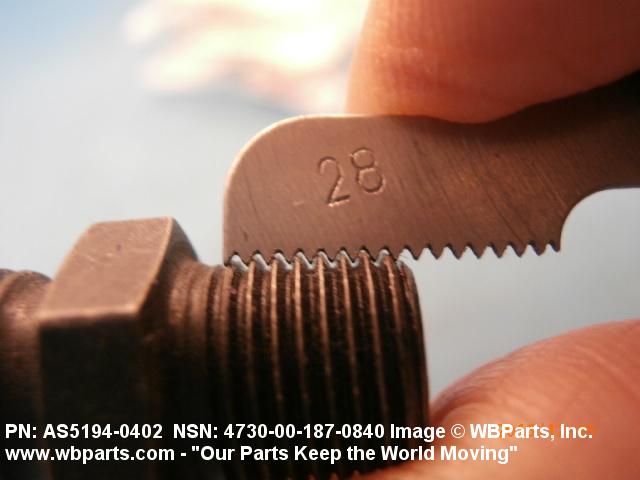

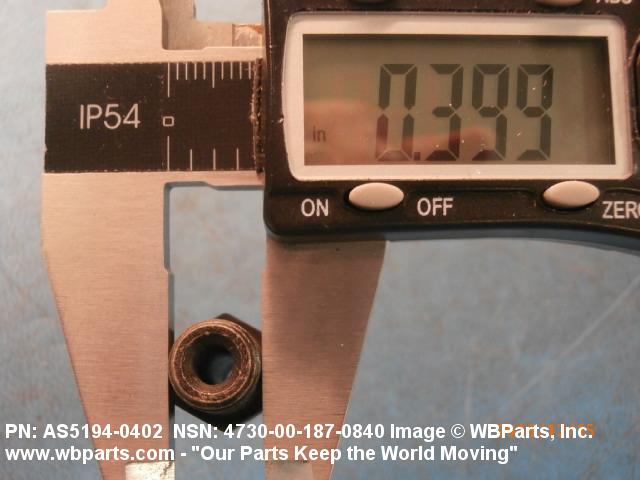

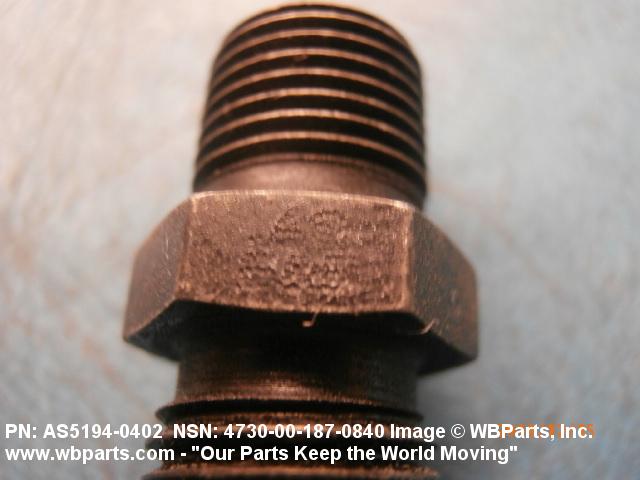

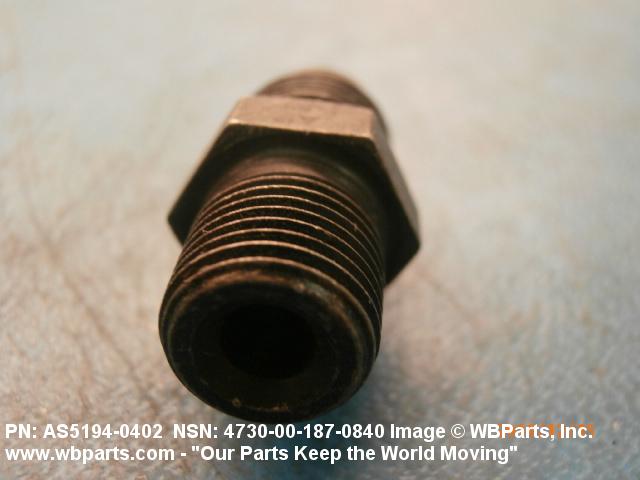

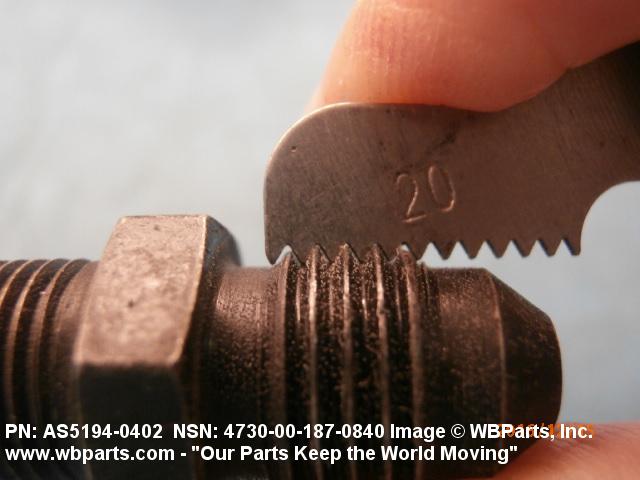

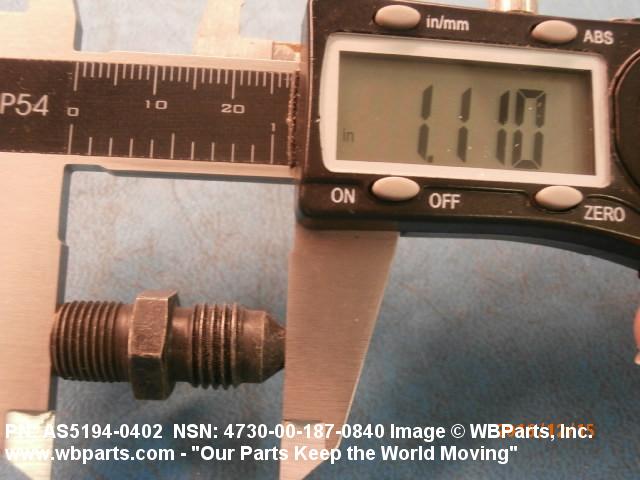

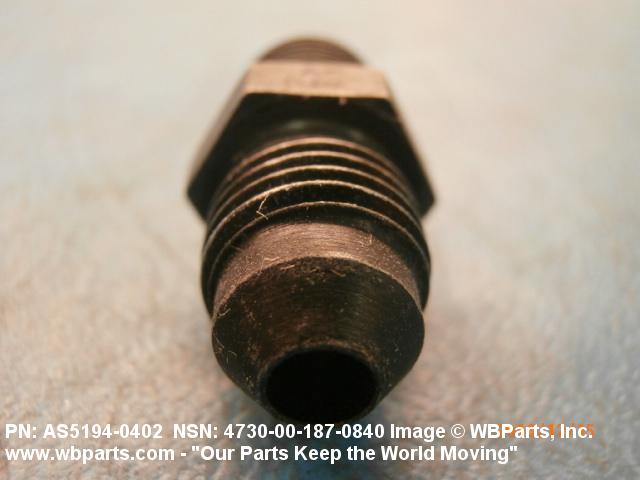

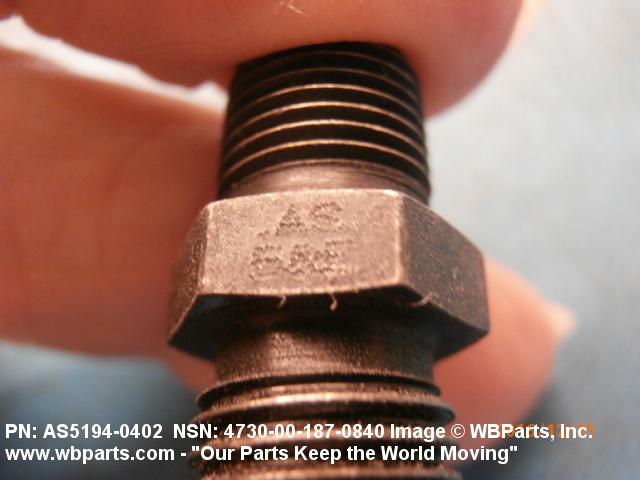

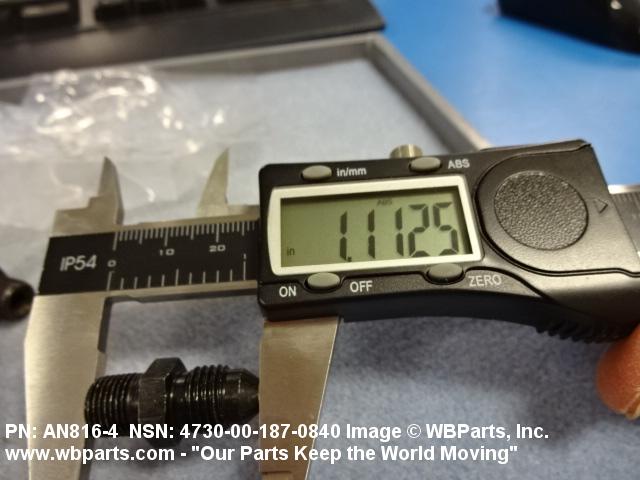

Drawings & Photos | NSN 4730-00-187-0840
Demand History | NSN 4730-00-187-0840
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-187-0840 | 2022-12-16 | 5 | United States |
| 4730-00-187-0840 | 2020-09-11 | 90 | Taiwan |
| 4730-00-187-0840 | 2020-06-30 | 90 | MANUAL |
| AN816-4 | 2018-11-20 | 2 | |
| MILF5509 | 2018-07-20 | 6 | United States |
| AS51940402 | 2016-12-09 | 1 | United States |
| AN8164 | 2016-08-10 | 24 | United States |
| AS48421 | 2015-05-12 | 1 | CA |
| J514 | 2015-02-17 | 1 | us |
| AS51940402 | 2013-11-27 | 2 | United States |
| AS51940402 | 2013-11-25 | 2 | United States |
| 4372 | 2013-08-02 | 2 | US |
| AS51940402 | 2011-10-13 | 30 | US |
| AN8164 | 2011-08-04 | 0 | US |
| AS51940402 | 2011-08-04 | 3 | US |
| 4730-00-187-0840 | 2011-08-01 | 3728 | DIBBS |
| 4730-00-187-0840 | 2011-07-13 | 515 | DIBBS |
| 4730-00-187-0840 | 2011-06-15 | 2186 | DIBBS |
| 4730-00-187-0840 | 2011-05-26 | 2097 | DIBBS |
| 4730-00-187-0840 | 2010-10-08 | 1469 | DIBBS |
| 4730-00-187-0840 | 2010-09-16 | 472 | DIBBS |
| 4730-00-187-0840 | 2010-07-03 | 2847 | DIBBS |
| J514 | 2010-02-16 | 20 | us |
| 4730-00-187-0840 | 2010-01-07 | 39 | DIBBS |
| MILF5509 | 2009-10-28 | 1 | PK |
| MILF5509 | 2009-02-24 | 100 | US |
| AN8164 | 2008-07-18 | 10 | US |
| 4730-00-187-0840 | 2008-07-18 | 10 | US |
Cross Reference | NSN 4730-00-187-0840
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105-81604 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| 105-81604 | 79470 | DANA CORP WEATHERHEAD DIV |
| 133533 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 133533 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 1433-512381 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 145-4510932-39 | 51563 | ROHR, INC DBA GOODRICH AEROSTRUCTURES GROUP |
| 1628A89677 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 163D114 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| 1755819 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2021-2-4S | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 218-441 | 10998 | CASE MFG CO |
| 22P4056-2 | 86733 | COLUMBIA MAGNETICS A DIV OF COLUMBIA BROADCASTING SYSTEM INC |
| 2404-4 | 22031 | AIR-WAY MANUFACTURING COMPANY |
| 31051 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 4-2 070102C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 4-37-2 | 59257 | L AND L FITTINGS MFG |
| 476 686 | 77294 | PIPER AIRCRAFT INC. |
| 6210851 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 6210851 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 705B3 | 05415 | LINDE LIFT TRUCK CORP. |
| 7324013 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 73241 | 01359 | FAIRCHILD CONTROLS CORPORATION |
| 817443 | 02280 | AMERICAN HOIST AND DERRICK CO |
| 8611878-1 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| A37A31 | 58588 | SURFACE COMBUSTION, INC. |
| AN816-4 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN816-4 | 14397 | FABER ENTERPRISES, INC. |
| AN816-4 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN816-4 | 17341 | TECH AERO INC |
| AN816-4 | 22995 | CROWN FITTING CO INC |
| AN816-4 | 34724 | ACRA AEROSPACE INC |
| AN816-4 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| AN816-4 | 50948 | PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN |
| AN816-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5194 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5194-0402 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| C09904-005 | 59885 | ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY |
| C5205X4 | 79470 | DANA CORP WEATHERHEAD DIV |
| J514 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-187-0840
Related Products | NSN 4730-00-187-0840
4730-00-187-0842, 4730-00-187-0843, 4730-00-187-0844, 4730-00-187-0845, 4730-00-187-0846
Technical Data | NSN 4730-00-187-0840
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | J514 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 400.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END ANPT 2ND END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.125 INCHES 2ND END |
| THREAD CLASS | 2A 1ST END |
| NOMINAL OVERALL LENGTH | 1.220 INCHES |
| SPECIFICATION/STANDARD DATA | 81343-AS4842/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 88044-AN816 GOVERNMENT STANDARD AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 2A FIGURE |
| III END ITEM IDENTIFICATION | 36F MISSILE, AIR LAUNCH CRUISE (ALCM) AGM-86B |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN816-4 |
Restrictions/Controls & Freight Information | NSN 4730-00-187-0840
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
