NSN 4730-00-186-9996 AN8374D, AN837-4D, AN9224D

Product Details | TUBE ELBOW

4730-00-186-9996 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: AN8374D, AN837-4D, AN9224D, AN922-4D, AS1040 , AS1040D0404, AS4841 , 3111252, 7610260, 946.22.65.503, 9462265503, 4730-00-186-9996, 00-186-9996, 4730001869996, 001869996

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-186-9996	03771 ( ELBOW, TUBE )

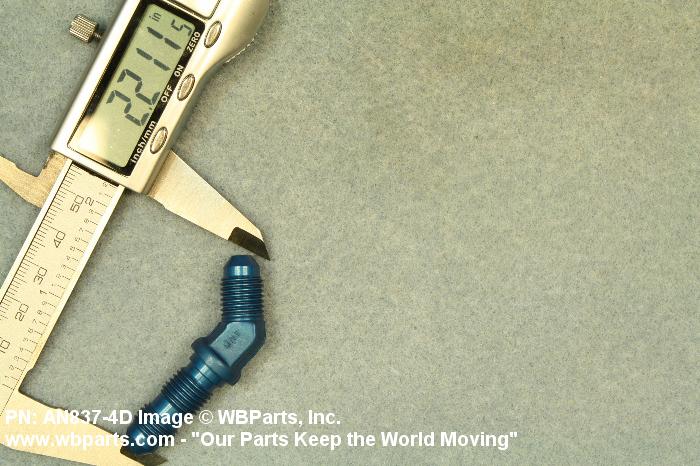

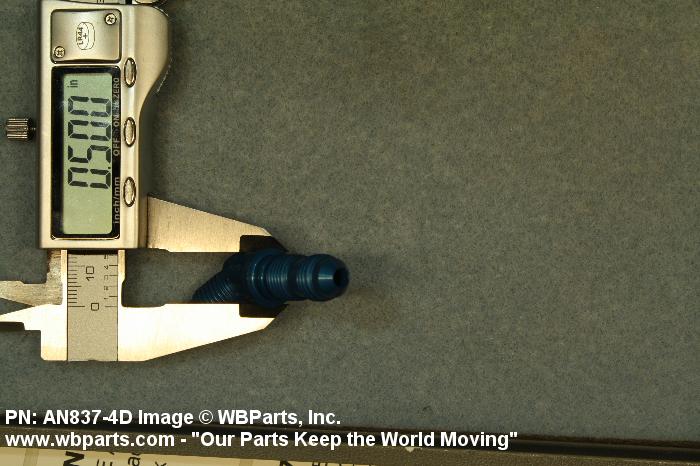

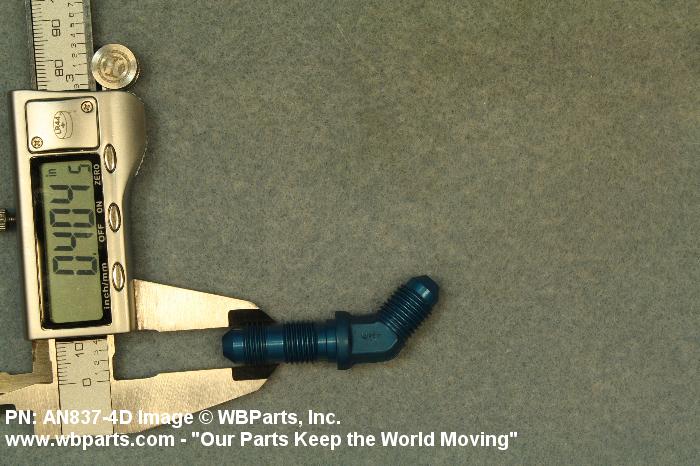

Drawings & Photos | NSN 4730-00-186-9996

Part Number	Request Date	QTY	Origin
4730-00-186-9996	2024-10-277	917	DIBBS
4730-00-186-9996	2023-08-236	116	DIBBS
4730-00-186-9996	2022-11-318	366	DIBBS
4730-00-186-9996	2021-08-225	519	DIBBS
4730-00-186-9996	2021-08-214	519	DIBBS
AS1040D0404	2021-06-172	5	MY
4730-00-186-9996	2021-06-166	5	MY
4730-00-186-9996	2021-04-97	330	DIBBS
4730-00-186-9996	2018-07-192	91	DIBBS
AN8374D	2018-02-40	5	United States
AN8374D	2017-03-81	20	South Africa
4730-00-186-9996	2017-03-65	604	DIBBS
4730-00-186-9996	2017-02-40	1	DIBBS-RFPs
AN8374D	2017-01-13	10	South Africa
4730-00-186-9996	2016-08-228	359	DIBBS
4730-00-186-9996	2016-05-140	338	DIBBS
AN8374D	2016-05-131	3	Egypt
4730-00-186-9996	2015-11-312	195	DIBBS
AS4841	2011-03-69	8
4730-00-186-9996	2011-03-61	1	US
4730-00-186-9996	2010-01-13	552	DIBBS
4730-00-186-9996	2010-01-13	1022	DIBBS
4730-00-186-9996	2009-05-147	1	US
4730-00-186-9996	2009-03-61	837	DIBBS
AN8374D	2008-07-185	4	Sri Lanka

Cross Reference | NSN 4730-00-186-9996

Part Number	Cage Code	Manufacturer
3111252	001JK	EMBRAER S/A
3111252	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
7610260	11599	TRIUMPH ENGINE CONTROL SYSTEMS, LLC
7610260	19200	US ARMY ARDEC RDECOM
7610260	3M833	TRANSUPPORT INC
7610260	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
7610260	C0297	GOODRICH CONTROL SYSTEMS GMBH
946.22.65.503	S4080	PILATUS AIRCRAFT LTD
AN837-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN8374D	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
AN922-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS1040	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS1040D0404	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-186-9996

Compare

Related Products | NSN 4730-00-186-9996

4730-00-186-9997, 4730-00-186-9998, 4730-00-186-9999, 4730-00-187-0000, 4730-00-187-0085

Technical Data | NSN 4730-00-186-9996

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE	B64 FLARED ALL ENDS
SEAT ANGLE	37.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNJF ALL ENDS UNJF 1ST END BULKHEAD
NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS 0.438 INCHES 1ST END BULKHEAD
THREAD CLASS	3A ALL ENDS 3A 1ST END BULKHEAD
LEG LENGTH	1.531 INCHES NOMINAL 1ST END 0.703 INCHES NOMINAL 2ND END
FLOW ANGLE	45.0 DEGREES
SPECIFICATION/STANDARD DATA	88044-AN837 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	AIRCRAFT APPLICATION
