NSN 4730-00-186-9951 MS2082268P, MS20822-6-8P , MS208234D
Product Details | PIPE TO TUBE ELBOW
4730-00-186-9951 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS2082268P, MS20822-6-8P , MS208234D, MS20823-4D, AN8234D, AN823-4D, AS4842/1, AS48421, AS5196, AS5196W0402, ER8234D, ER823-4D, ER823D04, US10964D, US1096-4D, Z00.N7730061759, Z00N7730061759, 73504, 7350-4, 7350X4, 7610256, 82007, 85072, 982304, 1029623, 10-29623, 203682, 2137114D, 213711-4D, 2721039P9, 272-1039P9, 38002, 38A02, 458 891, 458891, 4730-00-186-9951, 00-186-9951, 4730001869951, 001869951
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-186-9951 | 03770 ( ELBOW, PIPE TO TUBE ) |

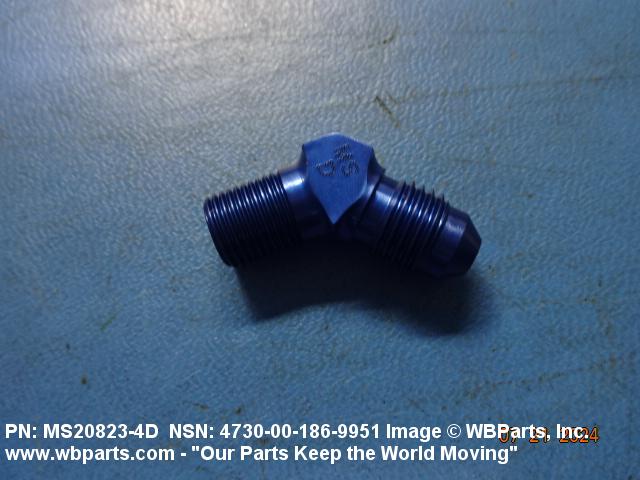

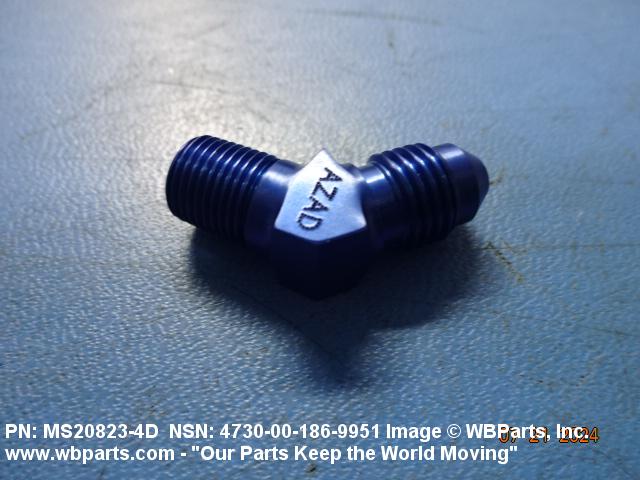

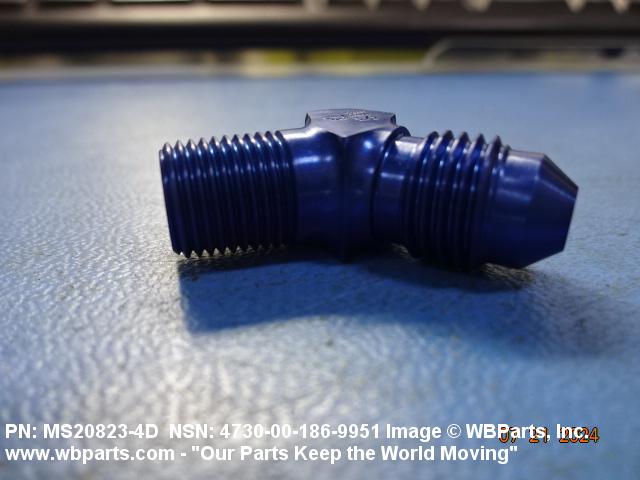

Drawings & Photos | NSN 4730-00-186-9951
Demand History | NSN 4730-00-186-9951
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8234D | 2024-09-263 | 40 | United States |
| AN8234D | 2024-09-263 | 40 | United States |
| AN8234D | 2024-09-254 | 50 | United States |
| MS208234D | 2024-06-164 | 50 | United States |
| MS208234D | 2024-04-110 | 40 | United States |
| MS208234D | 2024-04-110 | 40 | United States |
| MS208234D | 2023-12-354 | 60 | United States |
| MS208234D | 2023-12-352 | 214 | United States |
| MS208234D | 2023-12-352 | 30 | United States |
| MS208234D | 2023-12-348 | 214 | United States |
| MS208234D | 2023-09-249 | 60 | United States |
| MS208234D | 2022-05-151 | 4 | United States |
| 4730-00-186-9951 | 2021-08-229 | 70 | Malaysia |
| 4730-00-186-9951 | 2019-06-170 | 242 | DIBBS |
| 4730-00-186-9951 | 2019-02-43 | 2 | United States |
| MS208234D | 2018-07-191 | 100 | US |
| AS48421 | 2015-05-132 | 1 | CA |
| 4730-00-186-9951 | 2013-11-326 | 260 | DIBBS |
| 4730-00-186-9951 | 2013-09-262 | 283 | DIBBS |
| AS5196W0402 | 2012-02-37 | 18 | United States |
| MS208234D | 2012-02-37 | 18 | United States |
| MS208234D | 2012-02-37 | 54 | United States |
| AN823-4D | 2011-05-124 | 5 | United States |
| 4730-00-186-9951 | 2010-07-195 | 191 | DIBBS |
| MS208234D | 2009-06-157 | 50 | Saudi Arabia |
| 4730-00-186-9951 | 2008-12-339 | 43 | DIBBS |
| 4730-00-186-9951 | 2008-11-316 | 124 | DIBBS |
| AN8234D | 2006-06-156 | 6 | US |
Cross Reference | NSN 4730-00-186-9951
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-29623 | 59501 | UNISON INDUSTRIES, LLC |
| 10-29623 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 203682 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 203682 | 16004 | DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC |
| 213711-4D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 272-1039P9 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 38002 | 58588 | SURFACE COMBUSTION, INC. |
| 38A02 | 58588 | SURFACE COMBUSTION, INC. |
| 458 891 | 77294 | PIPER AIRCRAFT INC. |
| 7350-4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 7350-4 | 79477 | WEAVER W R CO DIV OF OLIN CORP |
| 7350X4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 7610256 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 82007 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 82007 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 82007 | R1120 | SATAIR A/S |
| 85072 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 85072 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 85072 | R1120 | SATAIR A/S |
| 982304 | 65023 | EARLS SUPPLY CO |
| AN823-4D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5196 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5196W0402 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ER823-4D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| ER823-4D | 79470 | DANA CORP WEATHERHEAD DIV |
| ER823D04 | 79470 | DANA CORP WEATHERHEAD DIV |
| MS20823-4D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| US1096-4D | 50808 | UNITED SUPPLY CO INC |
| Z00.N7730061759 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-186-9951
Related Products | NSN 4730-00-186-9951
Technical Data | NSN 4730-00-186-9951
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END NPT 2ND END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.125 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END |
| LEG LENGTH | 0.703 INCHES NOMINAL 1ST END 0.625 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 96906-MS20823 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | AIRCRAFT APPLICATION |
Restrictions/Controls & Freight Information | NSN 4730-00-186-9951
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
