NSN 4730-00-186-7784 AN9112D, AN911-2D, AS4842
Product Details | PIPE NIPPLE
4730-00-186-7784 A straight one-piece metallic pipe 12 inches(304 MM)or less in length having external threads of the same size on both ends. It may have a center section which is externally shaped to accommodate a wrench. For pipe having internal threads 12 inches(304 MM)or less in length see coupling,pipe. For pipe in excess of 12 inches(304 MM)see pipe as modified.
Part Alternates: AN9112D, AN911-2D, AS4842, AS4860, AS4860W02, 13299, 2137012D, 213701-2D, 3152614, 3152-6-1-4, 8161816, 895D91, 9112D, 911-2D, 4730-00-186-7784, 00-186-7784, 4730001867784, 001867784
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-186-7784 | 03782 ( NIPPLE, PIPE ) |

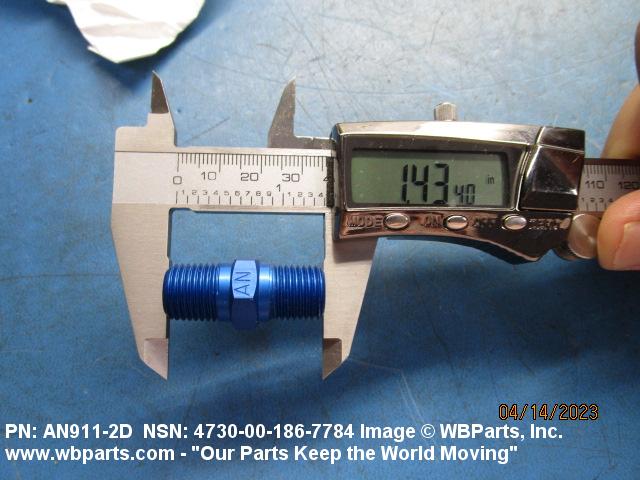

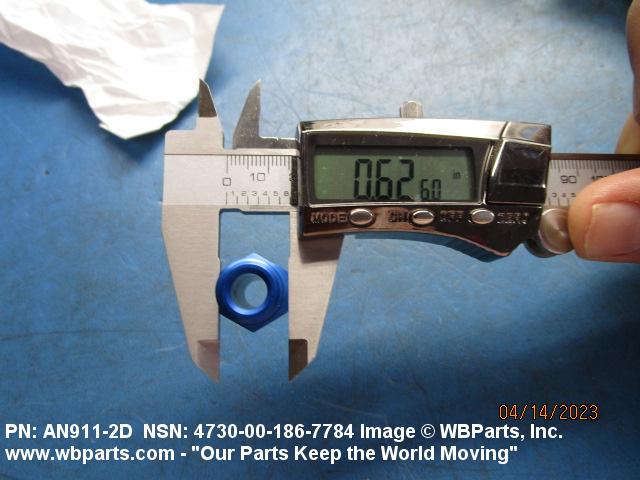

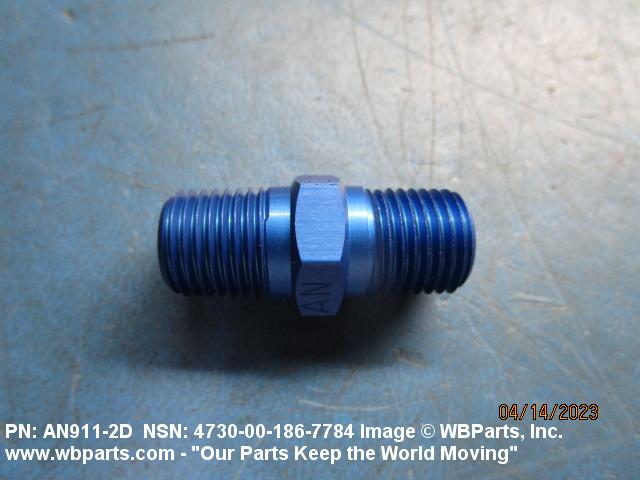

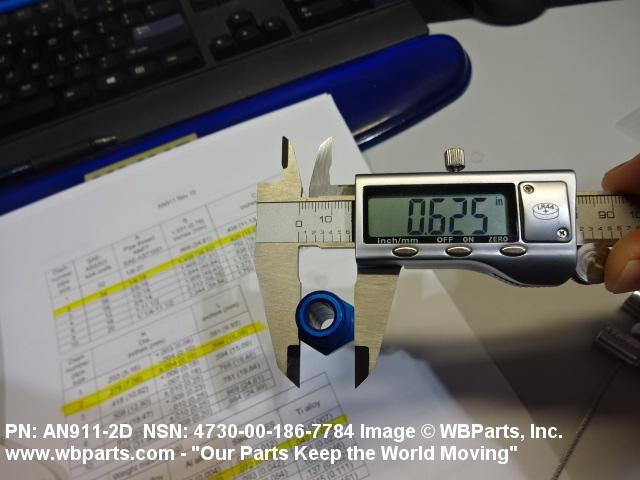

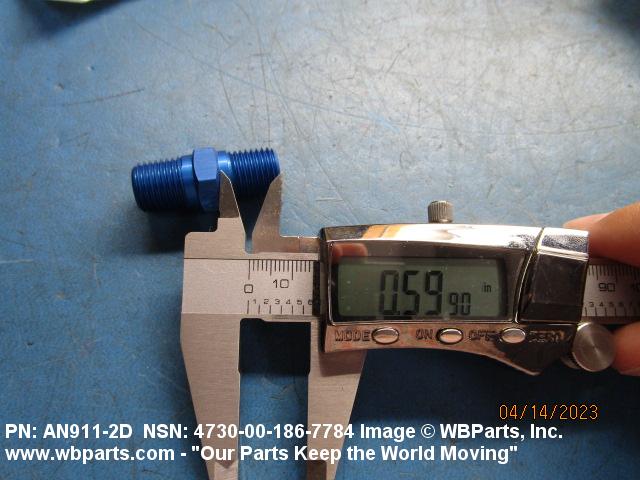

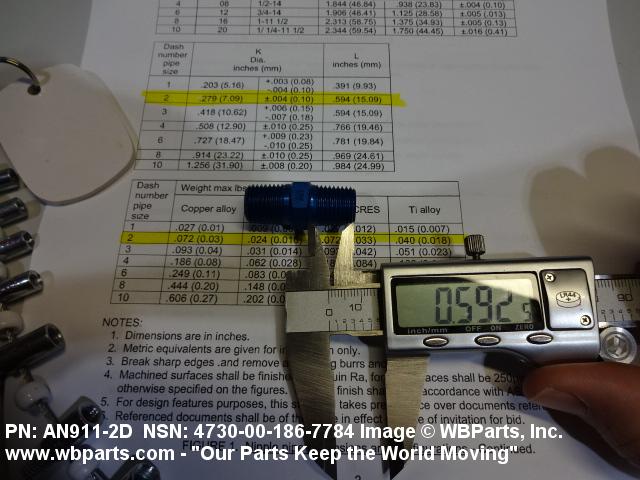

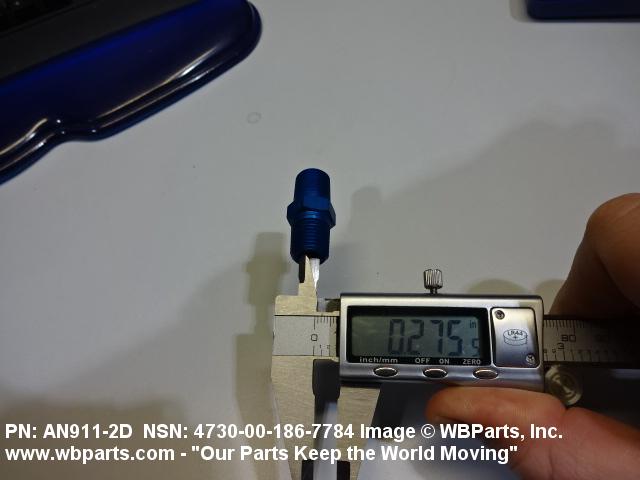

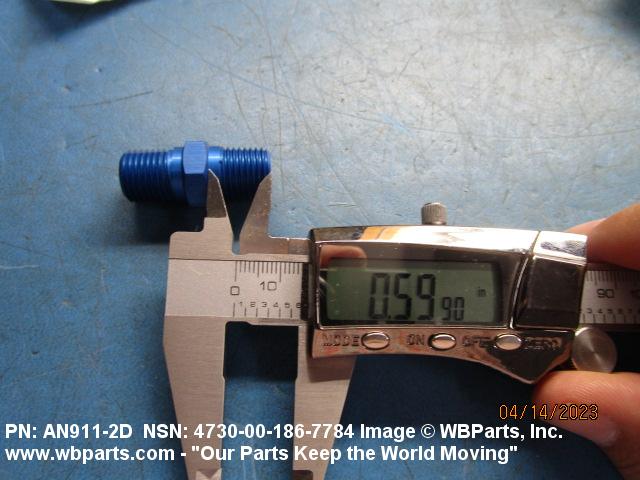

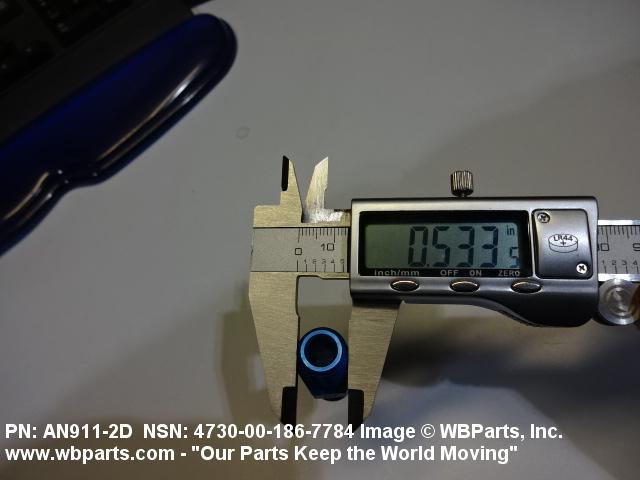

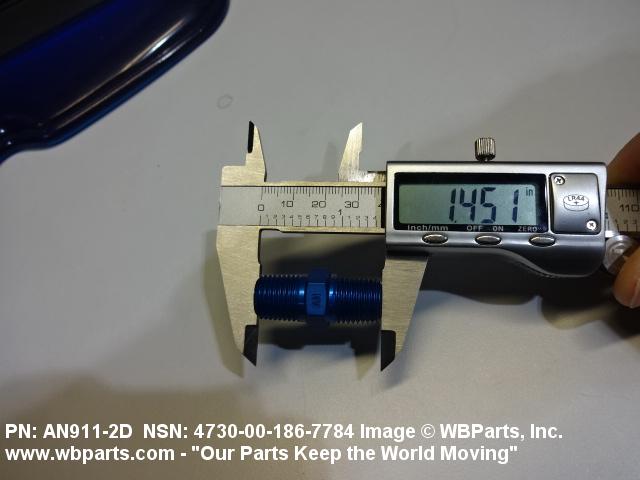

Drawings & Photos | NSN 4730-00-186-7784
Demand History | NSN 4730-00-186-7784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9112D | 2024-05-152 | 48 | United States |
| AN9112D | 2024-04-101 | 48 | United States |
| AN9112D | 2023-06-178 | 48 | United States |
| AN9112D | 2022-12-348 | 36 | United States |
| AN9112D | 2022-11-320 | 36 | United States |
| 4730-00-186-7784 | 2021-01-07 | 905 | DIBBS |
| 4730-00-186-7784 | 2019-10-283 | 350 | DIBBS |
| 4730-00-186-7784 | 2018-08-215 | 1187 | DIBBS |
| 4730-00-186-7784 | 2018-08-213 | 8 | United States |
| 4730-00-186-7784 | 2018-07-203 | 1187 | DIBBS |
| 4730-00-186-7784 | 2014-06-181 | 185 | Spain |
| AN911-2D | 2014-06-157 | 50 | United States |
| 4730-00-186-7784 | 2011-07-201 | 50 | MANUAL |
| 4730-00-186-7784 | 2009-02-57 | 3252 | DIBBS |
Cross Reference | NSN 4730-00-186-7784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13299 | 70188 | FRANKLIN ENGINE CO INC |
| 213701-2D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 3152-6-1-4 | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 3152-6-1-4 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 3152-6-1-4 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 8161816 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 895D91 | 80049 | DEPARTMENT OF THE AIR FORCE |
| 911-2D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 911-2D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN911-2D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN911-2D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN911-2D | 14397 | FABER ENTERPRISES, INC. |
| AN911-2D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN911-2D | 22995 | CROWN FITTING CO INC |
| AN911-2D | 71563 | COLLINS ENGINEERING CORP |
| AN911-2D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN911-2D | R1120 | SATAIR A/S |
| AS4842 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4860 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4860W02 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-186-7784
Related Products | NSN 4730-00-186-7784
Technical Data | NSN 4730-00-186-7784
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| STYLE DESIGNATOR | A51 CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B67B PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | ANPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.438 INCHES |
| SPECIAL FEATURES | GRUMMAN AEROSPACE A-10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 88044-AN911 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN911-2D |
Restrictions/Controls & Freight Information | NSN 4730-00-186-7784
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-186-7784
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
