Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-176-9488 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 11639778, 4730-00-176-9488, 00-176-9488, 4730001769488, 001769488
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 OCT 1969 | 00-176-9488 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-176-9488
Demand History | NSN 4730-00-176-9488
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-176-9488 | 2017-09-257 | 60 | DIBBS |
| 4730-00-176-9488 | 2017-08-213 | 60 | DIBBS |
Cross Reference | NSN 4730-00-176-9488
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11639778 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-176-9488
Related Products | NSN 4730-00-176-9488
Technical Data | NSN 4730-00-176-9488

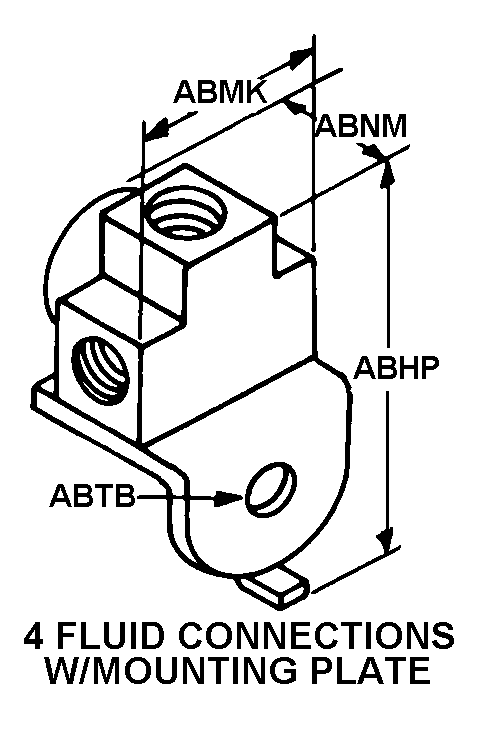

| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS, QQ-B-626, ALLOY 268 OR BRASS, QQ-B-626, COMP 11 OR BRASS, QQ-B-626, ALLOY 377 OR BRASS, QQ-B-626, ALLOY 360 OR STEEL, QQ-S-698 |
| SURFACE TREATMENT | ZINC OR CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
| STYLE DESIGNATOR | D34 4 FLUID CONNECTIONS W/MOUNTING PLATE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.820 INCHES NOMINAL |
| THICKNESS | 0.820 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.410 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| FLUID CONNECTION QUANTITY | 3 |
| CONNECTION STYLE | E5 PLAIN |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/16 IN. NOM PIPE SIZE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 3/8 IN-24 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
