NSN 4730-00-174-5990 40FH, 00-174-5990, 001745990
Product Details | TUBE CAP
4730-00-174-5990 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: 40FH, 4730-00-174-5990, 00-174-5990, 4730001745990, 001745990
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-174-5990 | 06074 ( CAP, TUBE ) |
Drawings & Photos | NSN 4730-00-174-5990
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-174-5990
Technical Data | NSN 4730-00-174-5990
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 377 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626,1/2H FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A9 CAP |

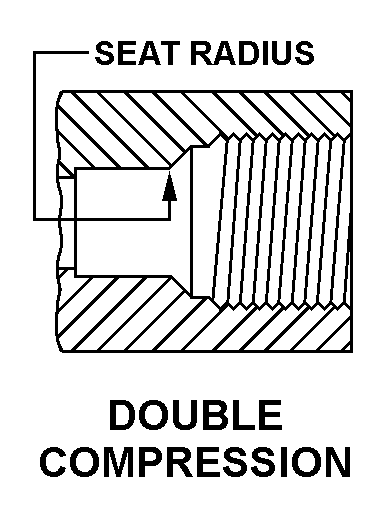

| CONNECTION STYLE | G4 DOUBLE COMPRESSION |
| THREAD SERIES DESIGNATOR | UNF INTERNAL |
| NOMINAL THREAD SIZE | 0.438 INCHES INTERNAL |
| THREAD CLASS | 2B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-174-5990
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
