NSN 4730-00-172-0047 MS150055, MS15005-5, AS15005

Product Details | LUBRICATION FITTING

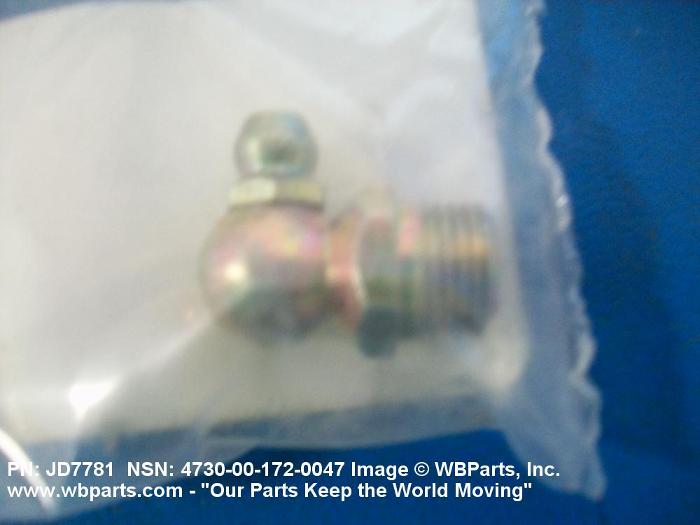

4730-00-172-0047 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.

Part Alternates: MS150055, MS15005-5, AS15005, AS150055, AS15005-5, AS35411, SS845-1889540 P, SS8451889540P, JD7781, L32780, MILF3541B, MIL-F-3541B, 12136, 1213-6, 12Z339PC5, 1923B, 324224 ITEM 132, 324224ITEM132, 324244, 45F4794090, 45F479-4090, Z542, 705400, 4730-00-172-0047, 00-172-0047, 4730001720047, 001720047

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-172-0047	03177 ( FITTING, LUBRICATION )

Drawings & Photos | NSN 4730-00-172-0047

Part Number	Request Date	QTY	Origin
4730-00-172-0047	2024-09-256	340	US
4730-00-172-0047	2024-09-256	340	DIBBS
4730-00-172-0047	2024-05-151	98	DIBBS
4730-00-172-0047	2024-05-140	98	DIBBS
4730-00-172-0047	2024-04-107	88	AU
4730-00-172-0047	2024-03-79	88	DIBBS
4730-00-172-0047	2024-01-30	76	DIBBS
4730-00-172-0047	2022-12-349	18	US
4730-00-172-0047	2019-08-232	200	US
4730-00-172-0047	2019-03-63	11	United States
4730-00-172-0047	2018-11-306	1	DIBBS-RFPs
4730-00-172-0047	2018-03-60	468	DIBBS
4730-00-172-0047	2017-09-254	312	DIBBS
4730-00-172-0047	2017-08-241	312	DIBBS
4730-00-172-0047	2017-06-173	72	DIBBS
4730-00-172-0047	2017-06-158	38	DIBBS
4730-00-172-0047	2017-06-157	38	DIBBS
4730-00-172-0047	2017-03-80	1	DIBBS-RFPs
4730-00-172-0047	2014-10-281	3068	DIBBS
4730-00-172-0047	2013-05-150	4045	DIBBS
4730-00-172-0047	2013-05-132	4045	DIBBS
4730-00-172-0047	2013-03-73	3	DIBBS
4730-00-172-0047	2013-02-39	4151	DIBBS
4730-00-172-0047	2012-12-341	2968	DIBBS
4730-00-172-0047	2012-06-182	0	DIBBS
4730-00-172-0047	2012-06-159	983	DIBBS
4730-00-172-0047	2012-05-126	1045	DIBBS
4730-00-172-0047	2011-08-241	36	Australia
MS150055	2011-08-230	36	United States
MS150055	2011-08-227	36	Australia
4730-00-172-0047	2011-02-34	1054	DIBBS
4730-00-172-0047	2010-09-250	601	DIBBS
4730-00-172-0047	2010-02-34	837	DIBBS
4730-00-172-0047	2009-11-313	255	DIBBS
4730-00-172-0047	2009-06-175	28	United States
4730-00-172-0047	2009-03-89	407	DIBBS
4730-00-172-0047	2009-03-80	15	US
4730-00-172-0047	2009-03-61	525	DIBBS
4730-00-172-0047	2009-01-26	14	US

Cross Reference | NSN 4730-00-172-0047

Part Number	Cage Code	Manufacturer
1213-6	81495	KOEHRING CRANES INC DBA TEREX CRANES DIV WAVERLY
12Z339PC5	53711	NAVAL SEA SYSTEMS COMMAND
1923B	95879	STEWART-WARNER ALEMITE CORP
324224 ITEM 132	34712	OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE
324244	34712	OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE
45F479-4090	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
705400	04895	LINCOLN LUBRICATING SYSTEMS INC
AS15005	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS15005-5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS35411	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
JD7781	75160	DEERE & CO
L32780	14541	CAMERON INTERNATIONAL CORPORATION DBA CAMERON ENERGY SERVICES DIV
MIL-F-3541B	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS15005-5	22852	SPALLA INC
MS15005-5	36251	MCNEIL OHIO CORP
MS15005-5	93578	WAGNER MACHINERY CO
MS15005-5	95879	STEWART-WARNER ALEMITE CORP
MS15005-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SS845-1889540 P	80064	NAVAL SHIP SYSTEMS COMMAND
Z542	10695	TAYLOR-DUNN CORPORATION DBA METRO CROWN INTERNATIONAL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-172-0047

Compare

Related Products | NSN 4730-00-172-0047

4730-00-172-0048, 4730-00-172-0049, 4730-00-172-0052, 4730-00-172-0055, 4730-00-172-0058

Technical Data | NSN 4730-00-172-0047

Characteristic	Specifications
MATERIAL	NICKEL ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-N-281 CLASS B FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANY ACCEPTABLE OVERALL
STYLE DESIGNATOR	E3 ANGLE
SHANK LENGTH	0.312 INCHES NOMINAL
ANGLE IN DEG	90.0
ASSEMBLY CLEARANCE RADIUS	0.625 INCHES MAXIMUM
HEIGHT	1.062 INCHES MAXIMUM
SCREW THREAD SERIES DESIGNATOR	PTF-SPL SHORT
NOMINAL THREAD SIZE	0.125 INCHES
THREAD QUANTITY PER INCH	27
BYPASS RELIEF VALVE SETTING RANGE	NOT RATED
WIDTH ACROSS FLATS	0.438 INCHES NOMINAL
SPECIAL FEATURES	SURFACE OR THROAT LOCATED BALL CHECK VALVE; E/ISHIP, OHIO CLASS SSN (TRIDENT)

Restrictions/Controls & Freight Information | NSN 4730-00-172-0047

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051450	PIPE FITTINGS CUPRO NICKEL/COPPER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-172-0047

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
