NSN 4730-00-172-0040 MS150041, MS15004-1, MLS150041

Product Details | LUBRICATION FITTING

4730-00-172-0040 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.

Part Alternates: MS150041, MS15004-1, MLS150041, MLS15004-1, A566/325, A566325, AS15004, AS150041, AS15004-1, AS35411, H5472002130, H547-2002-130, SSN6377002159, SSN637-700-2159, WS-9042 PIECE 63, WS9042PIECE63, WS927363, WS-9273-63, MILF3541, MIL-F-3541, MILF-3541 TY4 STR, MILF3541TY4STR, 5182143686, 518-2143686, 518214368626, 518-2143686-26, 566A004958, 581-6726888 FIND 20, 5816726888FIND20, 701-7070554 SH 1 PC 2, 7017070554SH1PC2, 77623-09X3 PIEC, 7762309X3PIEC, 77625-03X2 PIEC, 7762503X2PIEC, 122-3817720 PC 13, 1223817720PC13, 122-6776279 PC 46, 1226776279PC46, 122-6818783 PC 23, 1226818783PC23, 122-7312139 PC 13, 1227312139PC13, 1454510954M4, 145-4510954M4, 167-7066804-130, 1966, 1966ALEMITE, 1966B, 1966S, 2014-42 PIECE 2, 201442PIECE2, 201483PC72, 2014-83PC72, 2127596, 216042 , 216042 ITEM 9 , 216042ITEM9, 217819, 21824836101, 218-24836-101, 2409159032PC22, 2409-159032PC22 , 2463132PCM3, 2463-132PCM3 , 3202121, 32-02121, 45F4515, 45F451-5, 4730-00-172-0040, 00-172-0040, 4730001720040, 1677066804130, 211009513, 001720040

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-172-0040	03177 ( FITTING, LUBRICATION )

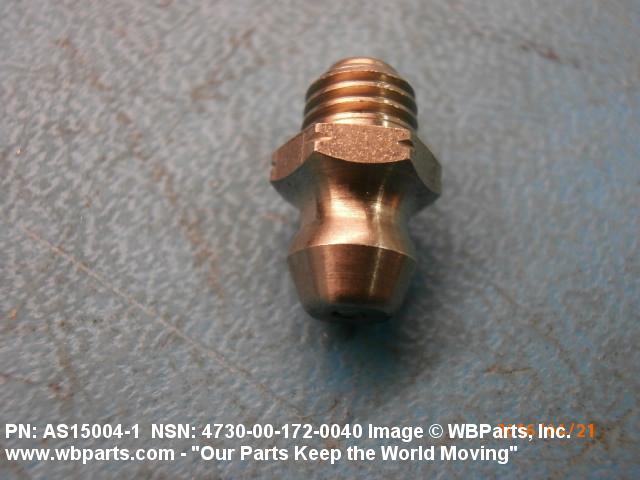

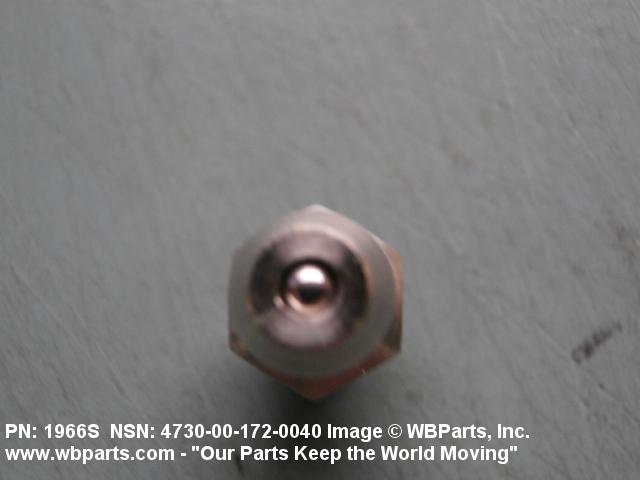

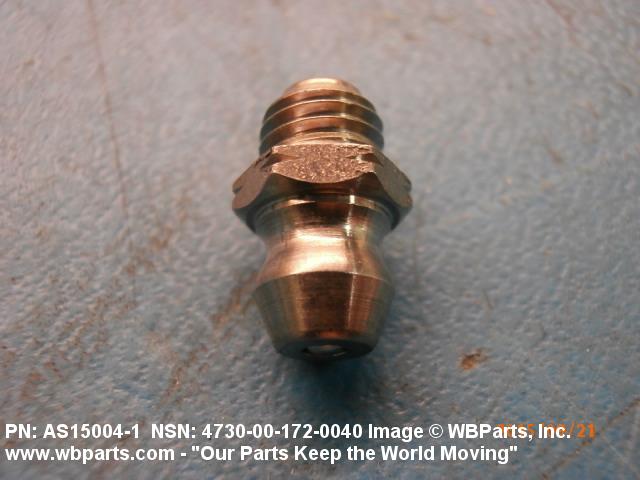

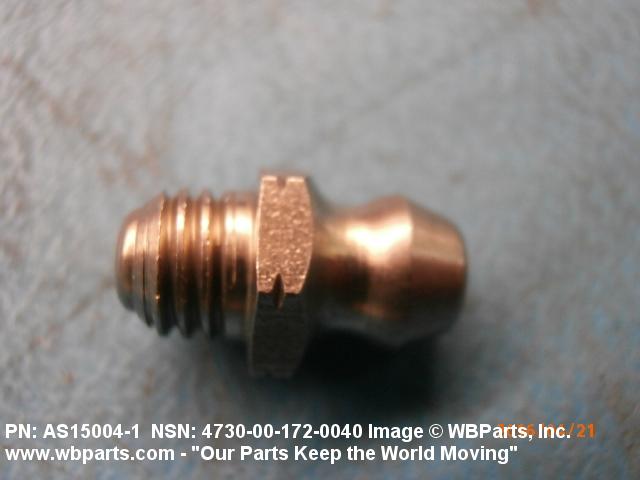

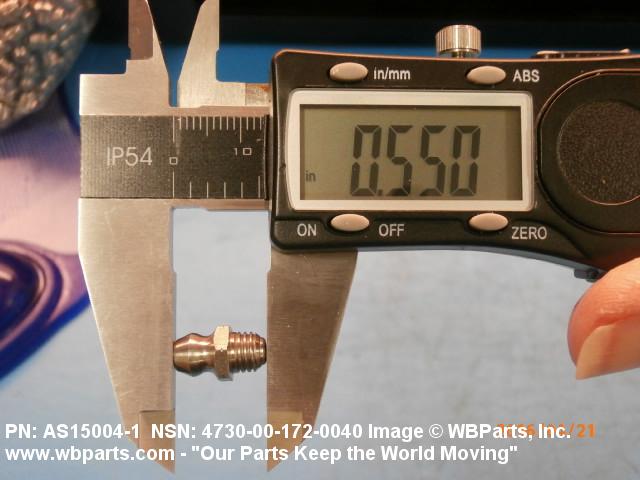

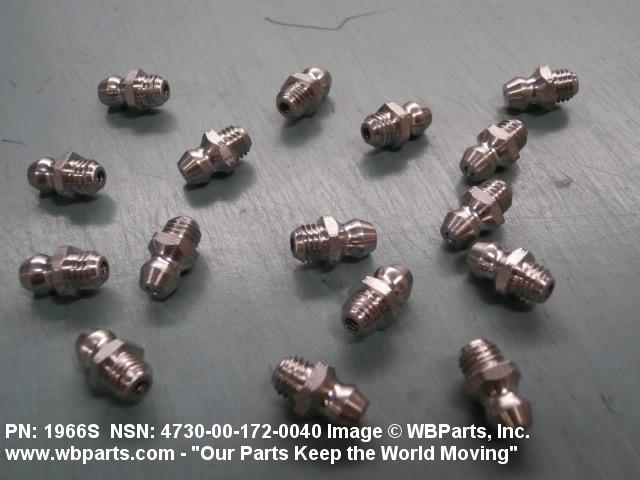

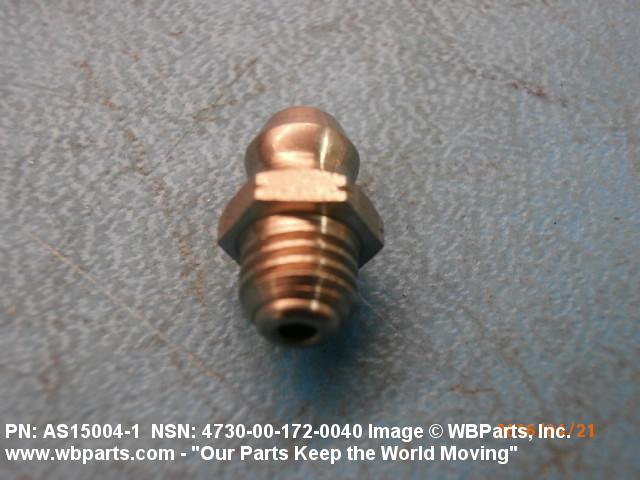

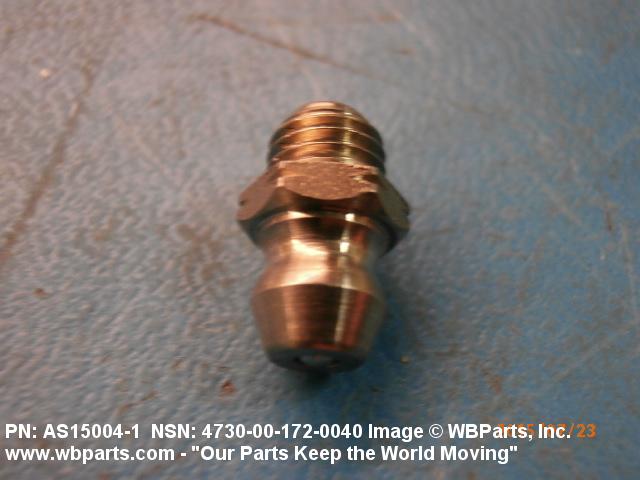

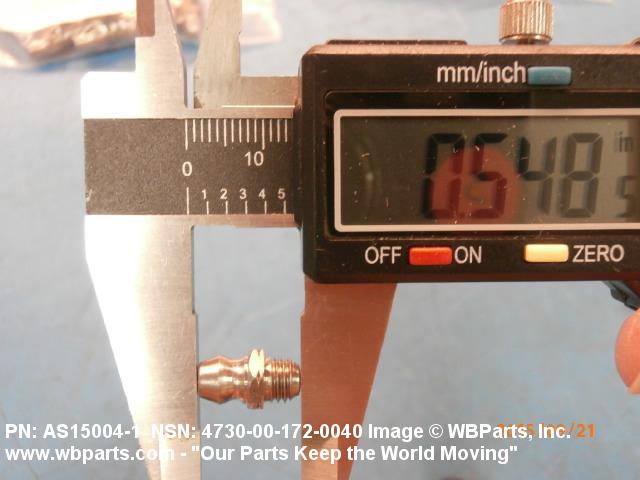

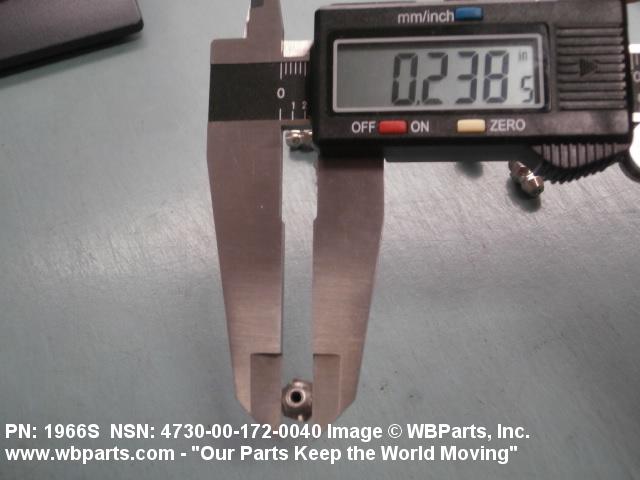

Drawings & Photos | NSN 4730-00-172-0040

Part Number	Request Date	QTY	Origin
4730-00-172-0040	2024-11-327	21	US
4730-00-172-0040	2024-09-255	1200	United States
4730-00-172-0040	2024-04-102	1	United States
MS150041	2024-02-60	1500	FR
4730-00-172-0040	2021-01-05	24	United States
AS150041	2020-04-108	2400	United States
4730-00-172-0040	2019-09-267	12	United States
4730-00-172-0040	2018-11-306	1	DIBBS-RFPs
4730-00-172-0040	2018-09-263	2	United States
MS150041	2018-07-190	50	Portugal
AS150041	2018-04-109	25	United States
4730-00-172-0040	2017-09-262	0	DIBBS
4730-00-172-0040	2017-08-243	616	US
4730-00-172-0040	2017-08-234	616	DIBBS
4730-00-172-0040	2017-07-211	111	DIBBS
4730-00-172-0040	2017-06-177	100	DIBBS
AS150041	2017-04-114	500	United States
4730-00-172-0040	2017-03-80	1	DIBBS-RFPs
AS150041	2016-10-287	2	United States
4730-00-172-0040	2016-09-259	6	United States
4730-00-172-0040	2016-06-180	8	United States
AS150041	2016-04-120	1000	United States
MS150041	2016-04-120	1000	United States
AS150041	2016-04-96	500	United States
AS150041	2015-09-260	500	United States
AS150041	2015-02-56	500	United States
AS150041	2015-02-56	1000	United States
AS150041	2015-02-56	2000	United States
MS150041	2015-02-56	500	United States
AS150041	2015-02-40	1000	United States
AS150041	2014-09-267	3600	DK
MILF3541	2014-09-245	16	United States
4730-00-172-0040	2014-05-128	5646	DIBBS
4730-00-172-0040	2014-03-71	3884	DIBBS
4730-00-172-0040	2014-03-64	4704	US
4730-00-172-0040	2014-02-56	4704	DIBBS
4730-00-172-0040	2013-06-160	4449	DIBBS
4730-00-172-0040	2013-04-109	3	United States
4730-00-172-0040	2013-03-77	3000	DIBBS
MS150041	2012-10-284	1000	IN
AS150041	2011-10-292	10	South Korea
MS150041	2011-10-292	10	South Korea
4730-00-172-0040	2011-04-102	2053	DIBBS
4730-00-172-0040	2010-05-144	1385	DIBBS
4730-00-172-0040	2009-08-215	2302	DIBBS
4730-00-172-0040	2009-03-61	1523	DIBBS
4730-00-172-0040	2008-02-56	16	US
4730-00-172-0040	2007-11-332	10	JP
MS150041	2007-05-128	1488	US
4730-00-172-0040	2007-05-121	730	US

Cross Reference | NSN 4730-00-172-0040

Part Number	Cage Code	Manufacturer
122-3817720 PC 13	53711	NAVAL SEA SYSTEMS COMMAND
122-6776279 PC 46	53711	NAVAL SEA SYSTEMS COMMAND
122-6818783 PC 23	53711	NAVAL SEA SYSTEMS COMMAND
122-7312139 PC 13	53711	NAVAL SEA SYSTEMS COMMAND
145-4510954M4	51563	ROHR, INC DBA GOODRICH AEROSTRUCTURES GROUP
167-7066804-130	53711	NAVAL SEA SYSTEMS COMMAND
1966	70270	STEWART-WARNER ALEMITE SALES CO INC
1966	95879	STEWART-WARNER ALEMITE CORP
1966ALEMITE	95879	STEWART-WARNER ALEMITE CORP
1966B	95879	STEWART-WARNER ALEMITE CORP
1966S	57733	STEWART-WARNER CORPORATION
2014-42 PIECE 2	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
2014-83PC72	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
211009513	53711	NAVAL SEA SYSTEMS COMMAND
218-24836-101	80378	TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT
32-02121	50737	SCHRECK INDUSTRIES INC
45F451-5	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
518-2143686	80064	NAVAL SHIP SYSTEMS COMMAND
518-2143686-26	80064	NAVAL SHIP SYSTEMS COMMAND
566A004958	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
581-6726888 FIND 20	53711	NAVAL SEA SYSTEMS COMMAND
701-7070554 SH 1 PC 2	53711	NAVAL SEA SYSTEMS COMMAND
77623-09X3 PIEC	96169	ELECTRIC BOAT CORPORATION
77625-03X2 PIEC	96169	ELECTRIC BOAT CORPORATION
A566/325	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
AS15004	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS15004-1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS35411	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
H547-2002-130	96169	ELECTRIC BOAT CORPORATION
MIL-F-3541	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILF-3541 TY4 STR	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MLS15004-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS15004-1	22852	SPALLA INC
MS15004-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SSN637-700-2159	80064	NAVAL SHIP SYSTEMS COMMAND
WS-9042 PIECE 63	11708	CARROLL ENGINEERING CO
WS-9273-63	34712	OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-172-0040

Compare

Related Products | NSN 4730-00-172-0040

4730-00-172-0041, 4730-00-172-0042, 4730-00-172-0043, 4730-00-172-0044, 4730-00-172-0045

Technical Data | NSN 4730-00-172-0040

Characteristic	Specifications
MATERIAL	NICKEL ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-N-286 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANY ACCEPTABLE OVERALL

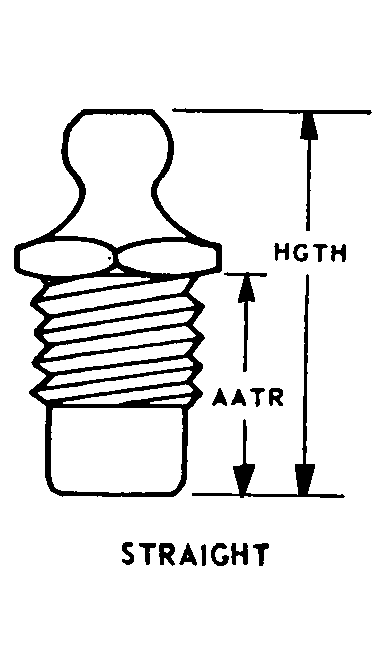

STYLE DESIGNATOR	E7 STRAIGHT

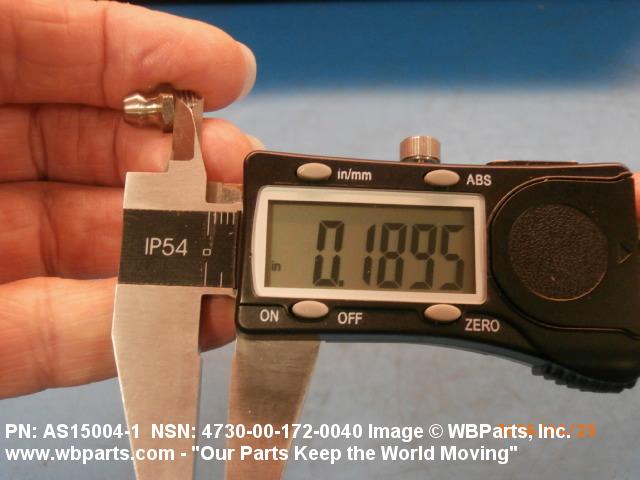

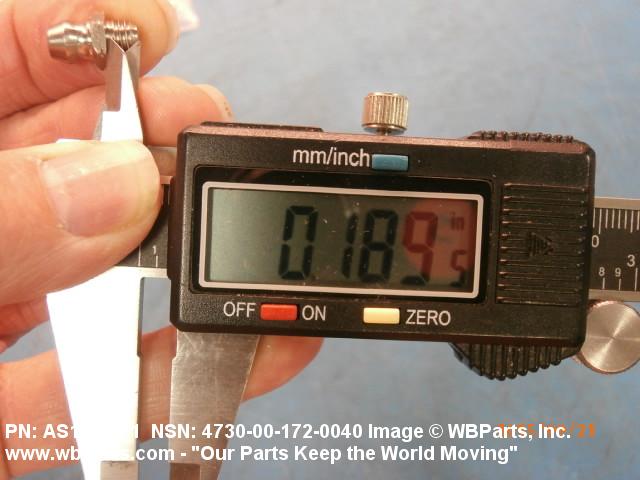

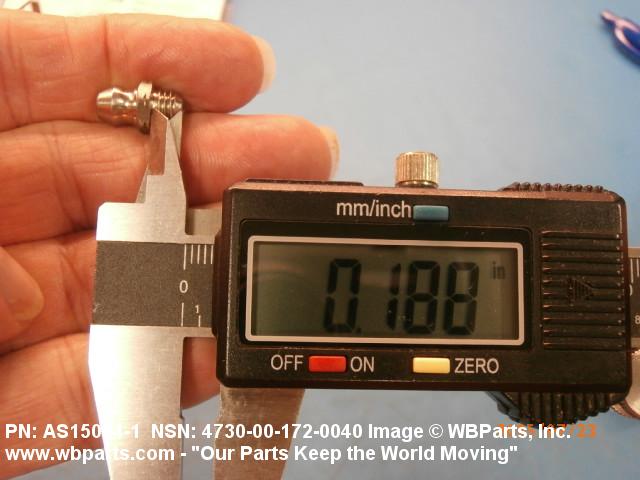

SHANK LENGTH	0.188 INCHES NOMINAL

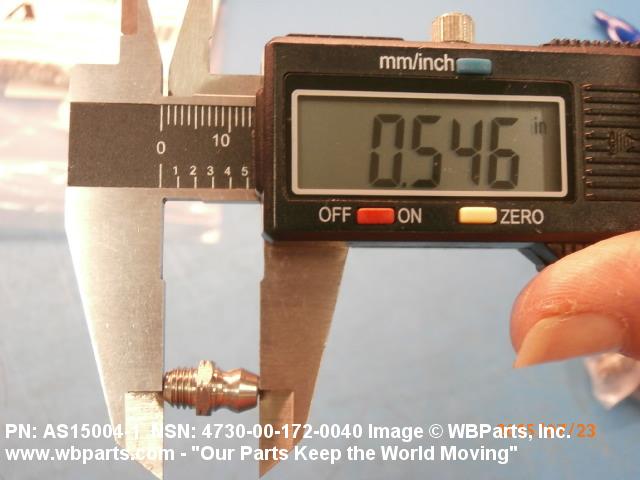

HEIGHT	0.500 INCHES NOMINAL
SCREW THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.250 INCHES

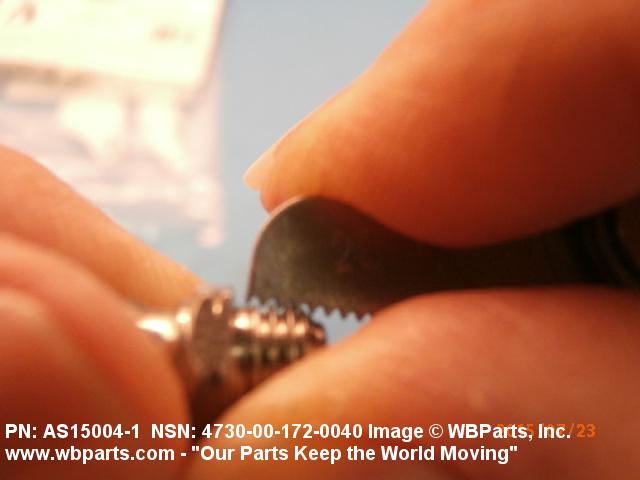

THREAD QUANTITY PER INCH	28
THREAD CLASS	2A
PRESSURE RELIEF METHOD	PORT END
BYPASS RELIEF VALVE SETTING RANGE	NOT RATED

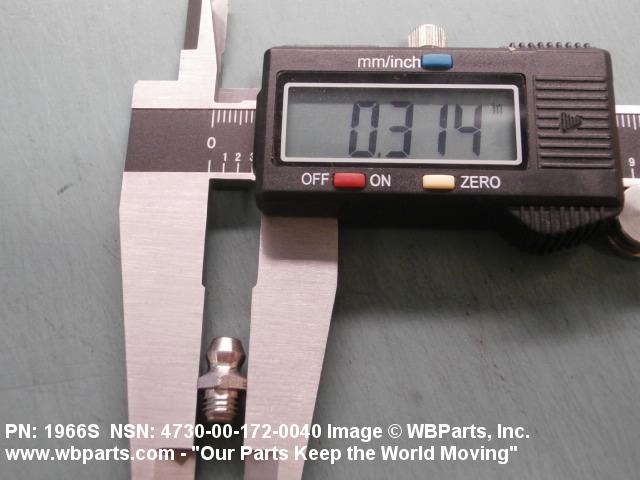

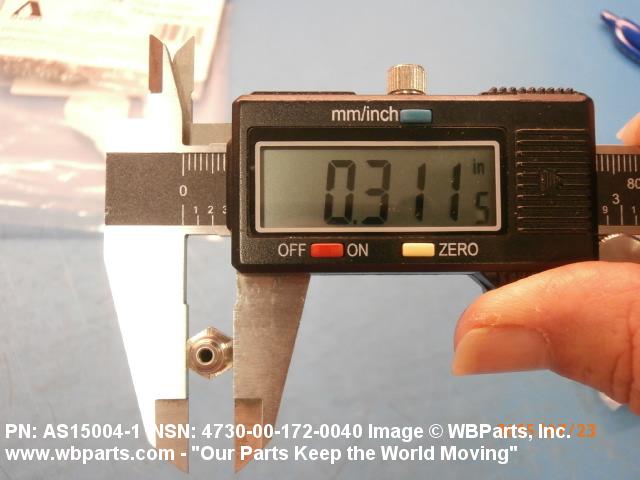

WIDTH ACROSS FLATS	0.312 INCHES NOMINAL

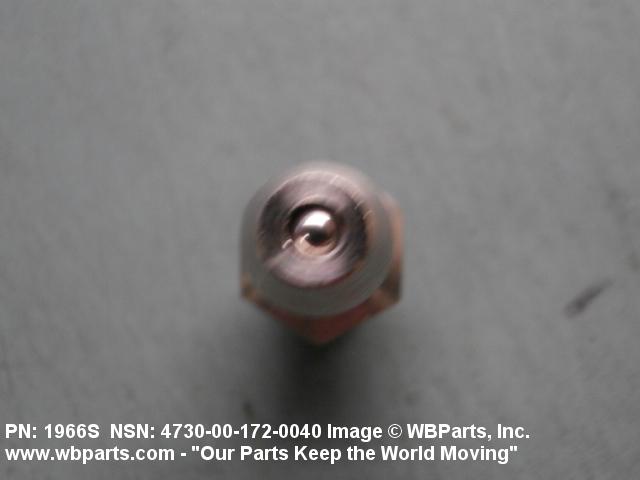

SPECIAL FEATURES	SURFACE LOCATED BALL CHECK VALVE
SPECIFICATION/STANDARD DATA	81349-MIL-F-3541 GOVERNMENT SPECIFICATION AND 96906-MS15004 GOVERNMENT STANDARD
NONDEFINITIVE SPEC/STD DATA	4 TYPE AND 1 FIGURE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-3541

Restrictions/Controls & Freight Information | NSN 4730-00-172-0040

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051450	PIPE FITTINGS CUPRO NICKEL/COPPER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-172-0040

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
