NSN 4730-00-172-0015 MS150023, MS15002-3, NAS2201A
Product Details | LUBRICATION FITTING
4730-00-172-0015 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Part Alternates: MS150023, MS15002-3, NAS2201A, NAS2-201A, AN944201A, AN944-201A, AS150023, AS15002-3, AS35411, DF3419, MILF3541B, MIL-F-3541B, 09306796, 0930679-6, 156087, 1770, 1770B, 1770B1, 2HP268, 460 690, 460690, 5242, 60665, 700243, 70024-3, 70930679, 4730-00-172-0015, 00-172-0015, 4730001720015, 001720015
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-172-0015 | 03177 ( FITTING, LUBRICATION ) |

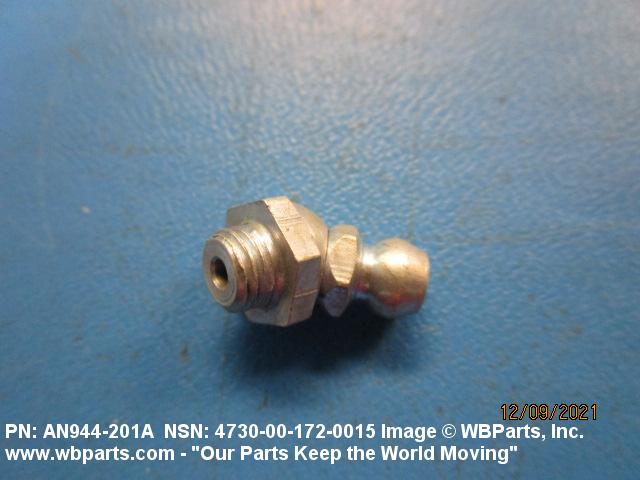

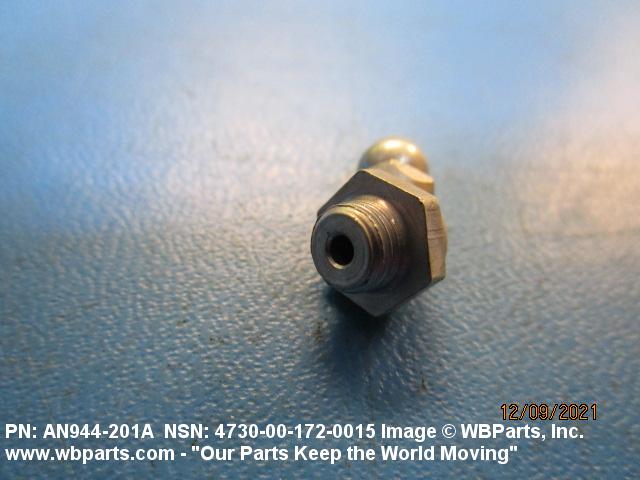

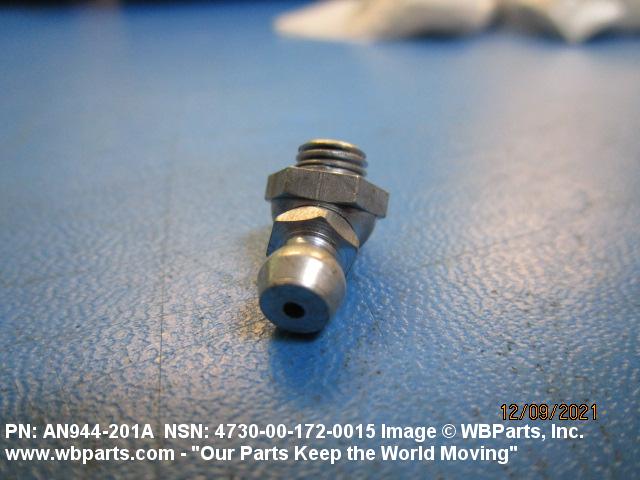

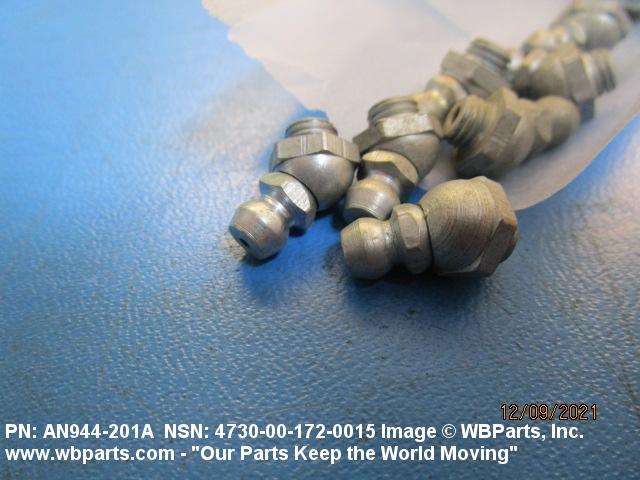

Drawings & Photos | NSN 4730-00-172-0015
Demand History | NSN 4730-00-172-0015
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-172-0015 | 2022-06-178 | 50 | US |
| AN944201A | 2021-11-328 | 40 | United States |
| AN944201A | 2018-10-275 | 136 | United States |
| 4730-00-172-0015 | 2018-05-151 | 42724 | DIBBS |
| 4730-00-172-0015 | 2018-04-95 | 23360 | DIBBS |
| 4730-00-172-0015 | 2018-03-88 | 4649 | DIBBS |
| MS150023 | 2018-03-78 | 66 | United States |
| 4730-00-172-0015 | 2018-03-67 | 4649 | DIBBS |
| MS150023 | 2017-11-326 | 10 | US |
| 4730-00-172-0015 | 2017-11-316 | 3415 | DIBBS |
| AS150023 | 2016-12-354 | 150 | United States |
| MS150023 | 2015-06-153 | 5 | CL |
| 4730-00-172-0015 | 2013-10-280 | 5537 | DIBBS |
| 4730-00-172-0015 | 2013-08-231 | 5537 | DIBBS |
| 70024-3 | 2012-08-229 | 12 | |
| MS150023 | 2012-06-171 | 7 | United States |
| MS150023 | 2012-04-93 | 3 | US |
| 4730-00-172-0015 | 2009-02-33 | 13 | us |
Cross Reference | NSN 4730-00-172-0015
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0930679-6 | 0AHU0 | KALMAR AC INC |
| 156087 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1770 | 57733 | STEWART-WARNER CORPORATION |
| 1770 | 95879 | STEWART-WARNER ALEMITE CORP |
| 1770B | 95879 | STEWART-WARNER ALEMITE CORP |
| 1770B1 | 22852 | SPALLA INC |
| 1770B1 | 95879 | STEWART-WARNER ALEMITE CORP |
| 2HP268 | 45152 | OSHKOSH CORPORATION |
| 2HP268 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 460 690 | 77294 | PIPER AIRCRAFT INC. |
| 5242 | 36251 | MCNEIL OHIO CORP |
| 60665 | 29731 | GARDNER DENVER WATER JETTING SYSTEMS, INC. |
| 70024-3 | 95097 | LITTLE GIANT CRANE AND SHOVEL INC |
| 70930679 | 0AHU0 | KALMAR AC INC |
| AN944-201A | 17576 | GOODRICH CORP DBA GOODRICH CORP |
| AN944-201A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS15002-3 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS35411 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| DF3419 | 35311 | AMERICAN STANDARD INC WESTINGHOUSE AIR BRAKE CO DIV |
| MIL-F-3541B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS15002-3 | 35311 | AMERICAN STANDARD INC WESTINGHOUSE AIR BRAKE CO DIV |
| MS15002-3 | 36251 | MCNEIL OHIO CORP |
| MS15002-3 | 57733 | STEWART-WARNER CORPORATION |
| MS15002-3 | 95097 | LITTLE GIANT CRANE AND SHOVEL INC |
| MS15002-3 | 95879 | STEWART-WARNER ALEMITE CORP |
| MS15002-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS2-201A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-172-0015
Related Products | NSN 4730-00-172-0015
Technical Data | NSN 4730-00-172-0015
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| STYLE DESIGNATOR | E3 ANGLE |
| SHANK LENGTH | 0.125 INCHES NOMINAL |
| ANGLE IN DEG | 45.0 |
| ASSEMBLY CLEARANCE RADIUS | 0.438 INCHES MAXIMUM |
| HEIGHT | 0.750 INCHES MAXIMUM |
| SCREW THREAD SERIES DESIGNATOR | SAE-LT |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| BYPASS RELIEF VALVE SETTING RANGE | NOT RATED |
| WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| SPECIAL FEATURES | SURFACE LOCATED BALL CHECK VALVE,USED ON GRUMMAN A-10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 96906-MS15002 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-172-0015
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-172-0015
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
