NSN 4730-00-143-0980 80228A, 8022-8A, 00-143-0980
Product Details | QUICK DISCONNECT PLUG
4730-00-143-0980 A fluid line fitting having an external quick disconnect feature, designed to be inserted into a fitting with an internal quick disconnect feature to block the flow of fluid. Excludes PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: 80228A, 8022-8A, 4730-00-143-0980, 00-143-0980, 4730001430980, 001430980
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 JAN 1973 | 00-143-0980 | 29762 ( PLUG, QUICK DISCONNECT ) |

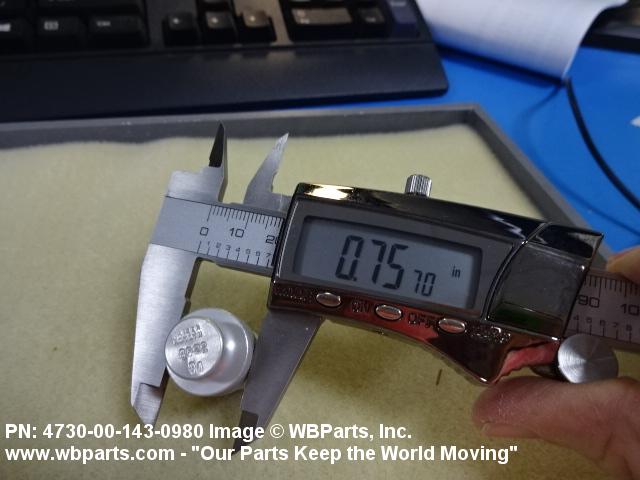

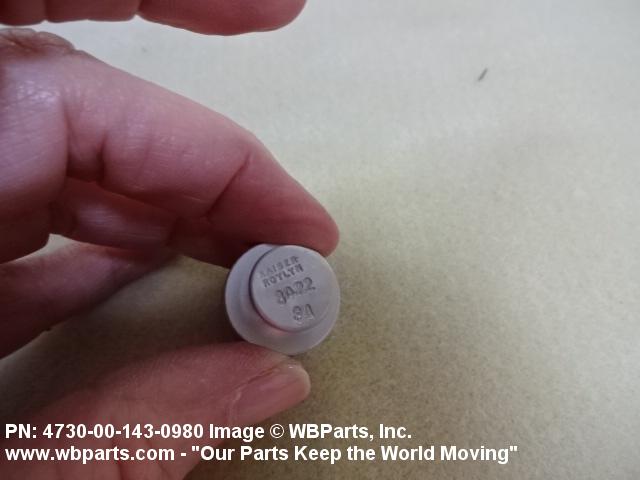

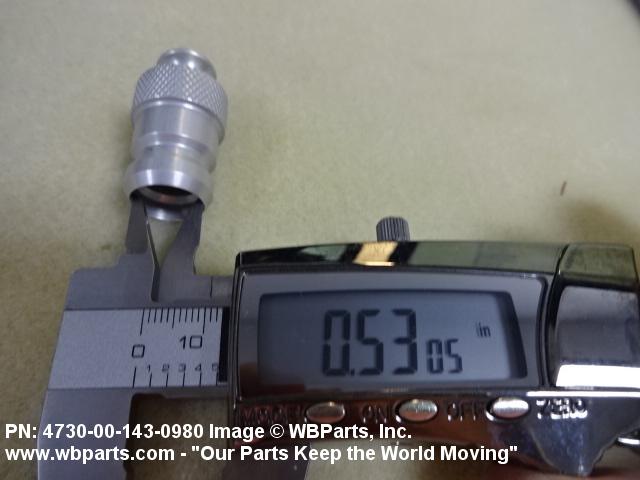

Drawings & Photos | NSN 4730-00-143-0980
Demand History | NSN 4730-00-143-0980
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8022-8A | 2019-05-133 | 147 | DIBBS |
| 8022-8A | 2019-03-80 | 126 | DIBBS |
| 4730-00-143-0980 | 2018-08-239 | 16 | DIBBS |
| 4730-00-143-0980 | 2018-08-228 | 16 | DIBBS |
| 4730-00-143-0980 | 2018-02-46 | 1 | us |
| 4730-00-143-0980 | 2012-06-158 | 15 | DIBBS |
| 4730-00-143-0980 | 2012-05-125 | 5 | DIBBS |
| 4730-00-143-0980 | 2012-04-103 | 6 | DIBBS |
| 4730-00-143-0980 | 2012-01-10 | 7 | DIBBS |
| 4730-00-143-0980 | 2009-05-150 | 19 | DIBBS |
| 4730-00-143-0980 | 2008-12-336 | 7 | DIBBS |
Cross Reference | NSN 4730-00-143-0980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8022-8A | 86831 | ROCKWELL COLLINS ELECTROMECHANICAL SYSTEMS, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-143-0980
Related Products | NSN 4730-00-143-0980
Technical Data | NSN 4730-00-143-0980
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | ANODIZE BODY |

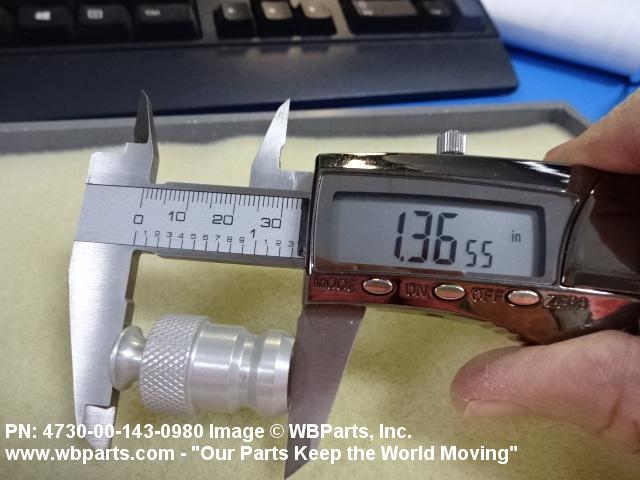

| OVERALL LENGTH | 1.380 INCHES NOMINAL |
| QUICK DISCONNECT METHOD | PUSH-PULL |

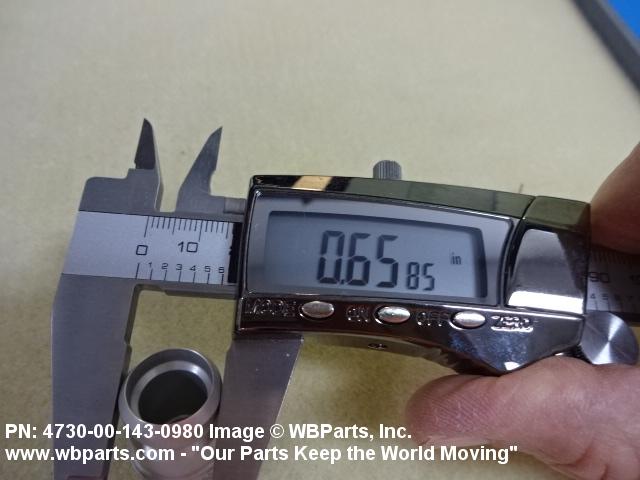

| QUICK DISCONNECT NOMINAL SIZE | 0.660 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-00-143-0980
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-143-0980
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
