NSN 4730-00-143-0313 351630100021, 00-143-0313, 001430313
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-143-0313 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 351630100021, 4730-00-143-0313, 00-143-0313, 4730001430313, 001430313
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
47 | 15 JAN 1973 | 00-143-0313 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Cross Reference | NSN 4730-00-143-0313
Part Number | Cage Code | Manufacturer |
---|---|---|
351630100021 | 86329 | PARKER-HANNIFIN CORPORATION DBA FLUID SYSTEMS DIVISION |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-143-0313
Related Products | NSN 4730-00-143-0313
Technical Data | NSN 4730-00-143-0313
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |

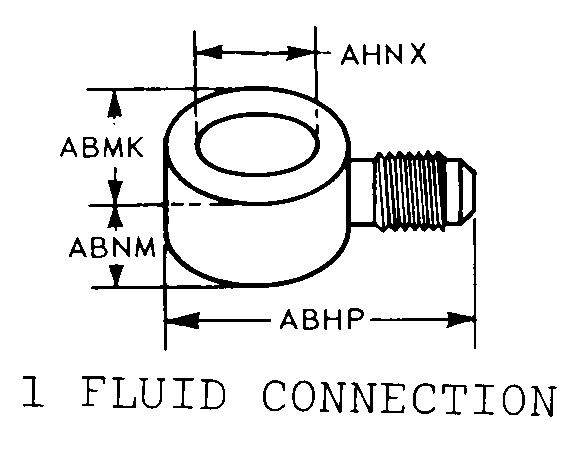

STYLE DESIGNATOR | D16 1 FLUID CONNECTION |
OVERALL LENGTH | 1.567 INCHES MINIMUM AND 1.577 INCHES MAXIMUM |
OVERALL WIDTH | 1.057 INCHES MINIMUM AND 1.067 INCHES MAXIMUM |
THICKNESS | 0.875 INCHES MINIMUM AND 0.878 INCHES MAXIMUM |
BOLT HOLE DIAMETER | 0.625 INCHES MINIMUM AND 0.626 INCHES MAXIMUM |
FLUID CONNECTION QUANTITY | 1 |
CONNECTION STYLE | G19 FLARED |
FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/16 IN.OD TUBE |
THREAD PROVISION | THREADED |
THREAD SIZE | 3/8 IN.-24 |
SCREW THREAD SERIES DESIGNATOR | UNF |
THREAD CLASS | 3A |
THREAD DIRECTION | RIGHT-HAND |
SEAT | INCLUDED |
SEAT ANGLE IN DEG | 37.0 |
BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
BOLT HOLE FLUID PASSAGE | PROVIDED |
MANUFACTURERS CODE | 86329 |
DESIGN CONTROL REFERENCE | 351630100021 |
Restrictions/Controls & Freight Information | NSN 4730-00-143-0313
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
