NSN 4730-00-142-2174 15466A, 1A7388, 41298F
Product Details | PACKING NUT
4730-00-142-2174 An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE.20210150024Guns, 75mm Through 125mm47300051Hose, Pipe, Tube, Lubrication, and Railing Fittings
Part Alternates: 15466A, 1A7388, 41298F, 5UUA032, 4730-00-142-2174, 00-142-2174, 4730001422174, 001422174
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-142-2174 | 18028 ( PACKING NUT ) |
Drawings & Photos | NSN 4730-00-142-2174
Cross Reference | NSN 4730-00-142-2174
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15466A | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 15466A | 28265 | HERCULES ENGINE CO INC |
| 1A7388 | 95201 | NAPCO INTERNATIONAL LLC |
| 41298F | 56442 | DIAMOND REO TRUCK CO |
| 5UUA032 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 5UUA032 | 65282 | WHITE MOTOR CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-142-2174
Technical Data | NSN 4730-00-142-2174
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

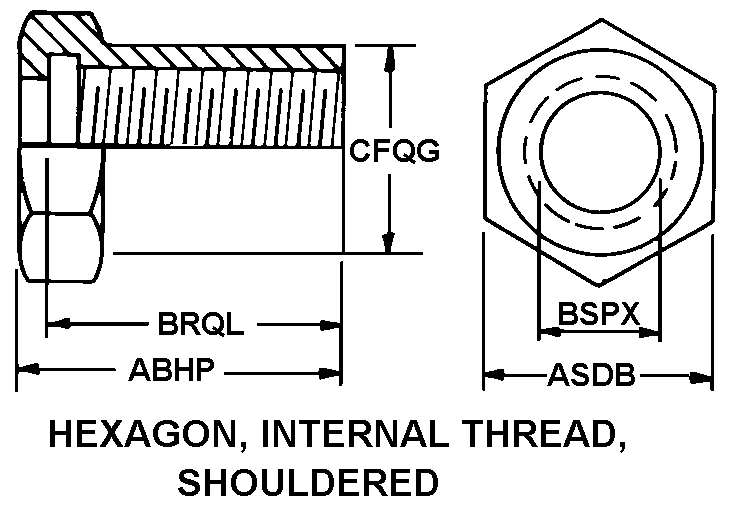

| STYLE DESIGNATOR | C2 HEXAGON, INTERNAL THREAD, SHOULDERED |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 2.125 INCHES NOMINAL |
| LENGTH TO SHOULDER | 1.344 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 1.344 INCHES NOMINAL |
| MAJOR UNTHREADED OUTSIDE DIAMETER | 2.062 INCHES NOMINAL |
| THREAD SIZE | 1.750-14 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD PITCH DIAMETERS | 1.7040 TO 1.7072 INCHES |
| THREAD LENGTH | 0.938 INCHES NOMINAL |
| THREAD DIRECTION | LEFT-HAND |
| SCREW THREAD LOCATION | INTERNAL |
Restrictions/Controls & Freight Information | NSN 4730-00-142-2174
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093460 | BOLTS/NUTS NOI BBC/ZINC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-142-2174
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
