Product Details | PIPE FLANGE
4730-00-142-1158 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 24826, 4730-00-142-1158, 00-142-1158, 4730001421158, 001421158
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-142-1158 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-142-1158
Cross Reference | NSN 4730-00-142-1158
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24826 | 28839 | TELEDYNE INDUSTRIES INC TELEDYNE POWER SYSTEMS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-142-1158
Related Products | NSN 4730-00-142-1158
Technical Data | NSN 4730-00-142-1158
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 3 OVAL, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 2.740 INCHES MINIMUM AND 2.760 INCHES MAXIMUM |
| FLANGE LENGTH | 3.360 INCHES MINIMUM AND 3.380 INCHES MAXIMUM |
| FLANGE WIDTH | 2.500 INCHES MINIMUM AND 2.546 INCHES MAXIMUM |
| BOLT HOLE DIAMETER | 0.250 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| FLANGE END RADIUS | 0.297 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |

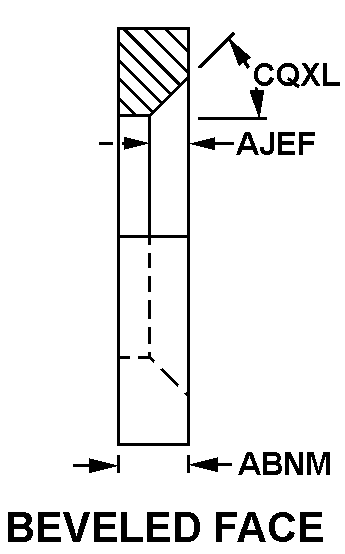

| FLANGE SECTION STYLE | 35 BEVELED FACE |
| THICKNESS | 0.380 INCHES NOMINAL |
| BEVEL DEPTH | 0.250 INCHES NOMINAL |
| FACE BEVEL ANGLE | 45.0 DEGREES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.000 INCHES NOMINAL |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIAL FEATURES | SUPPORTS GRUMMAN A-10 AIRCRAFT |
