NSN 4730-00-102-6304 MS2082312J, MS20823-12J, AN82312J
Product Details | PIPE TO TUBE ELBOW
4730-00-102-6304 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS2082312J, MS20823-12J, AN82312J, AN823-12J, 4730-00-102-6304, 00-102-6304, 4730001026304, 001026304
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 JUN 1968 | 00-102-6304 | 03770 ( ELBOW, PIPE TO TUBE ) |

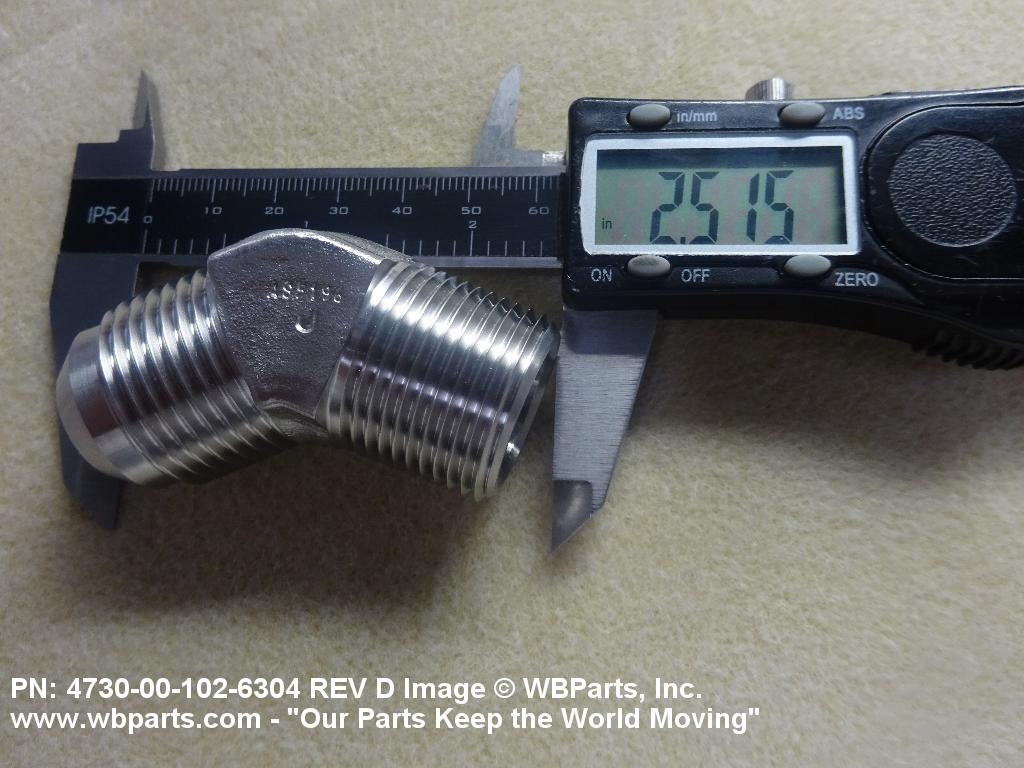

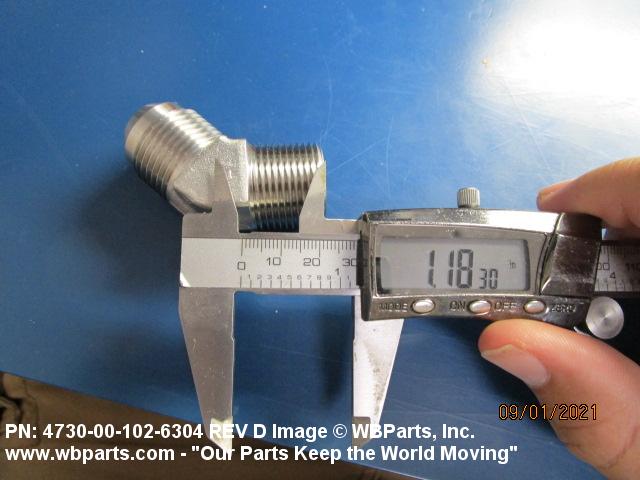

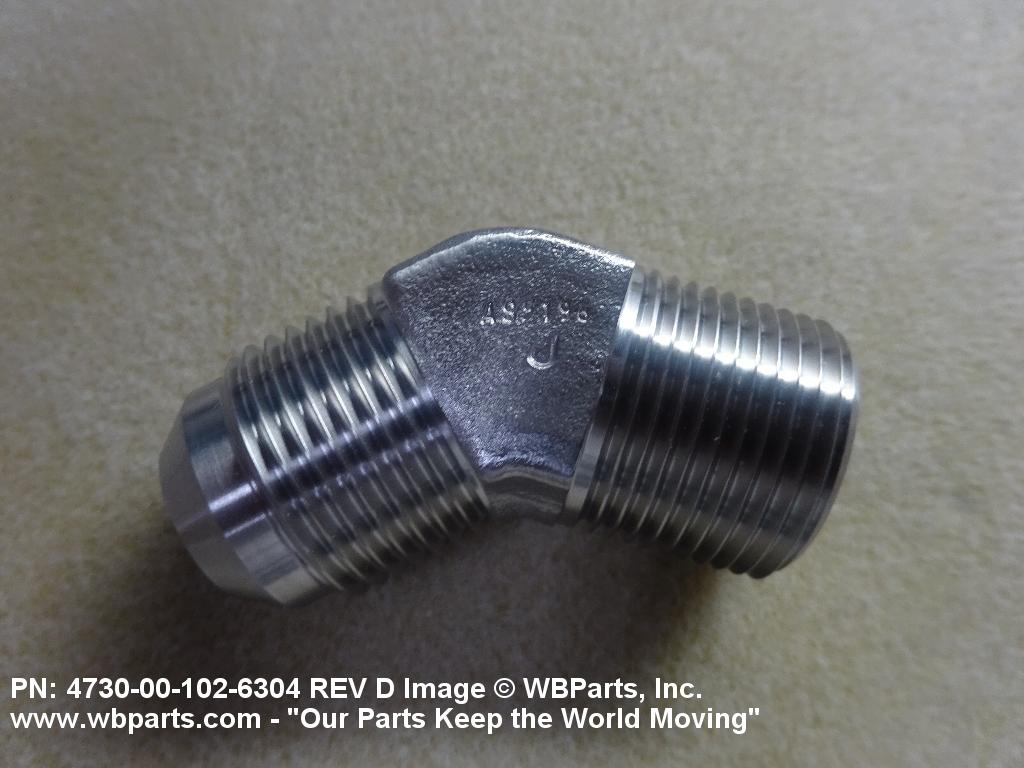

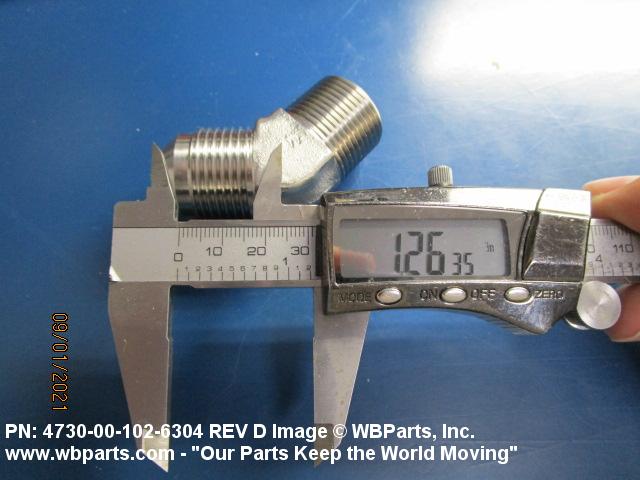

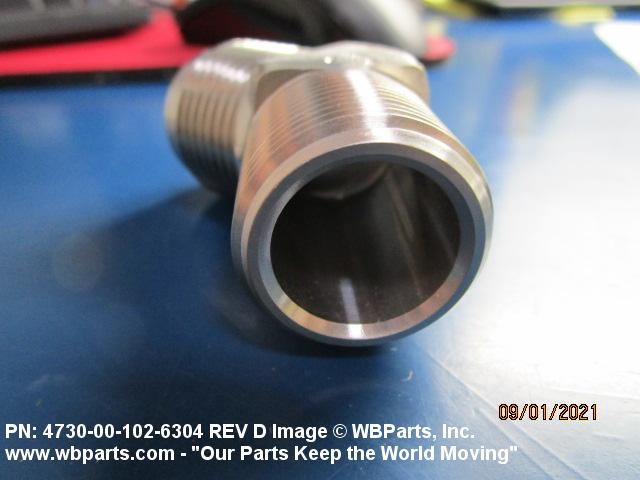

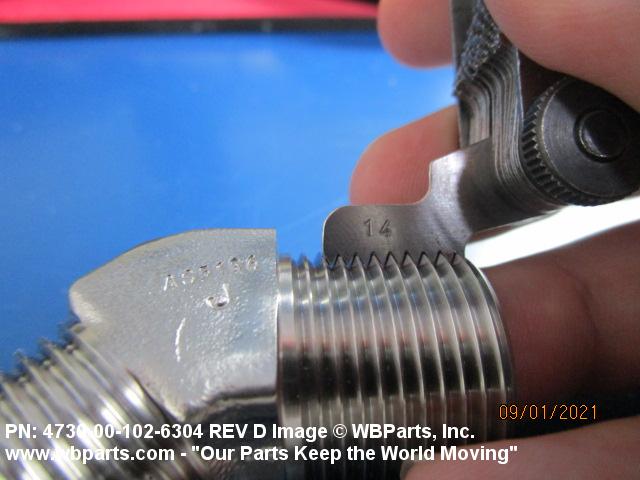

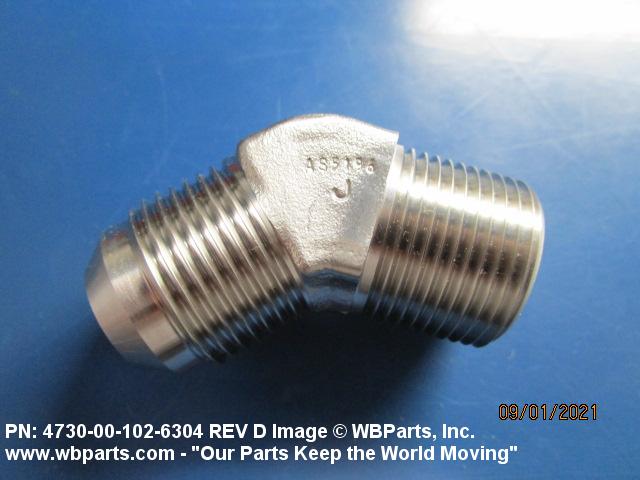

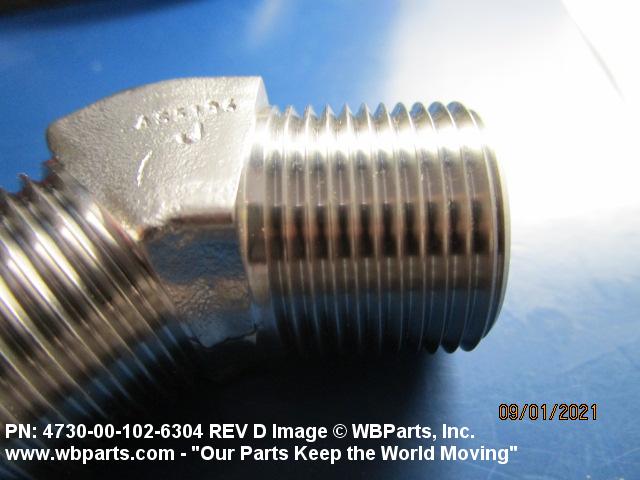

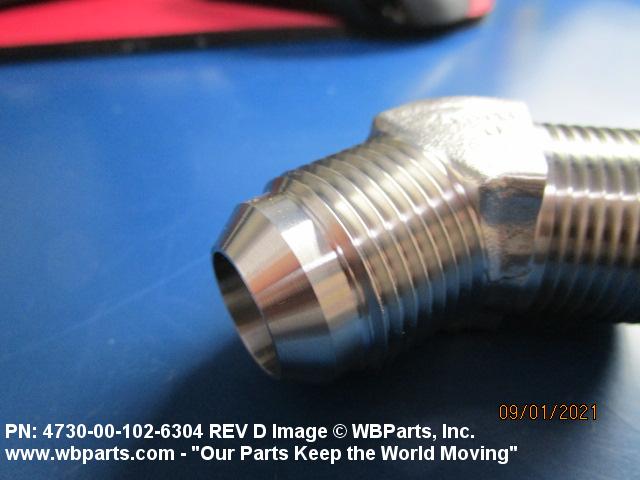

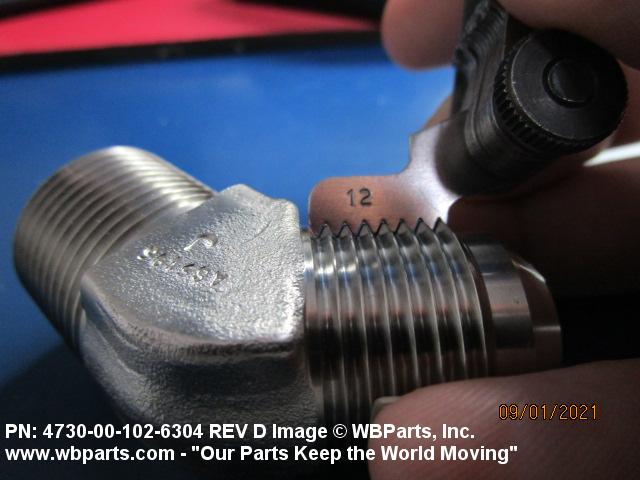

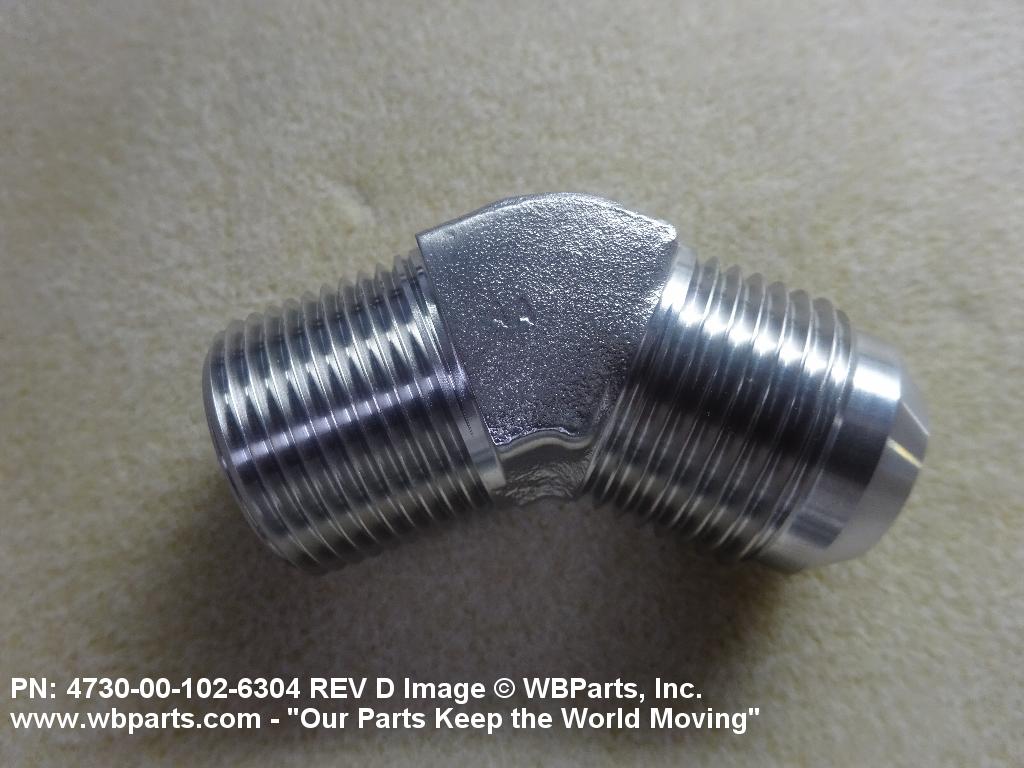

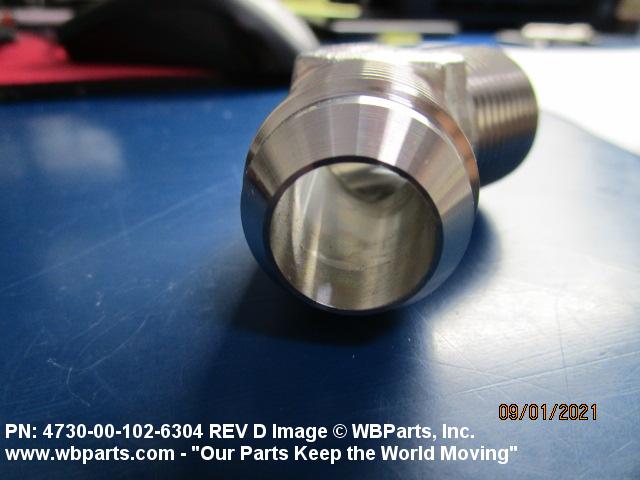

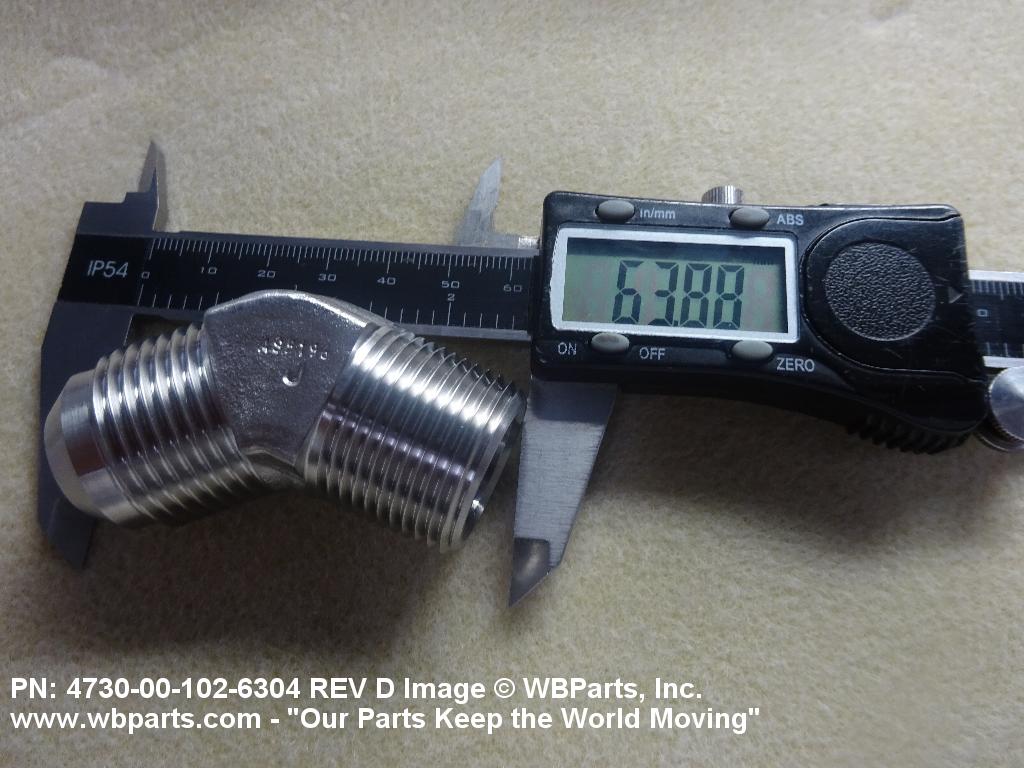

Drawings & Photos | NSN 4730-00-102-6304
Demand History | NSN 4730-00-102-6304
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-102-6304 | 2021-08-222 | 4 | United States |
| 4730-00-102-6304 | 2016-02-60 | 6 | DIBBS |
| 4730-00-102-6304 | 2016-02-47 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-102-6304
Technical Data | NSN 4730-00-102-6304
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJ 1ST END NPT 2ND END |
| NOMINAL THREAD SIZE | 1.062 INCHES 1ST END 0.750 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |
| LEG LENGTH | 1.266 INCHES MINIMUM AND 1.313 INCHES MAXIMUM 1ST END 1.188 INCHES NOMINAL 2ND END |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20823-12J |
