NSN 4730-00-102-2672 3630L16G, 3630L16G24, 00-102-2672
Product Details | TUBE COUPLING NUT ASSEMBLY
4730-00-102-2672 An item consisting of an internally threaded nut and an integral floating washer designed to be used with a gasket seal to connect beaded or swaged ferruled thin wall tubing to a coupling body, boss connection, or the like to form a flexible or rigid leakproof connection.
Part Alternates: 3630L16G, 3630L16G24, 4730-00-102-2672, 00-102-2672, 4730001022672, 001022672
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 MAY 1968 | 00-102-2672 | 32836 ( NUT ASSEMBLY, TUBE COUPLING ) |

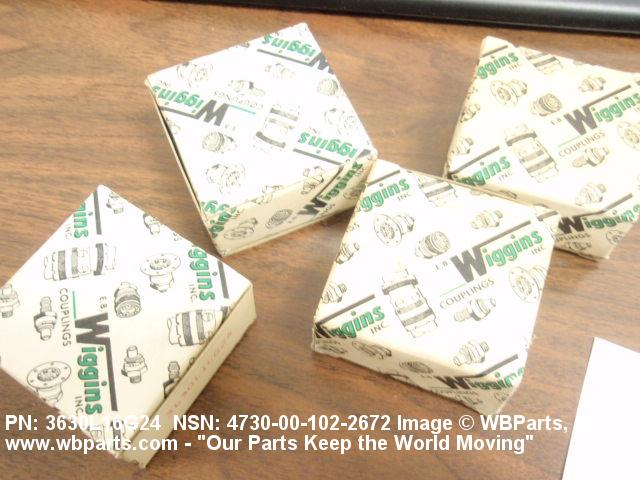

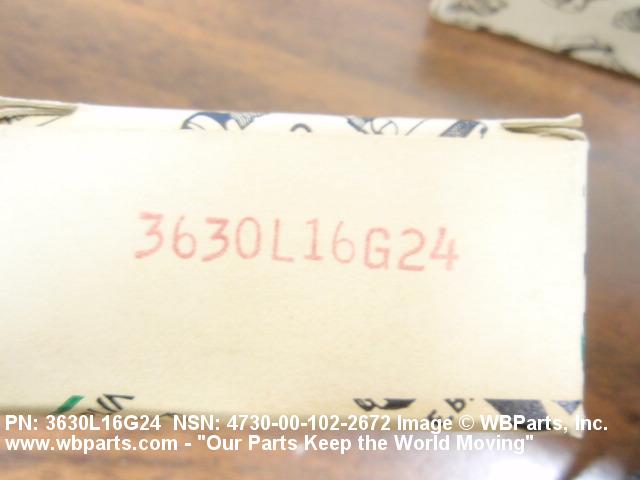

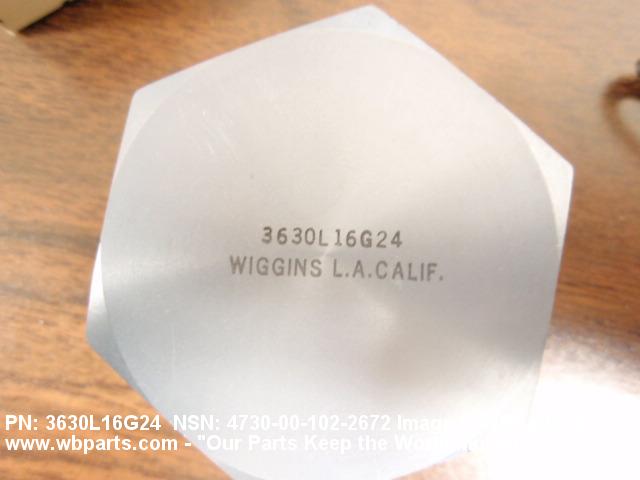

Drawings & Photos | NSN 4730-00-102-2672
Demand History | NSN 4730-00-102-2672
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12K36-24A | 2024-02-51 | 101 | DIBBS |
| 3630L16G24 | 2024-02-51 | 101 | DIBBS |
| 4730-00-102-2672 | 2024-01-22 | 2 | NZ |
| 4730-00-102-2672 | 2017-10-283 | 27 | DIBBS |
| 4730-00-102-2672 | 2017-07-198 | 64 | DIBBS |
| 4730-00-102-2672 | 2017-06-180 | 66 | DIBBS |
| 4730-00-102-2672 | 2017-06-155 | 79 | DIBBS |
| 4730-00-102-2672 | 2016-09-269 | 58 | DIBBS |
| 4730-00-102-2672 | 2016-07-202 | 4 | United States |
| 4730-00-102-2672 | 2016-06-159 | 8 | United States |
| 4730-00-102-2672 | 2016-01-03 | 12 | DIBBS |
| 4730-00-102-2672 | 2015-05-140 | 19 | DIBBS |
| 4730-00-102-2672 | 2015-04-96 | 17 | DIBBS |
| 4730-00-102-2672 | 2015-03-74 | 40 | DIBBS |
| 4730-00-102-2672 | 2014-12-342 | 13 | DIBBS |
| 4730-00-102-2672 | 2014-12-342 | 36 | DIBBS |
| 4730-00-102-2672 | 2014-11-331 | 13 | DIBBS |
| 4730-00-102-2672 | 2014-08-218 | 25 | DIBBS |
| 4730-00-102-2672 | 2014-07-212 | 17 | DIBBS |
| 4730-00-102-2672 | 2014-07-203 | 3 | DIBBS |
| 4730-00-102-2672 | 2012-03-62 | 37 | DIBBS |
| 4730-00-102-2672 | 2010-11-321 | 20 | United States |
| 4730-00-102-2672 | 2010-11-321 | 20 | United States |
| 4730-00-102-2672 | 2010-08-216 | 63 | DIBBS |
| 4730-00-102-2672 | 2010-07-194 | 19 | DIBBS |
| 4730-00-102-2672 | 2010-05-131 | 41 | DIBBS |
| 4730-00-102-2672 | 2010-03-81 | 12 | DIBBS |
| 4730-00-102-2672 | 2010-02-42 | 10 | DIBBS |
| 4730-00-102-2672 | 2009-10-292 | 35 | DIBBS |
| 4730-00-102-2672 | 2009-08-215 | 13 | DIBBS |
| 4730-00-102-2672 | 2009-02-43 | 27 | DIBBS |
| 4730-00-102-2672 | 2009-01-13 | 32 | DIBBS |
| 4730-00-102-2672 | 2008-11-319 | 14 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-102-2672
Technical Data | NSN 4730-00-102-2672
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625 |
| STYLE DESIGNATOR | U11 NUT ASSEMBLY |
| OVERALL LENGTH | 0.850 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.300 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.500 INCHES NOMINAL |
| THREAD SIZE | 1-1/8-12 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| WORKING PRESSURE AND SERVICE TYPE | 125.0 POUNDS PER SQUARE INCH NOMINAL OIL 125.0 POUNDS PER SQUARE INCH NOMINAL AIR |
| WORKING TEMP AND SERVICE TYPE | 160.0 DEG FAHRENHEIT NOMINAL OIL 160.0 DEG FAHRENHEIT NOMINAL AIR |
| SPECIAL FEATURES | INCLUDES PLUG,TUBE FITTINGS |
Restrictions/Controls & Freight Information | NSN 4730-00-102-2672
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
