NSN 4730-00-098-4273 C150258D, C150-25-8D, C155258D
Product Details | UNION NUT
4730-00-098-4273 An internally threaded nut which has an internal seat or shoulder designed to engage the nut retaining flange of a union tailpiece. The threaded portion is used to engage the thread piece of a union, union elbor or the like. Excludes NUT (1), TUBE COUPLING.202109000004730000000
Part Alternates: C150258D, C150-25-8D, C155258D, C155-25-8D, E115044, E155258D, E155-25-8D, 155258, 155-25-8, 155258D, 155-25-8D, 63352412, 633524-12, 4730-00-098-4273, 00-098-4273, 4730000984273, 000984273
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-098-4273 | 19964 ( NUT, UNION ) |

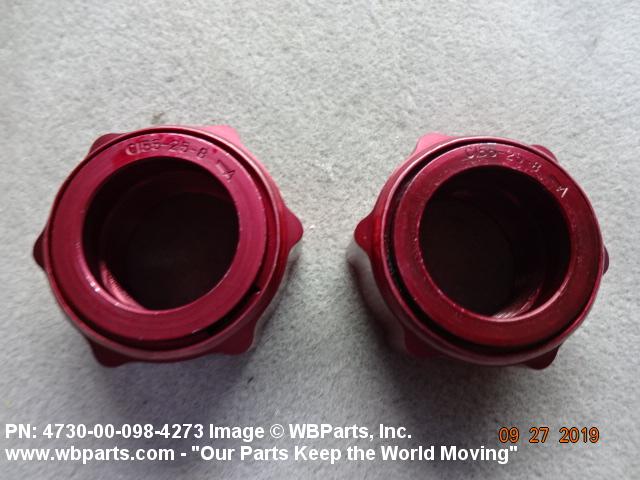

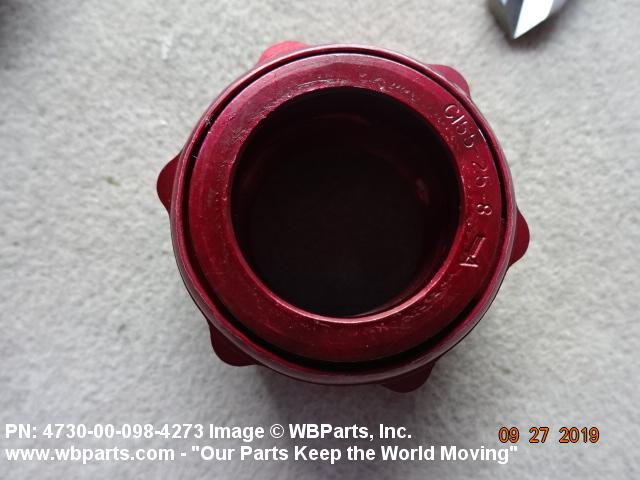

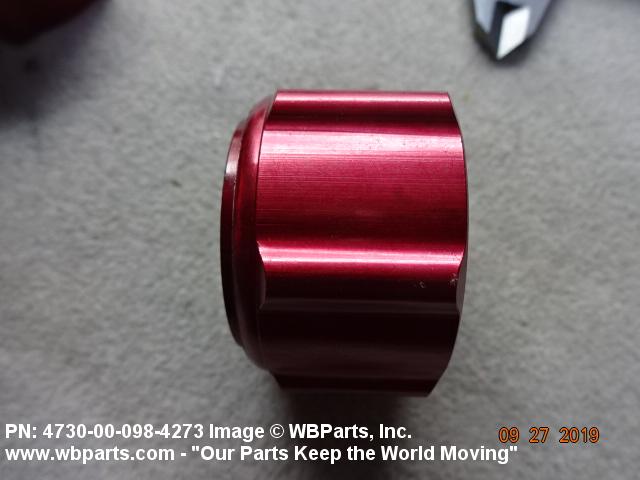

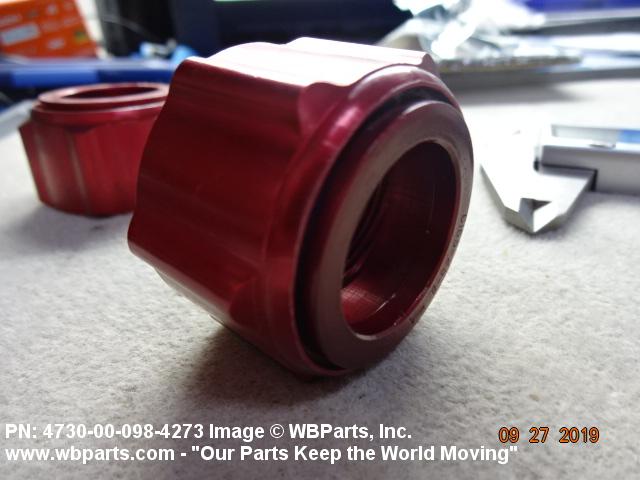

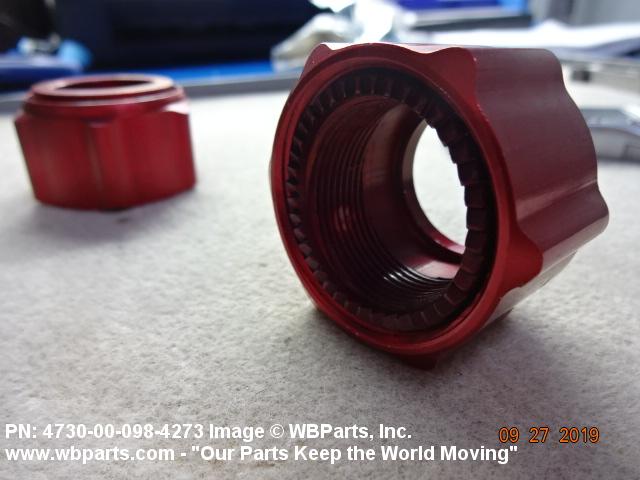

Drawings & Photos | NSN 4730-00-098-4273
Demand History | NSN 4730-00-098-4273
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-098-4273 | 2024-07-213 | 4 | US |
| 4730-00-098-4273 | 2024-02-40 | 3 | US |
| 155-25-8D | 2023-11-328 | 47 | DIBBS |
| 633524-12 | 2023-11-328 | 47 | DIBBS |
| E115044 | 2023-11-328 | 47 | DIBBS |
| E155-25-8D | 2023-11-328 | 47 | DIBBS |
| 155-25-8D | 2023-11-316 | 47 | DIBBS |
| 633524-12 | 2023-11-316 | 47 | DIBBS |
| E115044 | 2023-11-316 | 47 | DIBBS |
| E155-25-8D | 2023-11-316 | 47 | DIBBS |
| 155-25-8D | 2023-02-45 | 47 | DIBBS |
| 633524-12 | 2023-02-45 | 47 | DIBBS |
| E115044 | 2023-02-45 | 47 | DIBBS |
| E155-25-8D | 2023-02-45 | 47 | DIBBS |
| 155-25-8D | 2023-02-33 | 47 | DIBBS |
| 633524-12 | 2023-02-33 | 47 | DIBBS |
| E115044 | 2023-02-33 | 47 | DIBBS |
| E155-25-8D | 2023-02-33 | 47 | DIBBS |
| E155258D | 2023-01-18 | 1 | IN |
| 4730-00-098-4273 | 2022-12-361 | 1 | IN |
| 4730-00-098-4273 | 2021-06-179 | 1 | Australia |
| 155-25-8D | 2020-12-338 | 42 | DIBBS |
| 633524-12 | 2020-12-338 | 42 | DIBBS |
| E115044 | 2020-12-338 | 42 | DIBBS |
| E155-25-8D | 2020-12-338 | 42 | DIBBS |
| 155-25-8D | 2020-11-327 | 42 | DIBBS |
| 633524-12 | 2020-11-327 | 42 | DIBBS |
| E115044 | 2020-11-327 | 42 | DIBBS |
| E155-25-8D | 2020-11-327 | 42 | DIBBS |
| 4730-00-098-4273 | 2020-08-224 | 6 | AE |
| 4730-00-098-4273 | 2019-09-266 | 2 | us |
| 4730-00-098-4273 | 2014-12-338 | 86 | DIBBS |
| 4730-00-098-4273 | 2009-11-307 | 67 | DIBBS |
| 4730-00-098-4273 | 2009-05-139 | 41 | DIBBS |
| 155258D | 2007-11-325 | 1 | FX |
Cross Reference | NSN 4730-00-098-4273
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 155-25-8 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 155-25-8D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 633524-12 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| C150-25-8D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| C155-25-8D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| E115044 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| E155-25-8D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-098-4273
Related Products | NSN 4730-00-098-4273
Technical Data | NSN 4730-00-098-4273
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A371 HEXAGON |
| SHOULDER WIDTH | 0.250 INCHES NOMINAL |

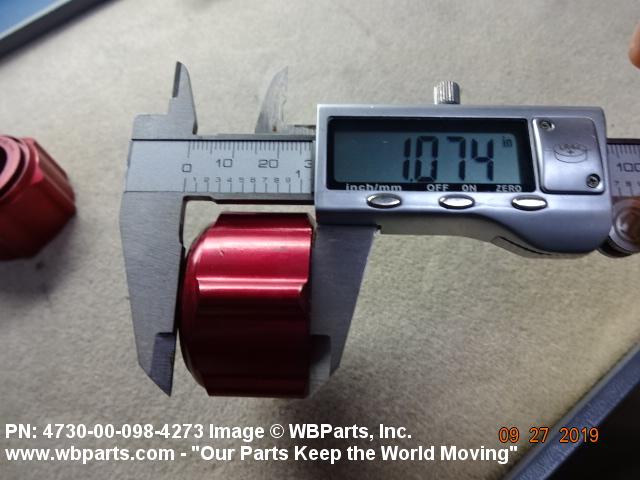

| NUT HEIGHT | 1.070 INCHES NOMINAL |

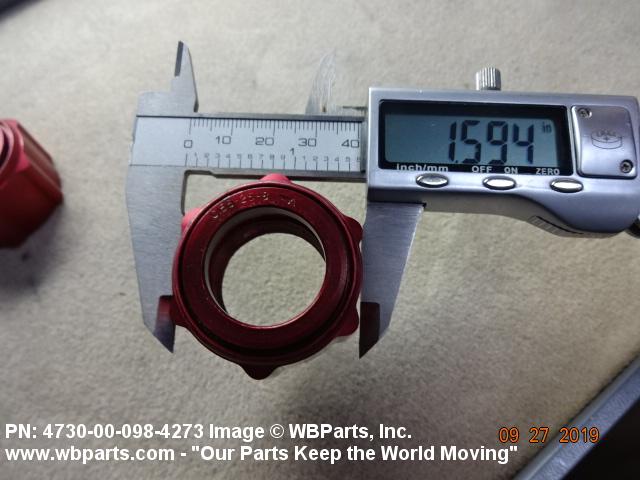

| WIDTH ACROSS FLATS | 1.562 INCHES NOMINAL |

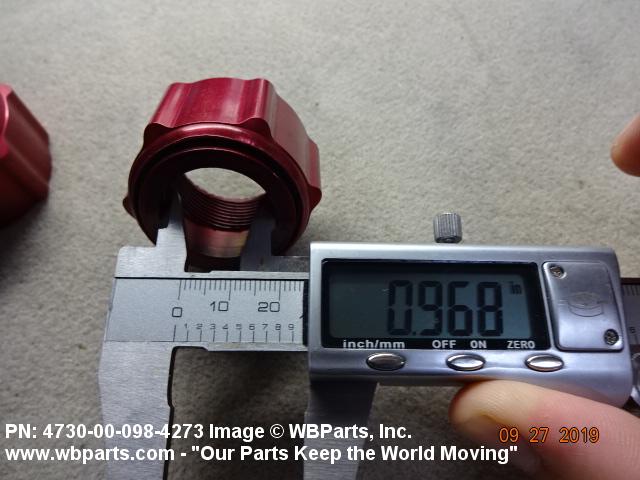

| SMALLEST INSIDE DIAMETER | 0.950 INCHES NOMINAL |
| SHOULDER STEP WIDTH | 0.1875 INCHES NOMINAL |
| SHOULDER SEAT DIAMETER | 1.030 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
| MAXIMUM WORKING PRESSURE RATING AND SERVICE FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH OIL |
| SPECIAL FEATURES | GRUMMAN A10 AIRCRAFT |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | E155-25-8D |
Restrictions/Controls & Freight Information | NSN 4730-00-098-4273
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-098-4273
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
