NSN 4730-00-080-7042 MS245194, MS24519-4, J1231
Product Details | PIPE TO HOSE ELBOW
4730-00-080-7042 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. One connecting end has standard pipe threads or is unthreaded and designed to accommodate a pipe. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, HOSE; ELBOW, PIPE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS245194, MS24519-4, J1231, J1231-4-6 431460A, J123146431460A, 4730-00-080-7042, 00-080-7042, 4730000807042, 000807042
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-080-7042 | 03769 ( ELBOW, PIPE TO HOSE ) |

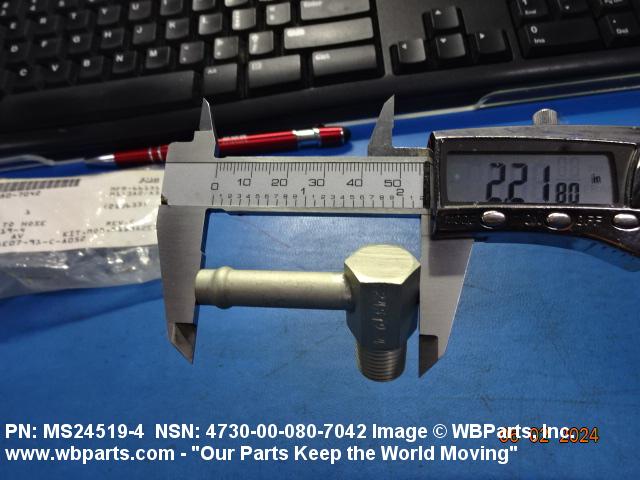

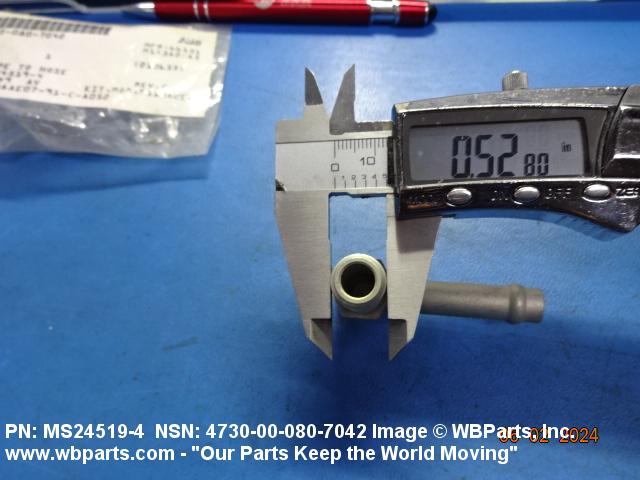

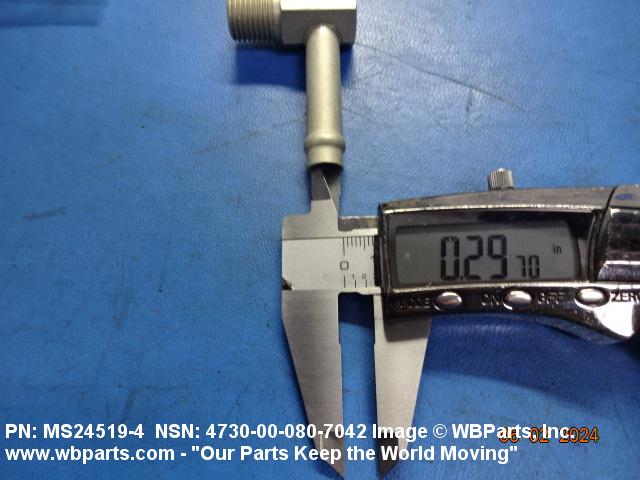

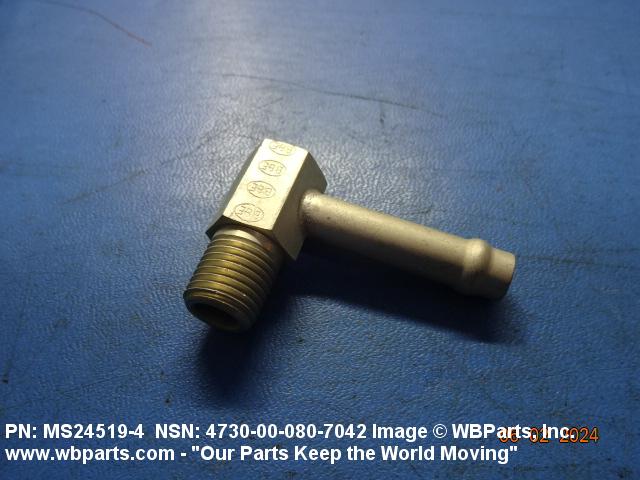

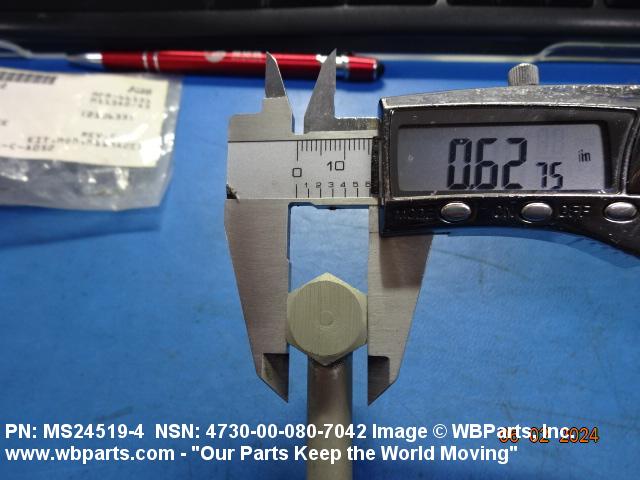

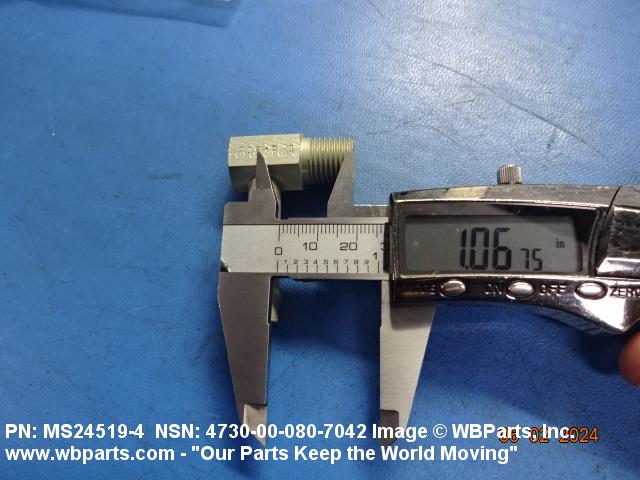

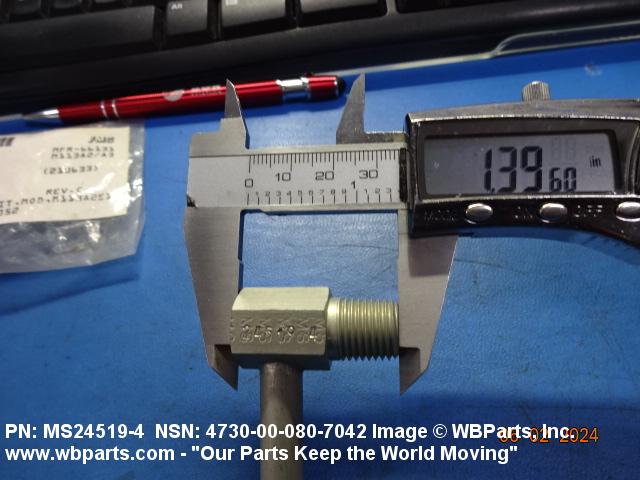

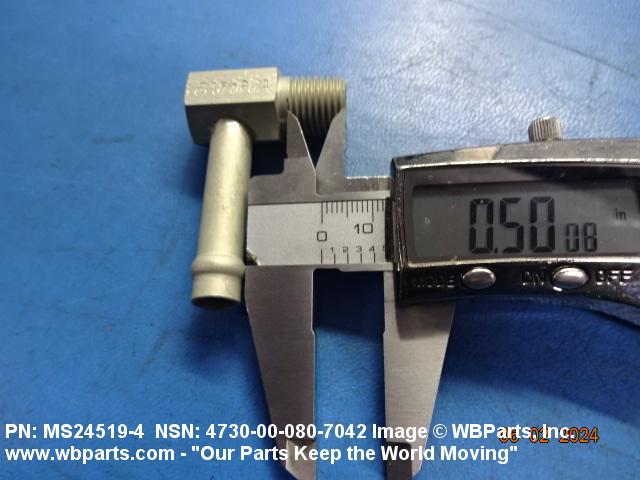

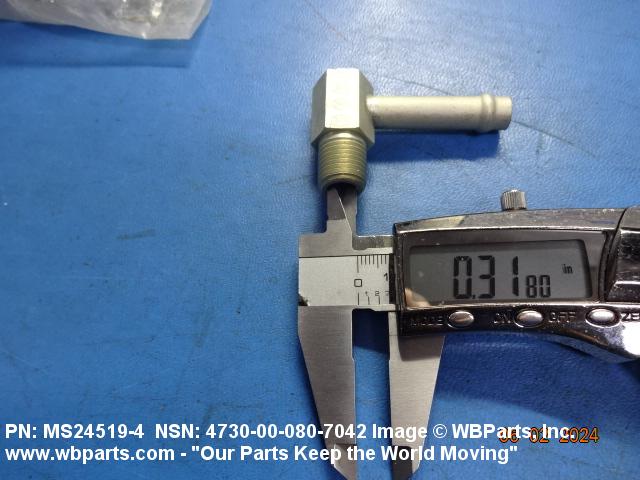

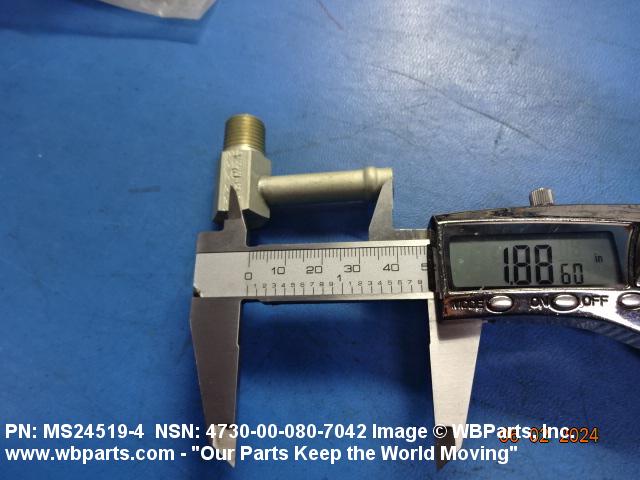

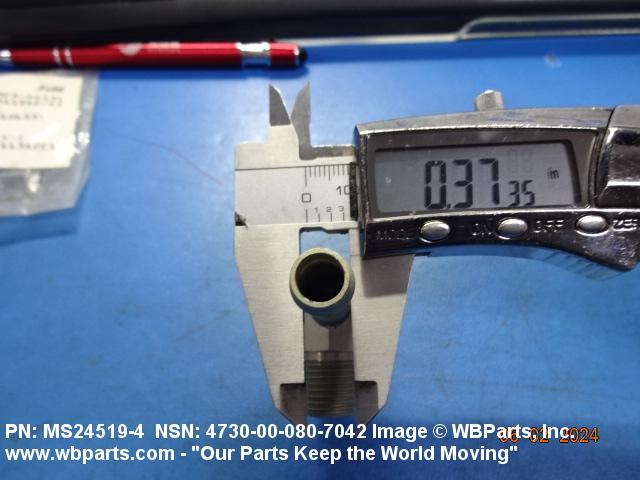

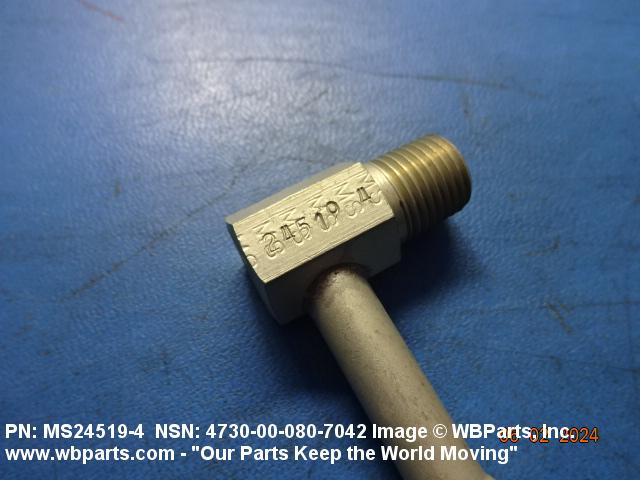

Drawings & Photos | NSN 4730-00-080-7042
Demand History | NSN 4730-00-080-7042
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS245194 | 2024-09-267 | 25 | United States |
| MS245194 | 2024-05-137 | 32 | United States |
| MS245194 | 2024-04-106 | 32 | United States |
| 4730-00-080-7042 | 2023-06-166 | 351 | DIBBS |
| 4730-00-080-7042 | 2022-10-304 | 436 | DIBBS |
| 4730-00-080-7042 | 2021-11-306 | 5 | United States |
| 4730-00-080-7042 | 2021-03-62 | 5 | Malaysia |
| 4730-00-080-7042 | 2021-02-36 | 2 | Malaysia |
| 4730-00-080-7042 | 2020-04-121 | 441 | DIBBS |
| 4730-00-080-7042 | 2019-10-297 | 493 | DIBBS |
| 4730-00-080-7042 | 2019-03-63 | 165 | DIBBS |
| 4730-00-080-7042 | 2019-02-52 | 165 | DIBBS |
| 4730-00-080-7042 | 2018-08-222 | 1 | United States |
| 4730-00-080-7042 | 2017-07-192 | 310 | MANUAL |
| MS24519-4 | 2017-07-192 | 310 | PK |
| MS24519-4 | 2017-07-187 | 12 | PK |
| MS245194 | 2016-01-12 | 42 | Israel |
| 4730-00-080-7042 | 2015-12-337 | 20 | Pakistan |
| MS245194 | 2015-08-234 | 130 | Pakistan |
| 4730-00-080-7042 | 2013-08-233 | 10 | DIBBS |
| 4730-00-080-7042 | 2013-08-218 | 50 | DIBBS |
| 4730-00-080-7042 | 2013-08-218 | 10 | DIBBS |
| 4730-00-080-7042 | 2013-03-74 | 20 | DIBBS |
| 4730-00-080-7042 | 2013-02-59 | 20 | DIBBS |
| 4730-00-080-7042 | 2012-04-104 | 5 | MANUAL |
| 4730-00-080-7042 | 2011-06-155 | 5 | MANUAL |
| 4730-00-080-7042 | 2011-06-155 | 5 | MANUAL |
| MS24519-4 | 2011-06-155 | 5 | PK |
| MS24519-4 | 2011-06-155 | 5 | PK |
| 4730-00-080-7042 | 2011-03-68 | 39 | MANUAL |
| 4730-00-080-7042 | 2008-08-238 | 10 | us |
Cross Reference | NSN 4730-00-080-7042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J1231 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| J1231-4-6 431460A | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24519-4 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS24519-4 | 22995 | CROWN FITTING CO INC |
| MS24519-4 | 50036 | MIL-CRAFT MFG. INC. |
| MS24519-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-080-7042
Related Products | NSN 4730-00-080-7042
Technical Data | NSN 4730-00-080-7042
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5086 OR ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/7 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END UNTHREADED EXTERNAL HOSE 2ND END |
| CONNECTION STYLE | B63B INVERTED FLARE 1ST END B103 BEADED 2ND END |
| SEAT ANGLE | 30.0 DEGREES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.375 INCHES 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | NPTF 1ST END |
| NOMINAL THREAD SIZE | 0.250 INCHES 1ST END |
| LEG LENGTH | 1.000 INCHES MINIMUM AND 1.078 INCHES MAXIMUM 1ST END 1.859 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24519-4 |
Restrictions/Controls & Freight Information | NSN 4730-00-080-7042
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
