NSN 4730-00-025-1334 MS15011PC7, CGA E1 , CGAE1
Product Details | TUBE-HOSE ADAPTER BODY
4730-00-025-1334 An incomplete fitting which, when installed is designed to join together in a straight line a tube and/or tube fitting to a hose and/or hose fitting. The item may have a complete connection on one end; the other end always requires an additional nut and/or sleeve to make a complete end connection.
Part Alternates: MS15011PC7, CGA E1 , CGAE1, CGAE1TS022D05B, CGAE1TS022-D05B , 4730-00-025-1334, 00-025-1334, 4730000251334, 000251334
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-025-1334 | 32833 ( ADAPTER BODY, TUBE-HOSE ) |

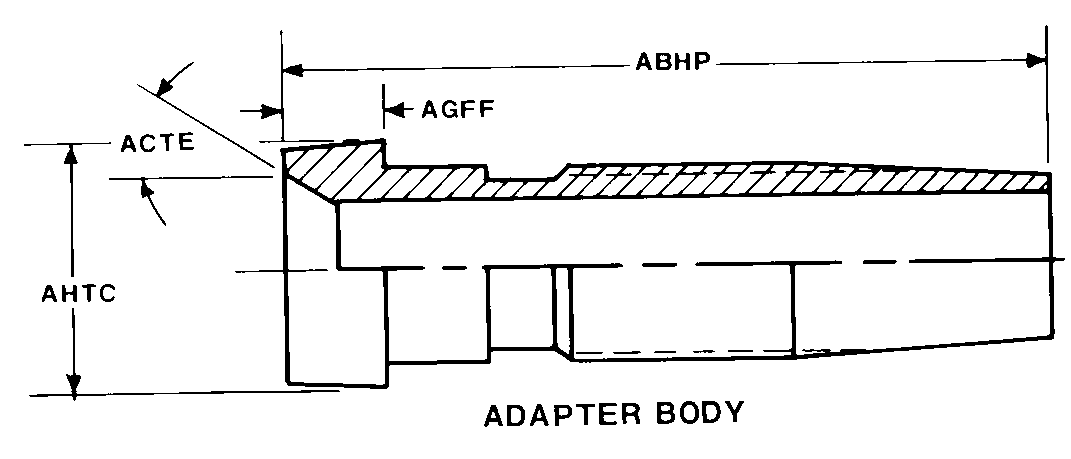

Drawings & Photos | NSN 4730-00-025-1334
Demand History | NSN 4730-00-025-1334
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-025-1334 | 2022-09-258 | 200 | DIBBS |
| 4730-00-025-1334 | 2022-08-240 | 200 | DIBBS |
| 4730-00-025-1334 | 2017-03-61 | 1 | DIBBS |
| 4730-00-025-1334 | 2010-02-37 | 295 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-025-1334
Technical Data | NSN 4730-00-025-1334
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| STYLE DESIGNATOR | U7 ADAPTER BODY |
| OVERALL LENGTH | 1.656 INCHES NOMINAL |
| FLANGE WIDTH | 0.125 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.498 INCHES NOMINAL |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.430 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | POSEIDON SUBMARINE/NAVY STRATEGIC WEAPON SYSTEM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS15011PC7 |
Restrictions/Controls & Freight Information | NSN 4730-00-025-1334
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-025-1334
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
