NSN 4730-00-009-8259 MS21902K4, AS18280, AS21902
Product Details | BOSS NIPPLE
4730-00-009-8259 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.
Part Alternates: MS21902K4, AS18280, AS21902, 1376-18-515, 4730-00-009-8259, 00-009-8259, 4730000098259, 137618515, 000098259
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 AUG 1972 | 00-009-8259 | 26952 ( NIPPLE, BOSS ) |

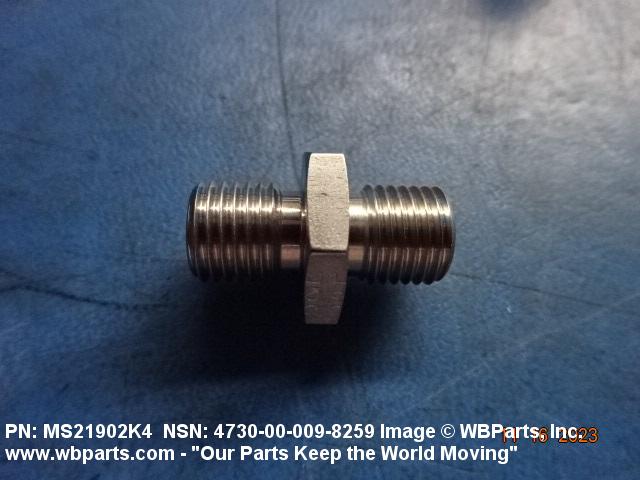

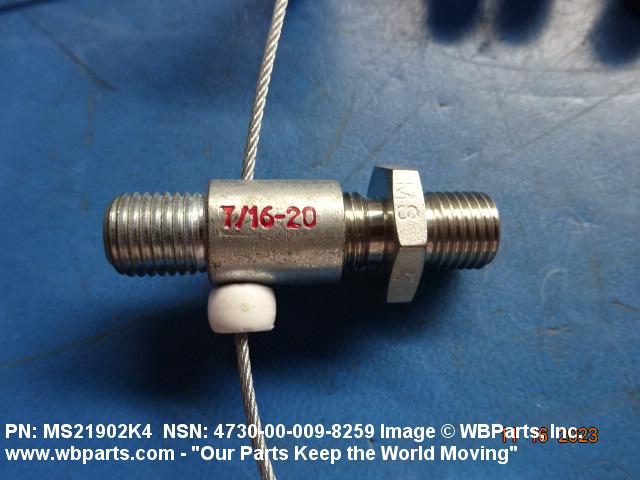

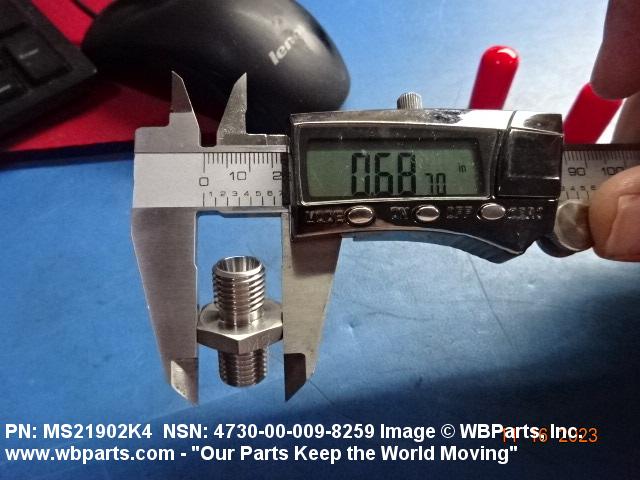

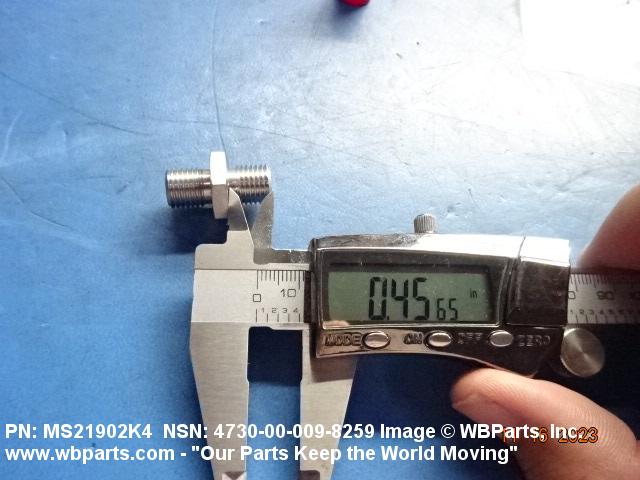

Drawings & Photos | NSN 4730-00-009-8259
Demand History | NSN 4730-00-009-8259
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21902K4 | 2023-10-300 | 20 | United States |
| MS21902K4 | 2023-09-270 | 20 | United States |
| MS21902K4 | 2022-08-215 | 2 | United States |
| 4730-00-009-8259 | 2022-07-195 | 34 | Malaysia |
| 4730-00-009-8259 | 2022-07-195 | 34 | Malaysia |
| 4730-00-009-8259 | 2021-12-339 | 720 | DIBBS |
| 4730-00-009-8259 | 2021-01-04 | 98 | DIBBS |
| MS21902K4 | 2019-01-02 | 2 | US |
| 4730-00-009-8259 | 2018-11-305 | 709 | DIBBS |
| 4730-00-009-8259 | 2018-07-193 | 503 | DIBBS |
| 4730-00-009-8259 | 2017-09-264 | 354 | DIBBS |
| MS21902K4 | 2017-09-262 | 80 | Serbia |
| MS21902K4 | 2017-04-94 | 10 | United States |
| 4730-00-009-8259 | 2017-04-92 | 137 | DIBBS |
| 4730-00-009-8259 | 2015-07-188 | 1 | United States |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-00-009-8259 | 2013-05-149 | 289 | DIBBS |
| AS21902 | 2012-10-285 | 1 | US |
| MS21902K4 | 2012-06-178 | 1 | US |
| MS21902K4 | 2012-04-93 | 28 | US |
| MS21902K4 | 2011-11-326 | 20 | Germany |
| MS21902K4 | 2009-05-128 | 4 | US |
| 4730-00-009-8259 | 2009-04-107 | 40 | DIBBS |
| 4730-00-009-8259 | 2009-03-78 | 223 | DIBBS |
| 4730-00-009-8259 | 2009-01-28 | 511 | DIBBS |
Cross Reference | NSN 4730-00-009-8259
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-009-8259
Related Products | NSN 4730-00-009-8259
Technical Data | NSN 4730-00-009-8259
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66,300 SERIES FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-F-14072,E300,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID 1ST RESPONSE AIR 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT 1ST RESPONSE -65.0 DEG FAHRENHEIT 2ND RESPONSE |
| STYLE DESIGNATOR | A66 FLARELESS W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B71A EXTERNAL SEAT FOR GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

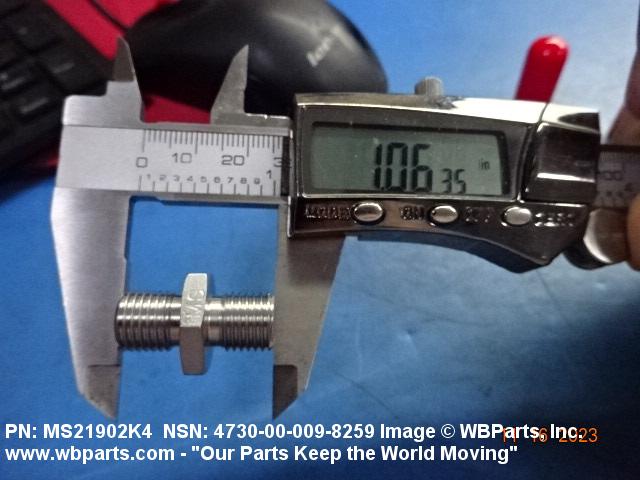

| NOMINAL OVERALL LENGTH | 1.062 INCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21902K4 |
Restrictions/Controls & Freight Information | NSN 4730-00-009-8259
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
