NSN 4730-00-007-5590 A51M6066211, A51M60662-11, 00-007-5590
Product Details | PACKING NUT
4730-00-007-5590 An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE.20210150024Guns, 75mm Through 125mm47300051Hose, Pipe, Tube, Lubrication, and Railing Fittings
Part Alternates: A51M6066211, A51M60662-11, 4730-00-007-5590, 00-007-5590, 4730000075590, 000075590
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 JUL 1972 | 00-007-5590 | 18028 ( PACKING NUT ) |
Drawings & Photos | NSN 4730-00-007-5590
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-007-5590
Technical Data | NSN 4730-00-007-5590
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-5000, COMP 4340 |
| SURFACE TREATMENT | CADMIUM |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

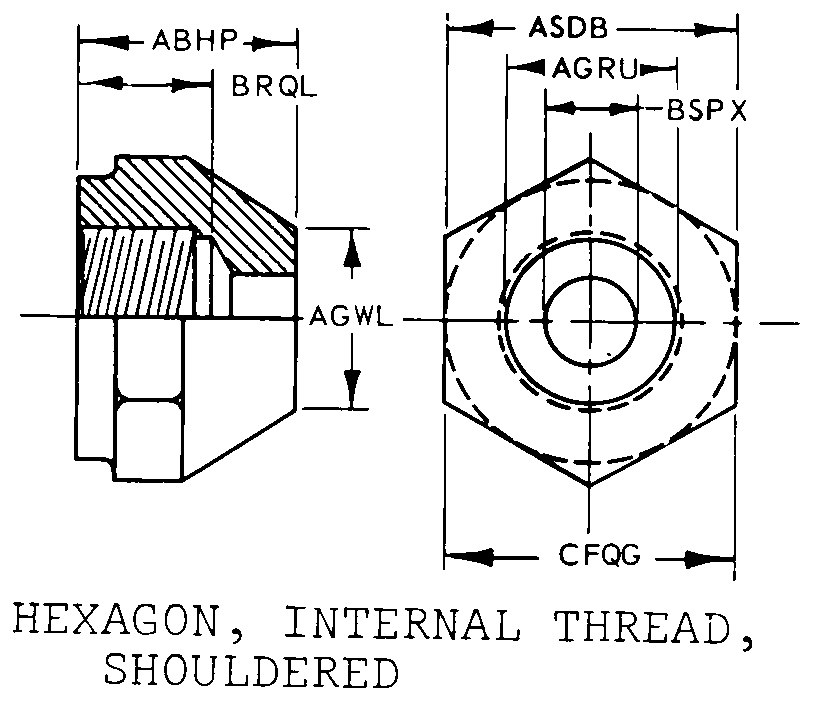

| STYLE DESIGNATOR | C23 HEXAGON, INTERNAL THREAD, SHOULDERED |
| OVERALL LENGTH | 0.355 INCHES NOMINAL |
| LARGEST INSIDE DIAMETER | 0.475 INCHES MINIMUM AND 0.485 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.233 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.311 INCHES MINIMUM AND 0.318 INCHES MAXIMUM |
| MAJOR UNTHREADED OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| THREAD SIZE | 0.469-32 |
| SCREW THREAD SERIES DESIGNATOR | NS-2 |
| THREAD PITCH DIAMETERS | 0.4484 TO 0.4517 INCHES |
| THREAD LENGTH | 0.233 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LOCATION | INTERNAL |
| SPECIAL FEATURES | THREE HOLES DRILLED THROUGH HEXAGON CORNERS 0.039 IN. MIN,0.044 IN. MAX |
| MANUFACTURERS CODE | 61174 |
| DESIGN CONTROL REFERENCE | A51M60662-11 |
Restrictions/Controls & Freight Information | NSN 4730-00-007-5590
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-007-5590
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
