NSN 4730-00-006-9373 AN7754J, AN775-4J, AS4875
Product Details | FLUID PASSAGE BOLT
4730-00-006-9373 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: AN7754J, AN775-4J, AS4875, AS5161, AS5161B, AS5161J04, 4730-00-006-9373, 00-006-9373, 4730000069373, 000069373
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 JUN 1972 | 00-006-9373 | 18683 ( BOLT, FLUID PASSAGE ) |

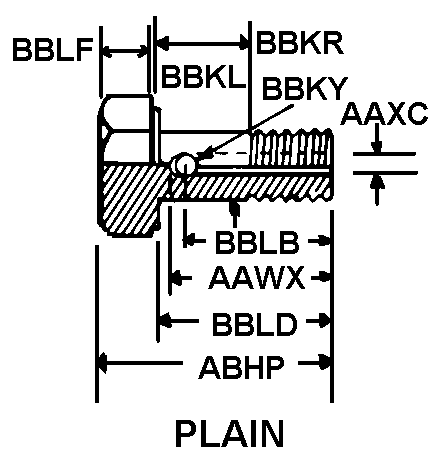

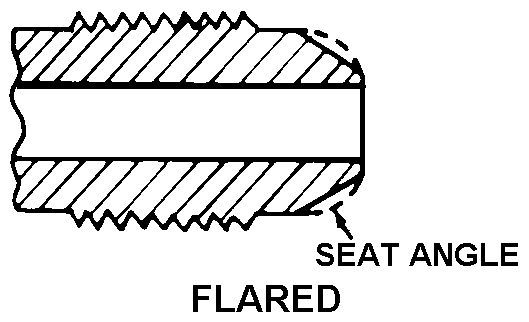

Drawings & Photos | NSN 4730-00-006-9373
Demand History | NSN 4730-00-006-9373
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-006-9373 | 2023-02-44 | 164 | DIBBS |
| 4730-00-006-9373 | 2022-11-334 | 38 | DIBBS |
| 4730-00-006-9373 | 2022-09-254 | 37 | DIBBS |
| 4730-00-006-9373 | 2022-09-244 | 34 | DIBBS |
| 4730-00-006-9373 | 2022-07-209 | 225 | DIBBS |
| 4730-00-006-9373 | 2021-11-305 | 71 | DIBBS |
| 4730-00-006-9373 | 2017-10-276 | 61 | DIBBS |
| 4730-00-006-9373 | 2017-09-253 | 61 | DIBBS |
| 4730-00-006-9373 | 2017-09-248 | 61 | DIBBS |
Cross Reference | NSN 4730-00-006-9373
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN775-4J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4875 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5161 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5161B | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5161J04 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-006-9373
Related Products | NSN 4730-00-006-9373
Technical Data | NSN 4730-00-006-9373
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS-QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE AND AMS 5639 FED SPEC 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| BODY STYLE | 2 PLAIN |
| CONCENTRIC HOLE DEPTH | 1.140 INCHES MINIMUM AND 1.171 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.156 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| OVERALL LENGTH | 1.375 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.435 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 1.172 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.781 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 1.172 INCHES MINIMUM AND 1.203 INCHES MAXIMUM |
| WRENCHING FEATURE HEIGHT | 0.203 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 FLARED |
| FIRST END SEAT ANGLE | 45.0 DEGREES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 20 |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.438 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 0.684 INCHES MINIMUM AND 0.692 INCHES MAXIMUM |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| SPECIFICATION/STANDARD DATA | 81343-AS4875 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 88044-AN775 GOVERNMENT STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | F/A-18 HORNET AIRCRAFT |
