NSN 4720-01-557-3008 5793265 FIND 204, 5793265FIND204, 6391034 FH-63
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-557-3008 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 5793265 FIND 204, 5793265FIND204, 6391034 FH-63, 6391034FH63, 7326639-18, 4720-01-557-3008, 01-557-3008, 4720015573008, 015573008, 732663918
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 OCT 2007 | 01-557-3008 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |
Drawings & Photos | NSN 4720-01-557-3008
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-557-3008
Related Products | NSN 4720-01-557-3008
Technical Data | NSN 4720-01-557-3008
| Characteristic | Specifications |
|---|---|
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 SINGLE RESPONSE |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 212.0 DEG FAHRENHEIT SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 2250.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| HYDROSTATIC TEST PRESSURE | 4500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| BURST TEST PRESSURE | 9000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| EXTERIOR COLOR | BLACK |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED FIBER |
| MEASURING METHOD AND LENGTH | 13.125 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 6.500 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | A1 ROUND |
| INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.138 INCHES NOMINAL |
| INSIDE SURFACE CONDITION | SMOOTH |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |

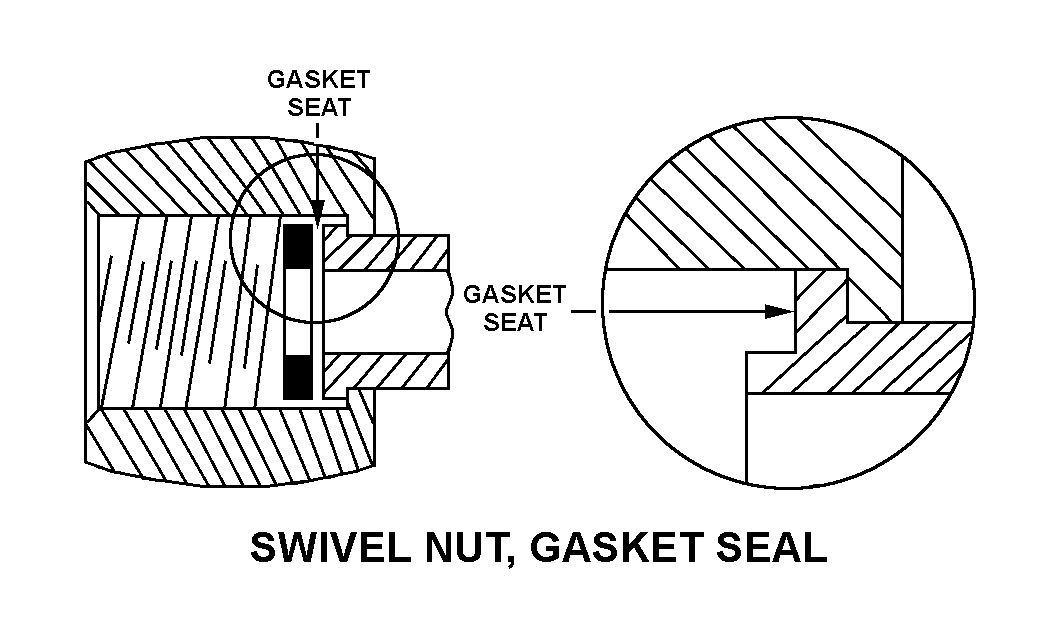

| CONNECTION STYLE | C5 SWIVEL NUT, GASKET SEAL ALL ENDS |
| END CONNECTION DESIGN | STRAIGHT ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |
| NOMINAL THREAD SIZE | 1.250 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES ALL ENDS |
| SPECIAL FEATURES | INNER TUBE NYLON WITH INTERNAL SUPPORT, SAE 100R8; TWO LAYERS REINFORCEMENT; FITTING MATERIAL INCONNEL; NUT HAS LOCKWIRE HOLES, MATES TO CPV H849T-12 |
| END ITEM IDENTIFICATION | MIDBODY EXTERNAL PIPING |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FLEX HOSE ASSEMBLY, ACL-FH-63 |
Restrictions/Controls & Freight Information | NSN 4720-01-557-3008
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-557-3008
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
