NSN 4720-01-498-6253 AC31GA0272EE, AC31ZA0000EE, 01-498-6253
Product Details | HOSE
4720-01-498-6253 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: AC31GA0272EE, AC31ZA0000EE, 4720-01-498-6253, 01-498-6253, 4720014986253, 014986253
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 JUN 2002 | 01-498-6253 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |
Drawings & Photos | NSN 4720-01-498-6253
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-498-6253
Related Products | NSN 4720-01-498-6253
Technical Data | NSN 4720-01-498-6253
| Characteristic | Specifications |
|---|---|
| MAXIMUM OPERATING PRESSURE | 4000.0 POUNDS PER SQUARE INCH |
| MEASURING METHOD AND LENGTH | 27.250 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 2.500 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | A1 ROUND |
| INSIDE DIAMETER | 0.330 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.640 INCHES NOMINAL |

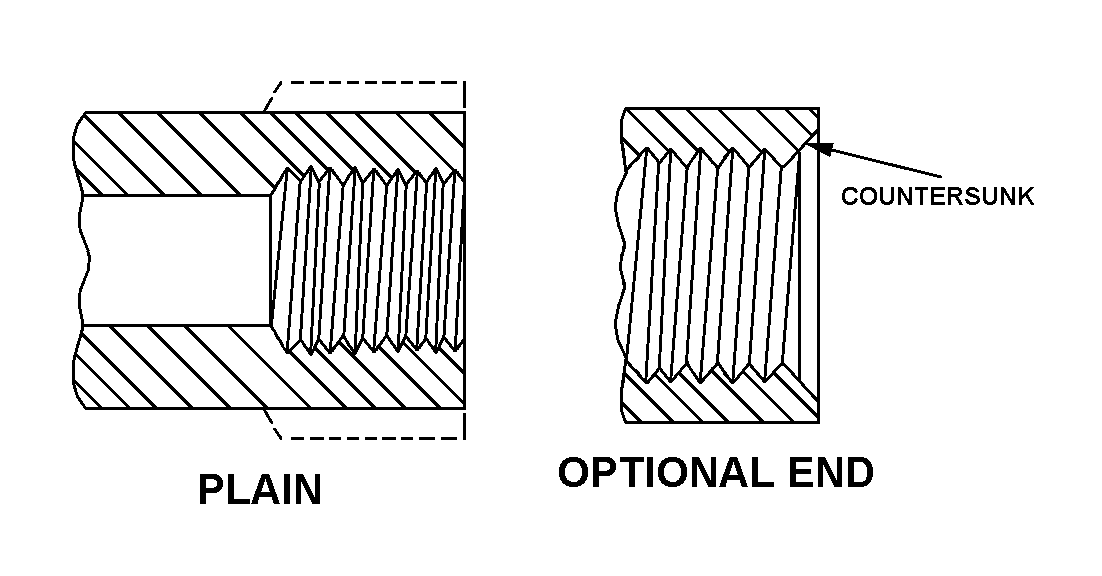

| CONNECTION STYLE | C16 PLAIN OPTIONAL END ALL ENDS |
| END CONNECTION DESIGN | STRAIGHT ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJS ALL ENDS |
| THREAD QUANTITY PER INCH | 20 ALL ENDS |
| SPECIAL FEATURES | ASSY INCLUDES TWO NIPPLE SUB ASSY, P/N AE60808, 2 SOCKETS, P/N AE28571, HOSE (AR) AE319 AND SLEEVE (AR), P/N AE105;PROOF PRESSURE, 8000 PSIG; MAXIMUM OPERATING PRESSURE, 4000 PSIG; MATES WITH MALE END PER MIL-F-85421 |
| END ITEM IDENTIFICATION | F-22 RAPTOR |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | HOSE ASSEMBLY RH, TEFLON HIGH PRESSURE, CRIMPED |
| (NON-CORE DATA) SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| (NON-CORE DATA) INNER CONVEYING TUBE MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE |
Restrictions/Controls & Freight Information | NSN 4720-01-498-6253
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4720-01-498-6253
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | FR | TL:F-22 AIRCRAFT |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F01 | Lockheed Martin Aeronautical Systems Marietta, GA 30063-0659 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
