NSN 4720-01-467-6630 4318, 431-8, 01-467-6630
Product Details | NONMETALLIC HOSE
4720-01-467-6630 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 4318, 431-8, 4720-01-467-6630, 01-467-6630, 4720014676630, 014676630
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 SEP 1999 | 01-467-6630 | 22670 ( HOSE, NONMETALLIC ) |

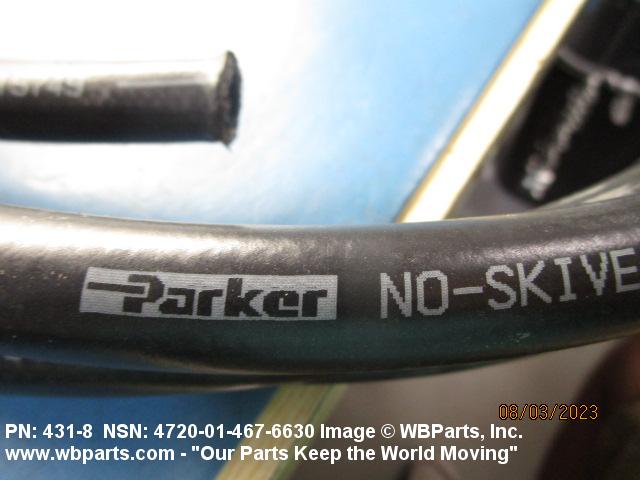

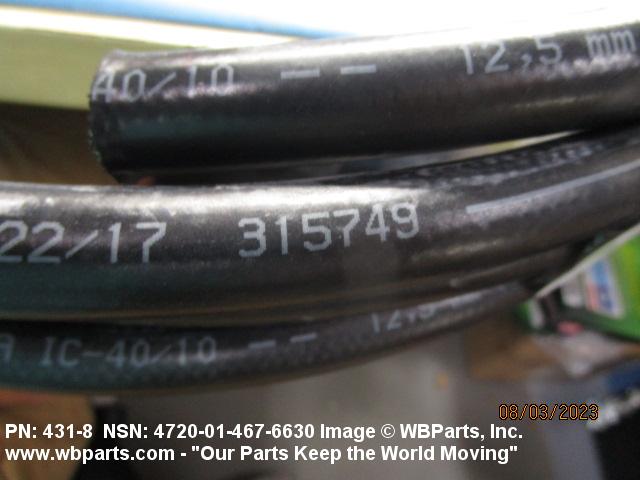

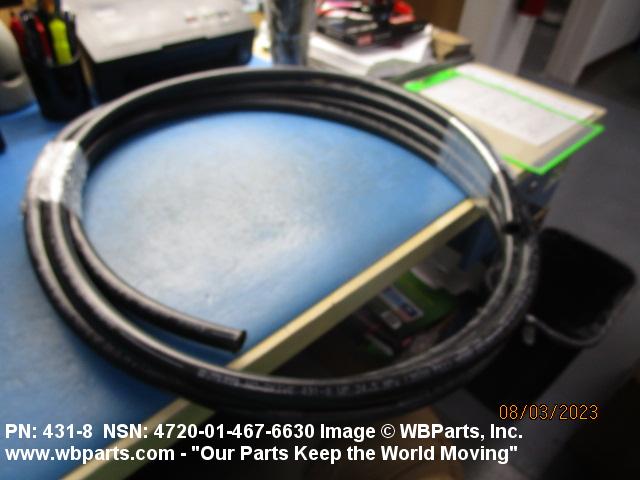

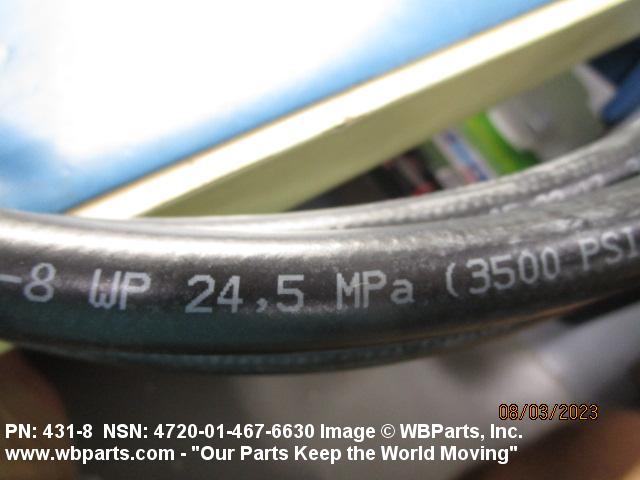

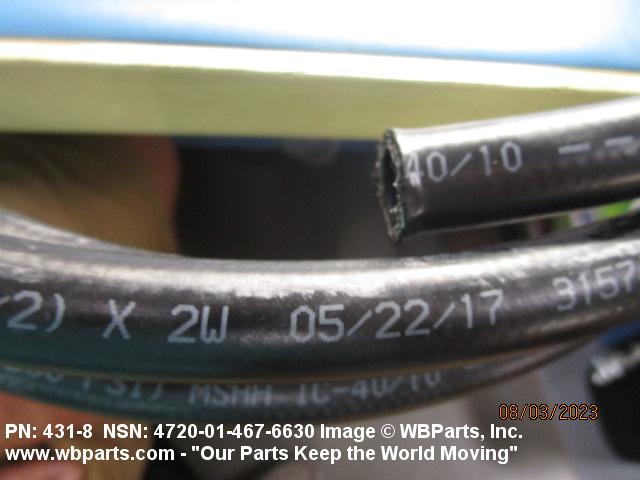

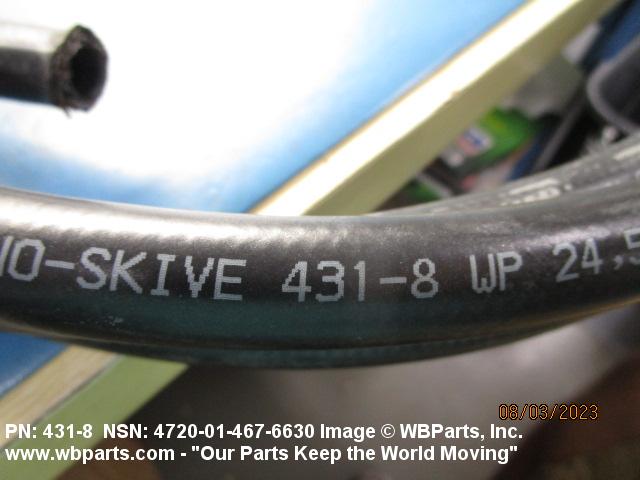

Drawings & Photos | NSN 4720-01-467-6630
Demand History | NSN 4720-01-467-6630
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 431-8 | 2024-03-81 | 257 | DIBBS |
| 431-8 | 2023-11-332 | 257 | DIBBS |
| 4720-01-467-6630 | 2023-07-209 | 20 | United States |
| 431-8 | 2023-07-197 | 20 | DIBBS |
| 431-8 | 2019-09-262 | 210 | DIBBS |
| 431-8 | 2019-09-251 | 210 | DIBBS |
| 431-8 | 2019-06-178 | 210 | DIBBS |
| 4720-01-467-6630 | 2012-03-68 | 62 | DIBBS |
| 4720-01-467-6630 | 2011-09-245 | 45 | DIBBS |
| 4720-01-467-6630 | 2009-03-85 | 180 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-467-6630
Related Products | NSN 4720-01-467-6630
Technical Data | NSN 4720-01-467-6630
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON AND AIR AND WATER |
| OUTER COVERING ENVIRONMENTAL PROTECTION | ABRASION RESISTANT |
| EXTERIOR COLOR | BLACK |

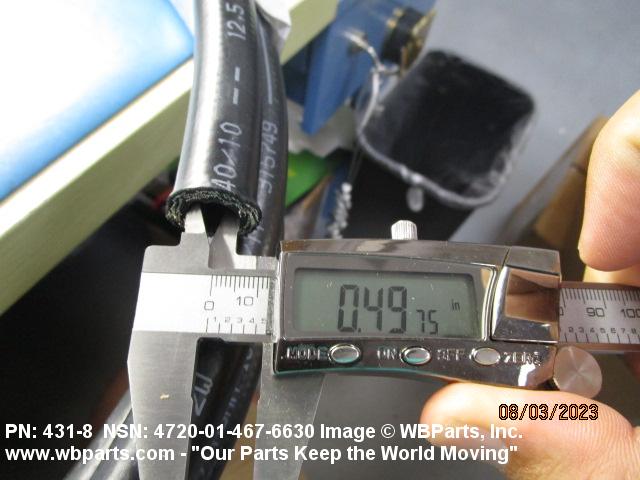

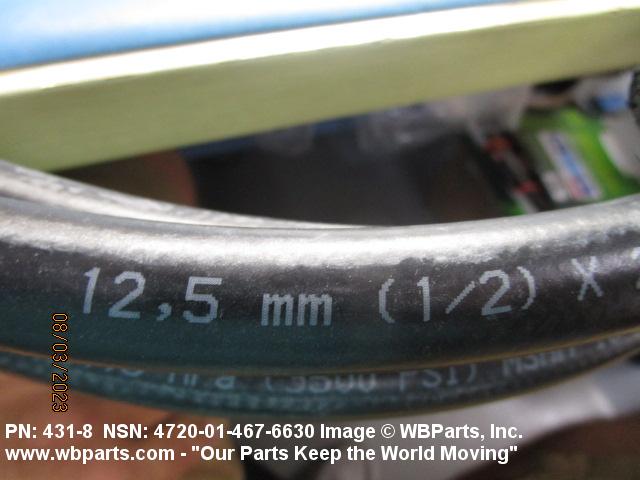

| INSIDE DIAMETER | 0.5000 INCHES NOMINAL |

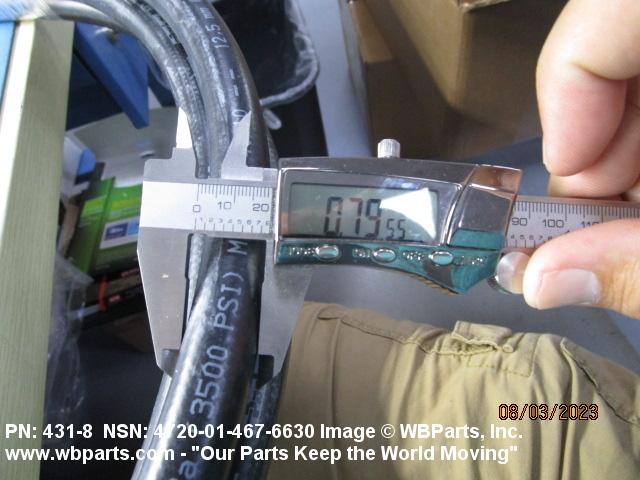

| OUTSIDE DIAMETER | 0.810 INCHES NOMINAL |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 250.0 DEG FAHRENHEIT |

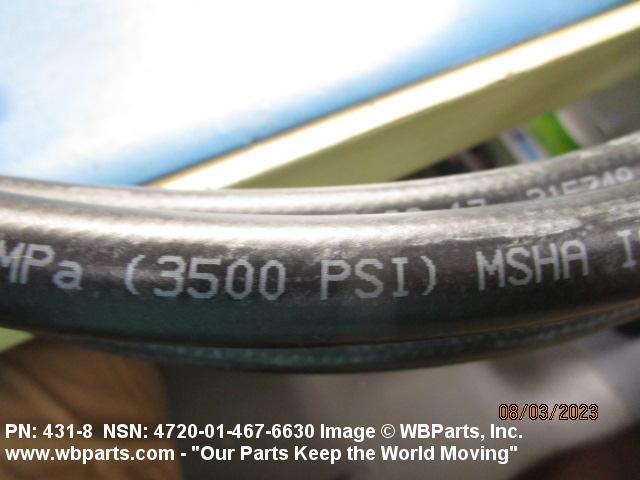

| MAXIMUM OPERATING PRESSURE | 3500.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 14000.0 POUNDS PER SQUARE INCH |

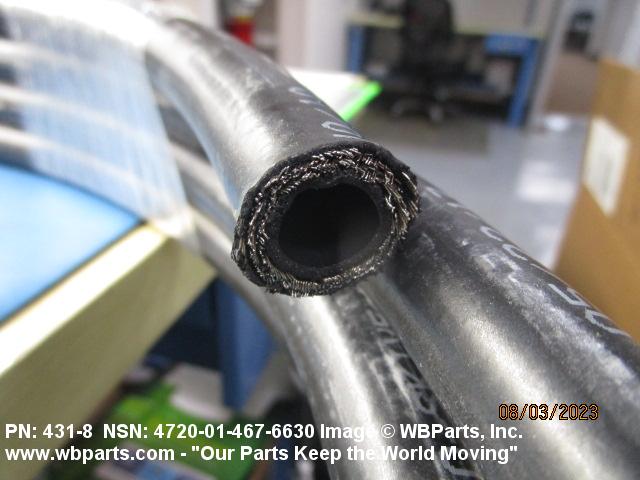

| SPECIAL FEATURES | SYNTHETIC RUBBER INNER TUBE, TWO BRAIDS OF HIGH TENSILE STEEL WIRE REINFORCEMENT SEPARATED BY SYNTHETIC LAYER; OIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBER BLACK OUTER COVER. EMBOSSED LAYLINE. MSHA ACCEPTED COVER; FOR AIR OR GAS APPLICATION ABOVE 250 PSI, THE COVER SHOULD BE PINPRICKED; TEMP MAX FOR WATER-GLYCOL, WATER-OIL EMULSION HYDRAULIC FLUIDS, AND WATER: 180(F); TEMP MAX FOR AIR: 150(F) |
| III END ITEM IDENTIFICATION | USNS STALWART CLLASS TAGOS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | COMPACT HOSE |
Restrictions/Controls & Freight Information | NSN 4720-01-467-6630
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-467-6630
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
X FT : Foot |
