NSN 4720-01-467-3094 AN62704S5400, AN6270-4S-5400, 01-467-3094
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-467-3094 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: AN62704S5400, AN6270-4S-5400, 4720-01-467-3094, 01-467-3094, 4720014673094, 014673094
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 AUG 1999 | 01-467-3094 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

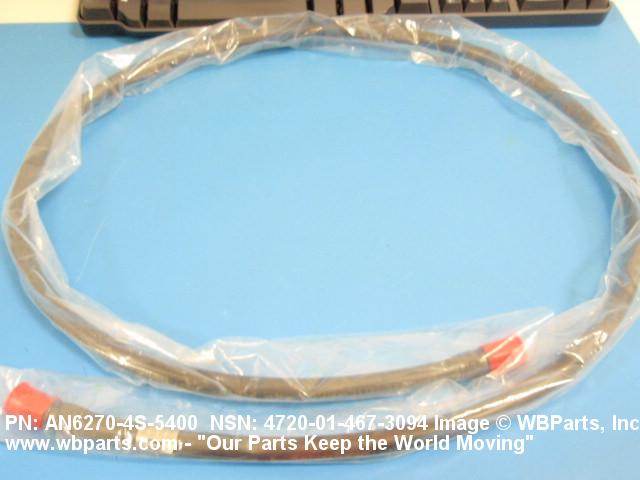

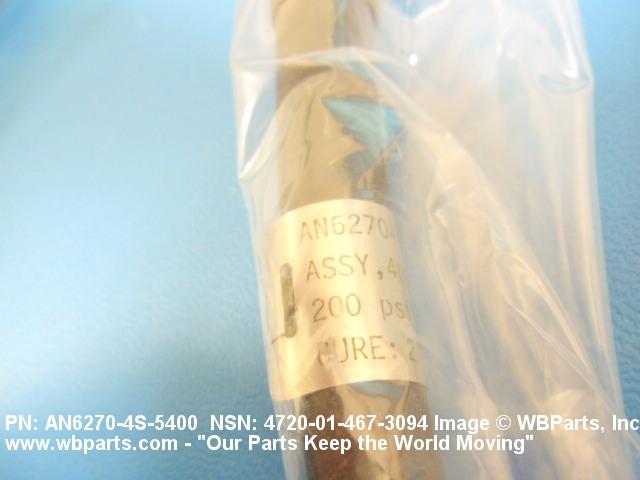

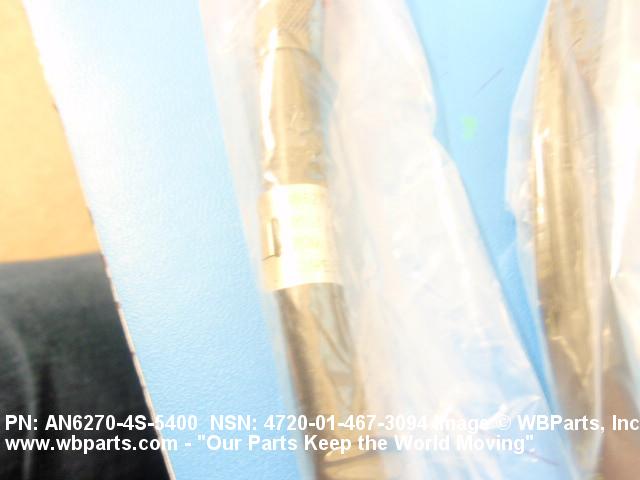

Drawings & Photos | NSN 4720-01-467-3094
Demand History | NSN 4720-01-467-3094
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN62704S5400 | 2008-11-318 | 1 | United States |
| AN62704S5400 | 2008-11-316 | 1 | United States |
Cross Reference | NSN 4720-01-467-3094
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN6270-4S-5400 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-467-3094
Related Products | NSN 4720-01-467-3094
Technical Data | NSN 4720-01-467-3094
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL-H-593, SIZE 4 SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | AIR |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED COTTON CORD OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| EXTERIOR COLOR | BLACK |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.453 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| MEASURING METHOD AND LENGTH | 540.000 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 4.000 INCHES |
| FIRST END FITTING SPEC/STD DATA | MS27404-4P SPECIFICATION |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 160.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 400.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 1250.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | REUSABLE END FITTINGS |
| SPECIAL FEATURES | PART CAN BE FABRICATED FROM HOSE 4720-00-540-1962 AND STEEL FITTING NSN 4730-00-423-0080 |
| III END ITEM IDENTIFICATION | CBIL, SUPPORT EQUIPMENT (SE), B-2 BOMBER AIRCRAFT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN6270-4S-5400 |
