NSN 4720-01-465-3704 C20469, C20469B06K0164, 55094C0164J

Product Details | AIR BREATHING HOSE ASSEMBLY

4720-01-465-3704 A length of HOSE, AIR BREATHING with couplings on one or both ends and/or a communication cable. Excludes items which include a branch hose or fork hoses; wiring for face mask heater; vent and pressure ducts for an anti-G-suit; HOSE ASSEMBLY, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies

Part Alternates: C20469, C20469B06K0164, 55094C0164J, 4720-01-465-3704, 01-465-3704, 4720014653704, 014653704

Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	03 JUN 1999	01-465-3704	39227 ( HOSE ASSEMBLY, AIR BREATHING )

Drawings & Photos | NSN 4720-01-465-3704

Part Number	Request Date	QTY	Origin
55094C0164J	2024-06-176	14	DIBBS
C20469B06K0164	2024-06-176	14	DIBBS
4720-01-465-3704	2016-06-164	14	DIBBS
4720-01-465-3704	2015-08-242	14	DIBBS
4720-01-465-3704	2013-03-88	7	DIBBS
4720-01-465-3704	2012-09-251	4	DIBBS
4720-01-465-3704	2012-09-249	2	DIBBS
4720-01-465-3704	2012-03-68	2	DIBBS
4720-01-465-3704	2011-08-238	2	DIBBS
4720-01-465-3704	2011-07-194	3	DIBBS
4720-01-465-3704	2010-08-242	2	DIBBS
4720-01-465-3704	2010-01-15	3	DIBBS
4720-01-465-3704	2010-01-08	2	DIBBS

Cross Reference | NSN 4720-01-465-3704

Part Number	Cage Code	Manufacturer
55094C0164J	24984	HYDRAFLOW
C20469	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
C20469B06K0164	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4720-01-465-3704

Compare

Related Products | NSN 4720-01-465-3704

4720-01-465-3707, 4720-01-465-3708, 4720-01-465-3709, 4720-01-465-3743, 4720-01-465-3745

Technical Data | NSN 4720-01-465-3704

Characteristic	Specifications
MATERIAL	RUBBER 1ST PLY STEEL CORROSION RESISTING 3RD PLY PLASTIC POLYAMIDE 4TH PLY PLASTIC POLYAMIDE 5TH PLY STEEL CORROSION RESISTING REINFORCING WIRE PLASTIC POLYESTER COVER
MATERIAL DOCUMENT AND CLASSIFICATION	ZZ-R-765,CLASS 2A,GRADE 70 FED SPEC SINGLE MATERIAL RESPONSE 1ST PLY ASTM-A-313 ASSN STD SINGLE MATERIAL RESPONSE 3RD PLY QQ-A-225/6,T6 FED SPEC 1ST MATERIAL RESPONSE AND QQ-A-367,T6 FED SPEC 2ND MATERIAL RESPONSE AND QQ-A-225/8,T6 FED SPEC 3RD MATERIAL RESPONSE 1ST END COUPLING QQ-A-225/6,T6 FED SPEC 1ST MATERIAL RESPONSE AND QQ-A-225/6,T6 FED SPEC 2ND MATERIAL RESPONSE AND QQ-A-225/8,T6 FED SPEC 3RD MATERIAL RESPONSE 2ND END COUPLING ASTM-A-313 ASSN STD SINGLE MATERIAL RESPONSE REINFORCING WIRE AIR1785 MIL SPEC SINGLE MATERIAL RESPONSE COVER
SURFACE TREATMENT	PASSIVATE 3RD PLY ANODIZE 1ST END COUPLING ANODIZE 2ND END COUPLING PASSIVATE REINFORCING WIRE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OR ASTM-A-380 NATIONAL SPEC SINGLE TREATMENT RESPONSE 3RD PLY MIL-A-8625 MIL SPEC ALL TREATMENT RESPONSES 1ST END COUPLING MIL-A-8625 MIL SPEC ALL TREATMENT RESPONSES 2ND END COUPLING QQ-P-353JGAASTM-A-380 FED SPEC SINGLE TREATMENT RESPONSE REINFORCING WIRE
STYLE DESIGNATOR	A4 HELICALLY WOUND CONTINUOUS WIRE SUPPORTED
CROSS-SECTIONAL SHAPE STYLE	B3 ROUND
MEASURING METHOD AND LENGTH	16.500 INCHES NOMINAL OVERALL

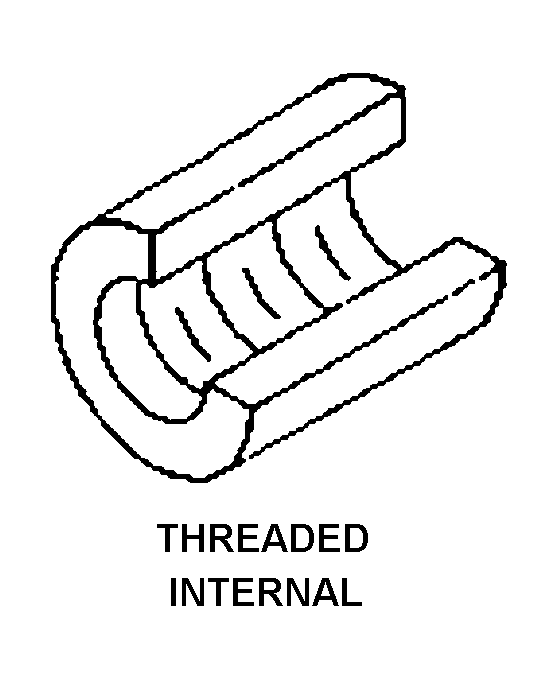

COUPLING STYLE	D9 THREADED INTERNAL BOTH ENDS
THREAD SERIES DESIGNATOR	UNJF BOTH ENDS
NOMINAL THREAD SIZE	0.563 INCHES BOTH ENDS
THREAD QUANTITY PER INCH	18 BOTH ENDS
THREAD TOLERANCE CLASS	3B INTERNAL BOTH ENDS
MINIMUM INSIDE BENDING RADIUS	1.250 INCHES
MAXIMUM OPERATING PRESSURE	500.0 POUNDS PER SQUARE INCH
FEATURES PROVIDED	FLAME RESISTANT
SPECIAL FEATURES	MATTERIAL FOR INNER AND OUTER BRAID IS NOMEX ARAMID YARN, HOSE ASSEMBLY CONNECTORS ARE 37 DEGREE FLARE NUT TYPE; 1ST END AT 90 DEGREE BEND; 2ND END STRAIGHT; BOTH FEMALE FLARE; HOSE OUTER

Restrictions/Controls & Freight Information | NSN 4720-01-465-3704

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	051140	HOSE:NOI TUBING
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	796	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4720-01-465-3704

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	WF	SU:F-16 AIR COMBAT FIGHTER
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
