NSN 4720-01-460-5862 LSCP360008, 01-460-5862, 014605862
Product Details | PREFORMED HOSE
4720-01-460-5862 A length of nonmetallic hose, molded to a predetermined shape and size.
Part Alternates: LSCP360008, 4720-01-460-5862, 01-460-5862, 4720014605862, 014605862
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 NOV 1998 | 01-460-5862 | 17271 ( HOSE, PREFORMED ) |
Drawings & Photos | NSN 4720-01-460-5862
Cross Reference | NSN 4720-01-460-5862
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LSCP360008 | 01417 | GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-460-5862
Related Products | NSN 4720-01-460-5862
Technical Data | NSN 4720-01-460-5862
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, MIL-R-3065, TYPE S, CLASS SB, GRADE 612AEZ |

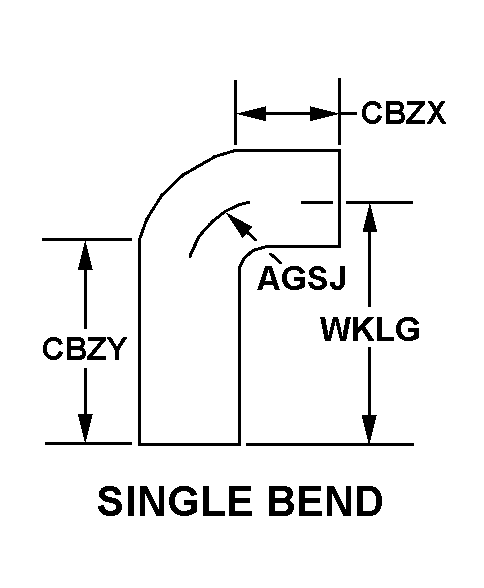

| STYLE DESIGNATOR | C4 SINGLE BEND |
| EFFECTIVE LENGTH | 4.500 INCHES NOMINAL |
| BEND RADIUS | 2.620 INCHES NOMINAL |
| FIRST ARM LENGTH | 1.880 INCHES NOMINAL |
| SECOND ARM LENGTH | 1.880 INCHES NOMINAL |
| ENLARGED END | NOT PROVIDED |
| WALL THICKNESS | 0.170 INCHES NOMINAL |
| HOSE INSIDE DIAMETER | 2.000 INCHES NOMINAL |
| PROTECTIVE CAP | NOT INCLUDED |
| III END ITEM IDENTIFICATION | M1 ABRAHMS LAUNCHER AND PORTABLE BRIDGE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HOSE, AIR DUCT/ELBOW |
Restrictions/Controls & Freight Information | NSN 4720-01-460-5862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-460-5862
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
