NSN 4720-01-454-7658 12366135, 12366135-3, 01-454-7658
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-454-7658 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 12366135, 12366135-3, 4720-01-454-7658, 01-454-7658, 4720014547658, 014547658, 123661353
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 APR 1998 | 01-454-7658 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |
Drawings & Photos | NSN 4720-01-454-7658
Demand History | NSN 4720-01-454-7658
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-454-7658 | 2023-08-215 | 35 | DIBBS |
| 4720-01-454-7658 | 2022-11-308 | 33 | DIBBS |
| 4720-01-454-7658 | 2022-10-293 | 33 | DIBBS |
| 4720-01-454-7658 | 2022-07-206 | 12 | DIBBS |
| 4720-01-454-7658 | 2022-07-195 | 12 | DIBBS |
| 4720-01-454-7658 | 2019-07-185 | 44 | DIBBS |
| 12366135-3 | 2019-03-62 | 45 | DIBBS |
| 4720-01-454-7658 | 2018-05-121 | 1 | United States |
| 4720-01-454-7658 | 2018-05-121 | 1 | United States |
| 4720-01-454-7658 | 2016-01-22 | 1 | DIBBS-RFPs |
| 4720-01-454-7658 | 2015-04-96 | 3 | DIBBS |
| 4720-01-454-7658 | 2015-03-84 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-454-7658
Related Products | NSN 4720-01-454-7658
Technical Data | NSN 4720-01-454-7658
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON AND HYDRAULIC FLUID, WATER BASE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED WIRE 2ND LAYER BRAIDED WIRE OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.500 INCHES NOMINAL |

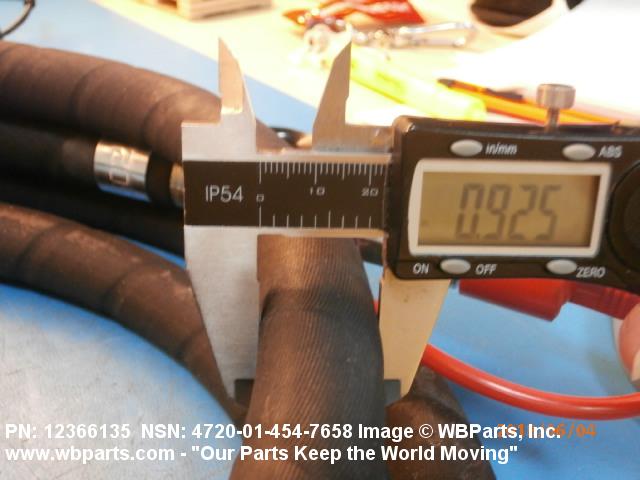

| OUTSIDE DIAMETER | 0.970 INCHES NOMINAL |

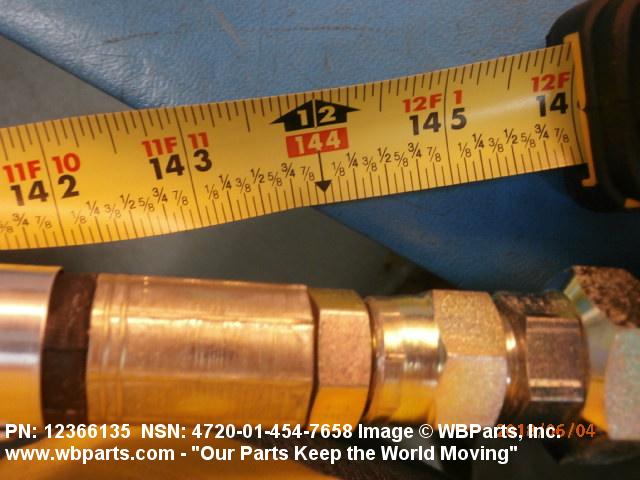

| MEASURING METHOD AND LENGTH | 144.000 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 7.000 INCHES |

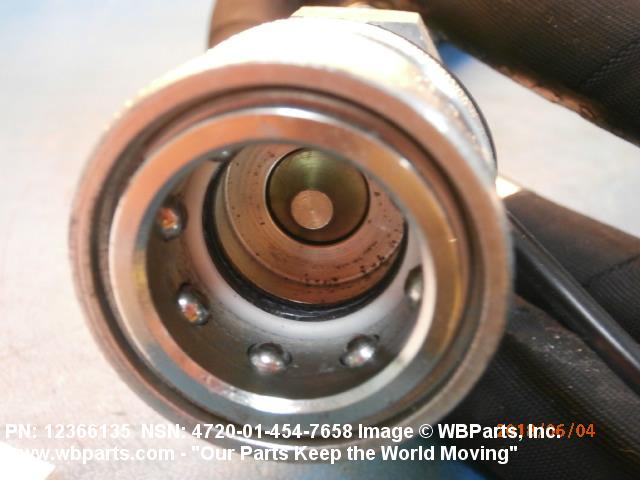

| FIRST END CONNECTION TYPE | INTERNAL QUICK DISCONNECT |
| FIRST END STYLE DESIGNATOR | H5 PUSH |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL |
| FIRST END QUICK DISCONNECT NOMINAL SIZE | 0.500 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

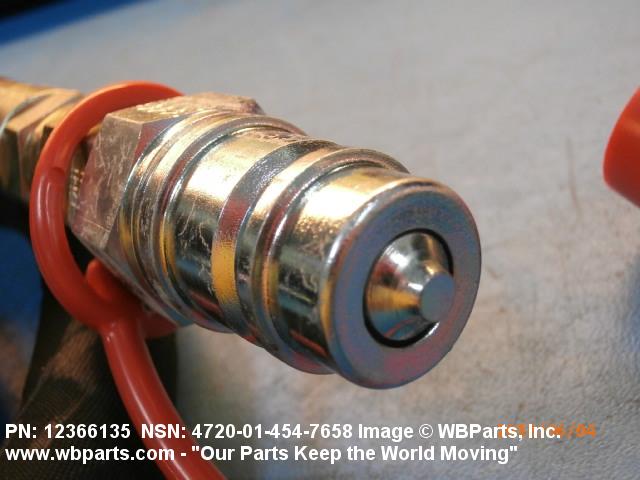

| SECOND END CONNECTION TYPE | EXTERNAL QUICK DISCONNECT |
| SECOND END STYLE DESIGNATOR | H6 PUSH |
| SECOND END CONNECTION DESIGN | STRAIGHT |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL |
| SECOND END QUICK DISCONNECT NOMINAL SIZE | 0.500 INCHES |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 212.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 4250.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 17000.0 POUNDS PER SQUARE INCH |

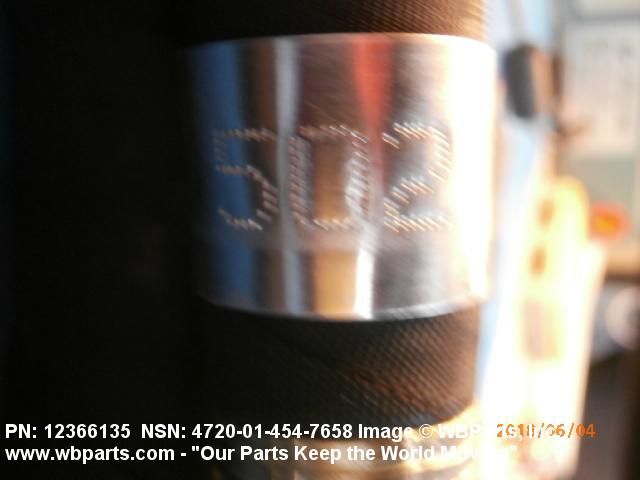

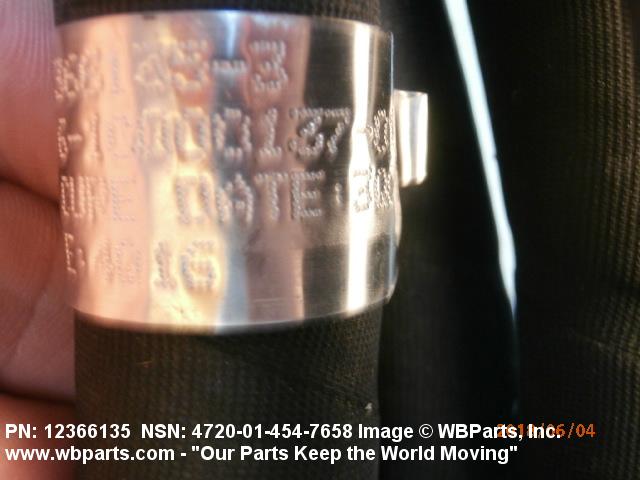

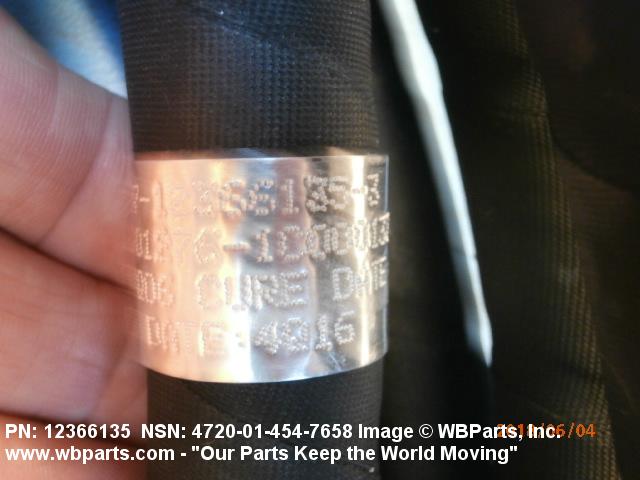

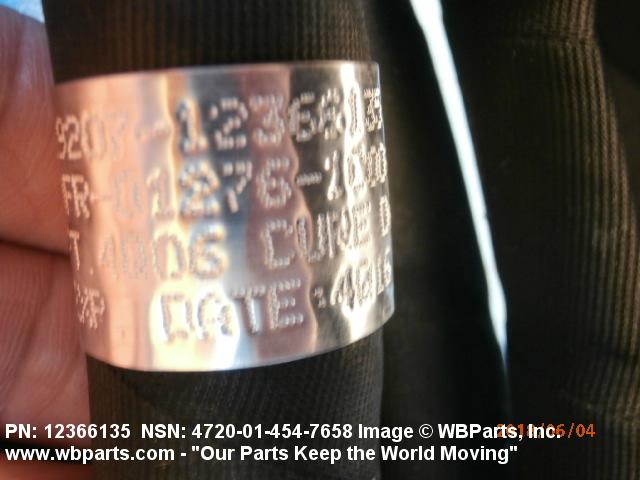

| SPECIAL FEATURES | INCLUDES: ADAPTER,2; PLUG,1;CAP,1; BANDMARKER,5 |
| III END ITEM IDENTIFICATION | 2350-01-390-4683 |
Restrictions/Controls & Freight Information | NSN 4720-01-454-7658
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-454-7658
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
