NSN 4720-01-449-3620 11472589, 11472589-8, 1211031124BFTTH
Product Details | NONMETALLIC TUBING
4720-01-449-3620 An item of varying tubular shapes molded or extruded from nonmetallic material. It includes flat form plastic tubing designed to be expanded for use and rubber tubing designed to be fabricated into sealing and/or cushioning devices. Excludes HOSE, NONMETALLIC and TUBE (as modified).20247100027Pipe, Tube and Rigid Tubing47200024Hose and Flexible Tubing
Part Alternates: 11472589, 11472589-8, 1211031124BFTTH, 121-103-1-1-24BFTTH, 4720-01-449-3620, 01-449-3620, 4720014493620, 014493620, 114725898
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 SEP 1997 | 01-449-3620 | 31934 ( TUBING, NONMETALLIC ) |

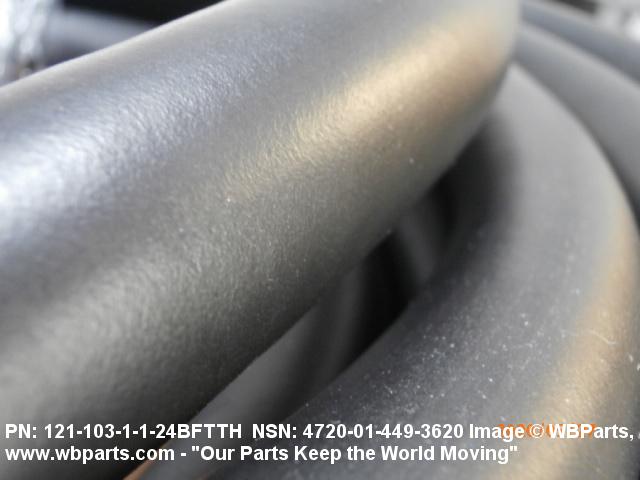

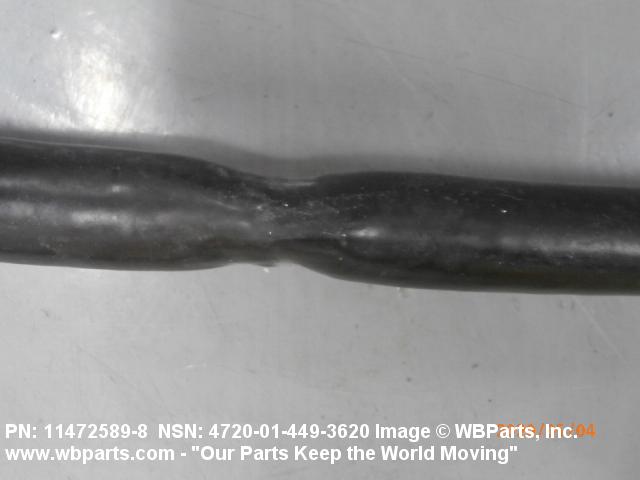

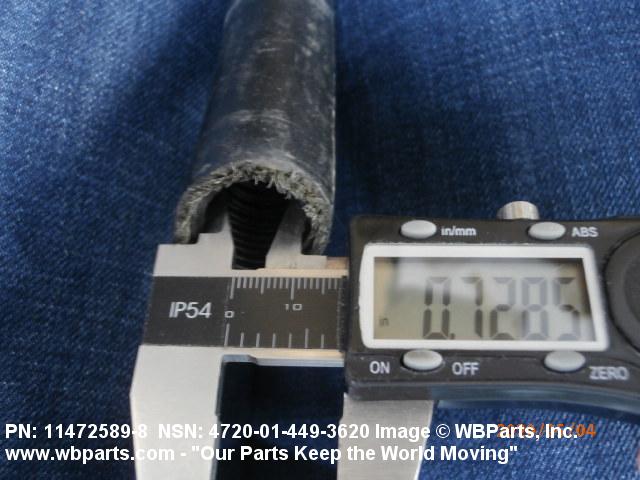

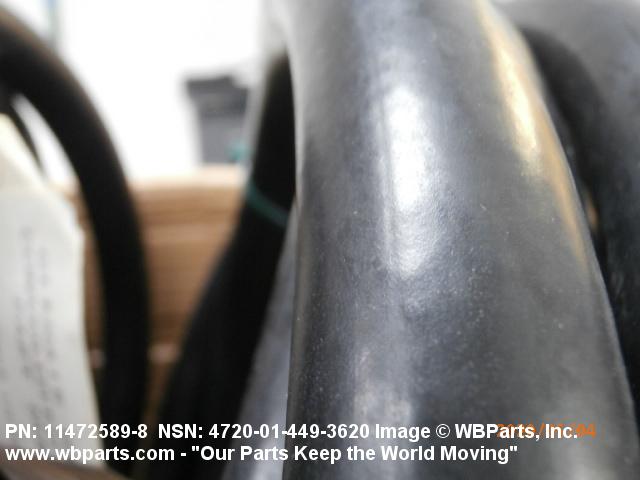

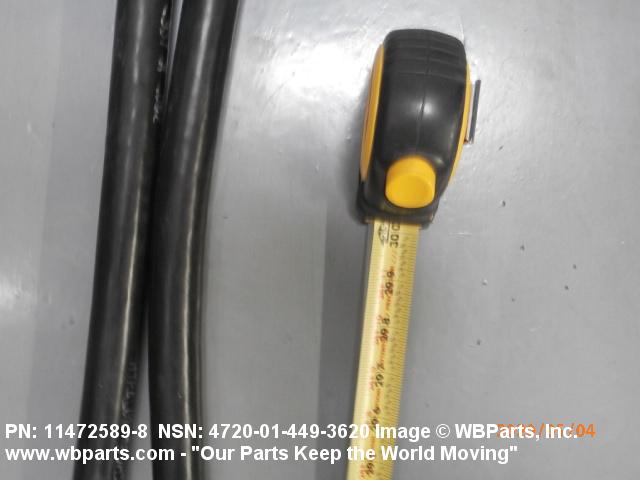

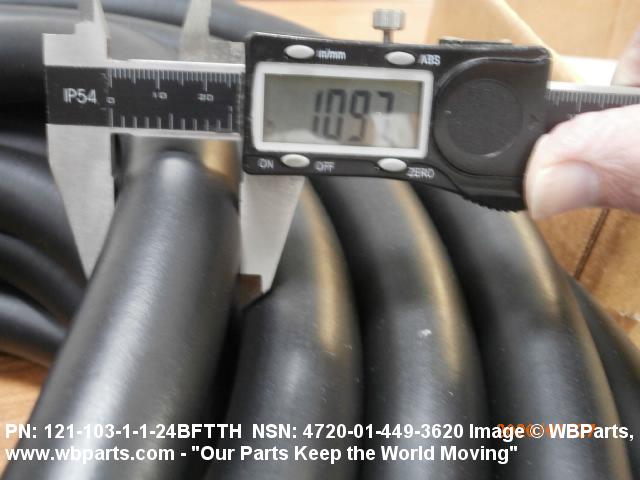

Drawings & Photos | NSN 4720-01-449-3620
Demand History | NSN 4720-01-449-3620
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-449-3620 | 2024-07-202 | 450 | US |
| 121-103-1-1-24BFTTH | 2023-06-173 | 14 | DIBBS |
| 121-103-1-1-24BFTTH | 2022-06-180 | 8 | DIBBS |
| 121-103-1-1-24BFTTH | 2022-04-94 | 4 | DIBBS |
| 121-103-1-1-24BFTTH | 2021-08-243 | 4 | DIBBS |
| 121-103-1-1-24BFTTH | 2021-01-07 | 1 | DIBBS |
| 4720-01-449-3620 | 2020-06-174 | 50 | United States |
| 4720-01-449-3620 | 2020-06-155 | 50 | United States |
| 121-103-1-1-24BFTTH | 2020-05-139 | 5 | DIBBS |
| 4720-01-449-3620 | 2020-03-90 | 50 | United States |
| 4720-01-449-3620 | 2020-02-37 | 2 | United States |
| 4720-01-449-3620 | 2018-06-155 | 7 | DIBBS |
| 4720-01-449-3620 | 2018-05-144 | 7 | DIBBS |
| 4720-01-449-3620 | 2012-09-260 | 12 | DIBBS |
| 4720-01-449-3620 | 2011-06-167 | 25 | DIBBS |
| 4720-01-449-3620 | 2011-06-154 | 26 | DIBBS |
| 4720-01-449-3620 | 2011-02-56 | 74 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-449-3620
Related Products | NSN 4720-01-449-3620
Technical Data | NSN 4720-01-449-3620
| Characteristic | Specifications |
|---|---|
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TUBING MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.725 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.150 INCHES MAXIMUM |
| MEASURING METHOD AND LENGTH | 12.0 FEET NOMINAL OVERALL |
| FLEXIBILITY | FLEXIBLE |
| MINIMUM INSIDE BENDING RADIUS | 2.000 INCHES |
| TEMP RATING | -46.0 DEG CELSIUS AND 85.0 DEG CELSIUS |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | NOT RATED |
| III END ITEM IDENTIFICATION | 1430-01-418-4396 |
Restrictions/Controls & Freight Information | NSN 4720-01-449-3620
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 843 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-449-3620
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 RO : Roll |
