NSN 4720-01-131-2432 MS2892040284, MS28920-40284 , MS28920-4-0284

Product Details | NONMETALLIC HOSE ASSEMBLY

4720-01-131-2432 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing

Part Alternates: MS2892040284, MS28920-40284 , MS28920-4-0284, MS28920E0284, MILDTL8790, MIL-DTL-8790, 4720-01-131-2432, 01-131-2432, 4720011312432, 011312432

Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	06 MAY 1982	01-131-2432	20311 ( HOSE ASSEMBLY, NONMETALLIC )

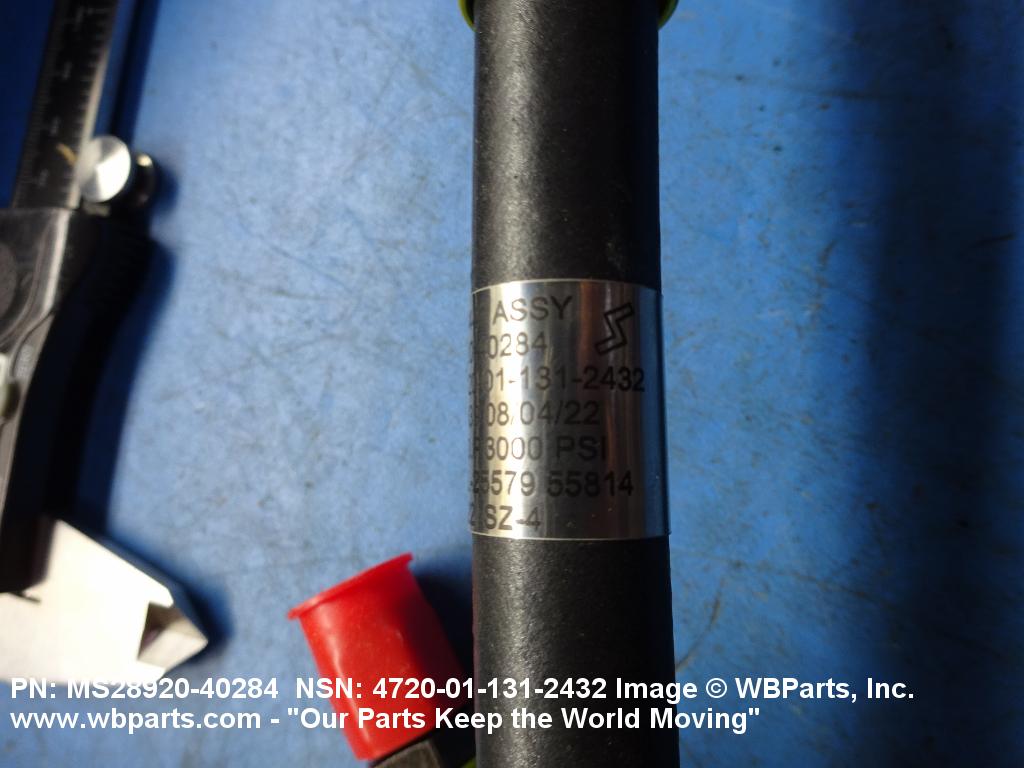

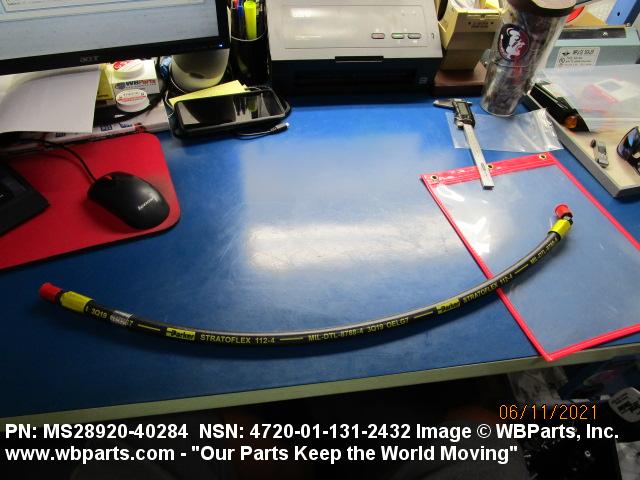

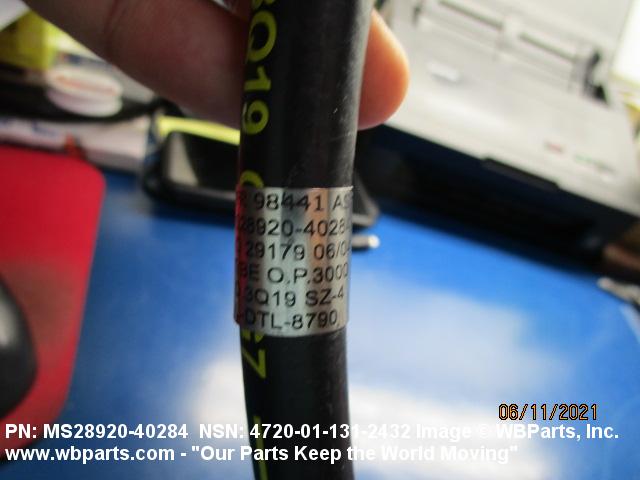

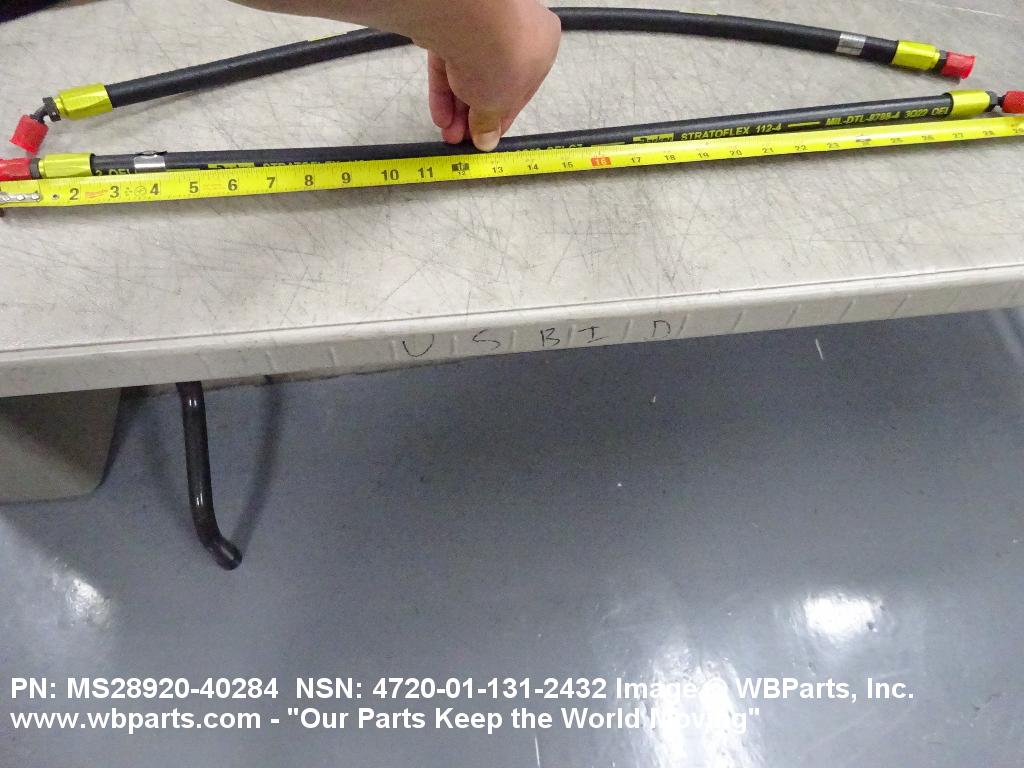

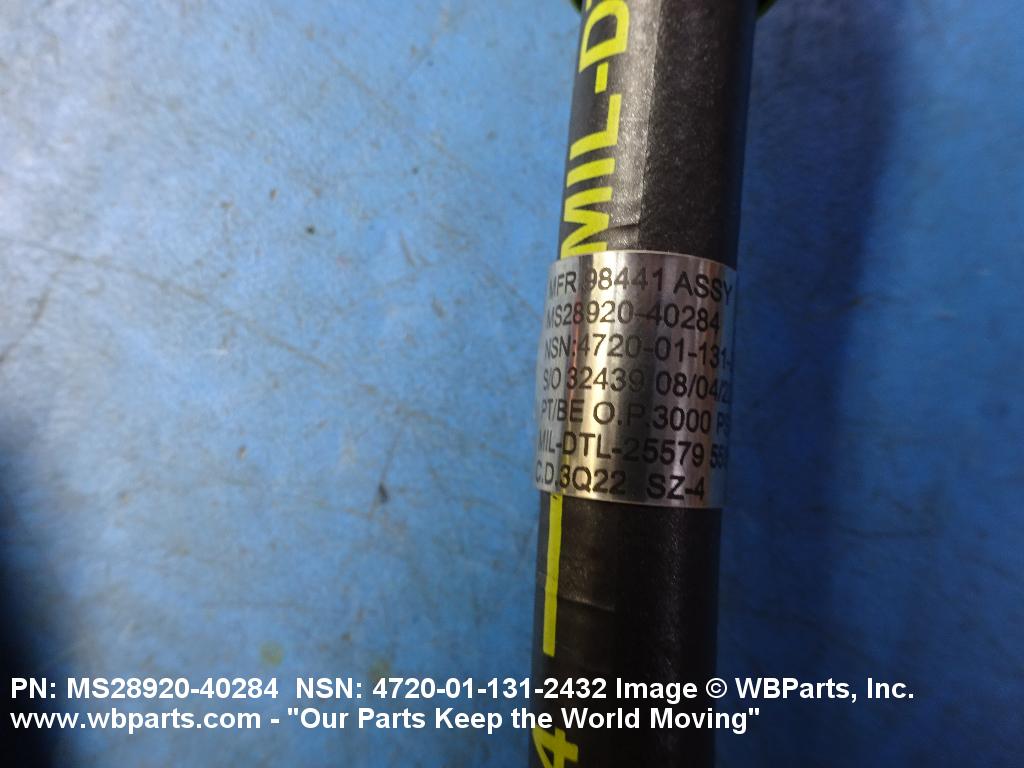

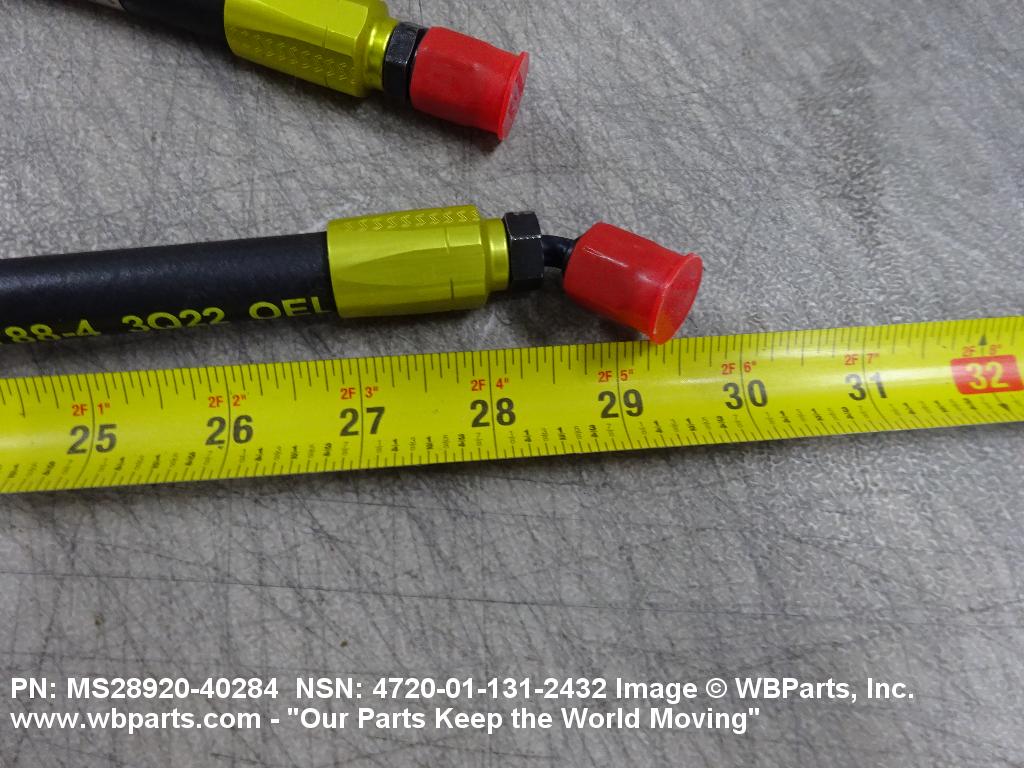

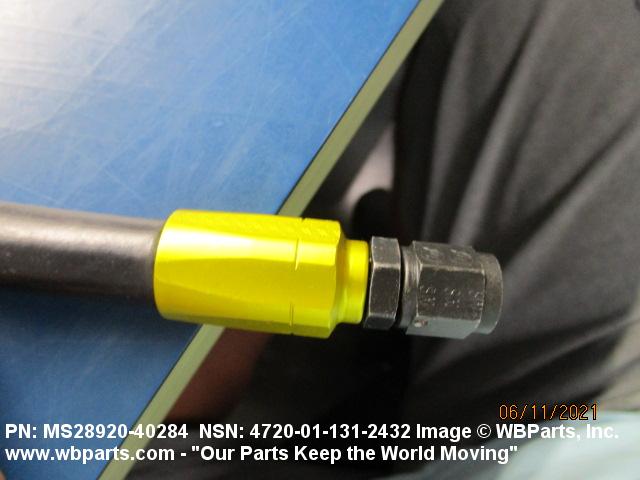

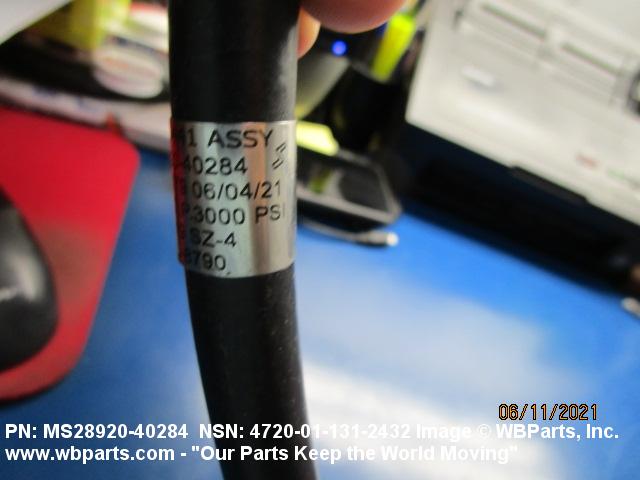

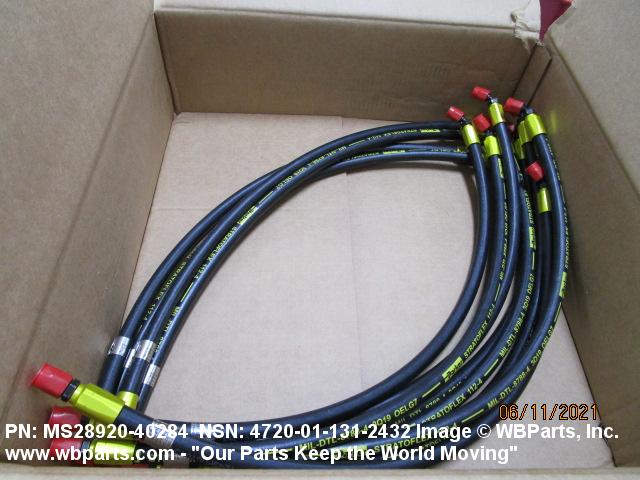

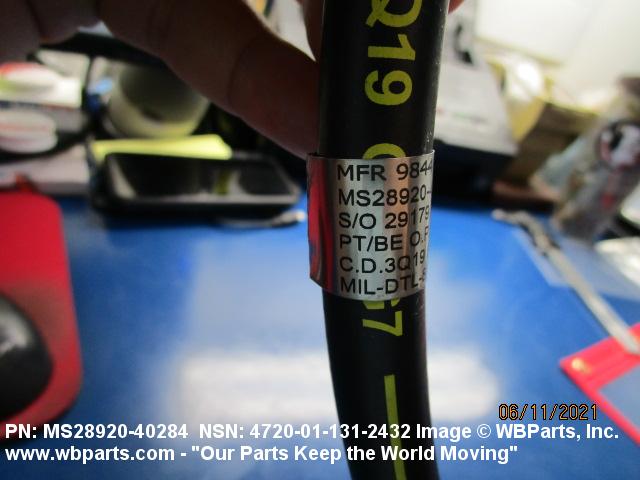

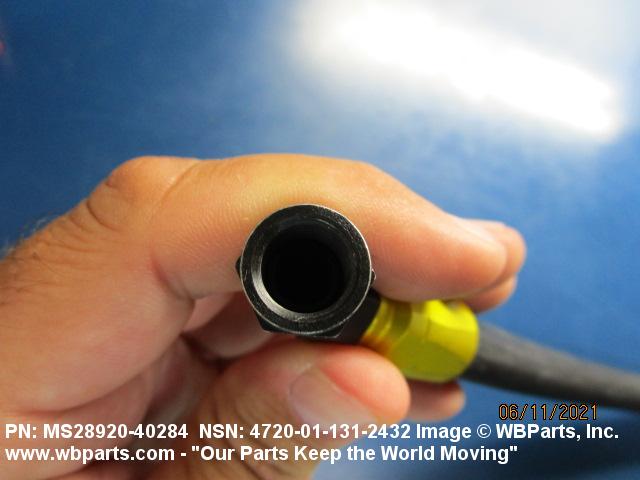

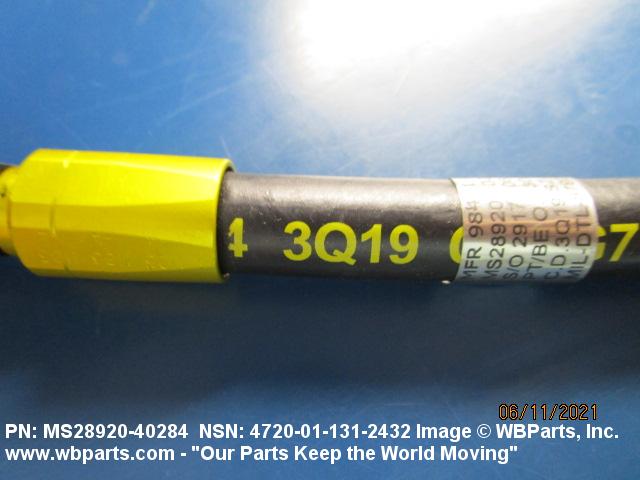

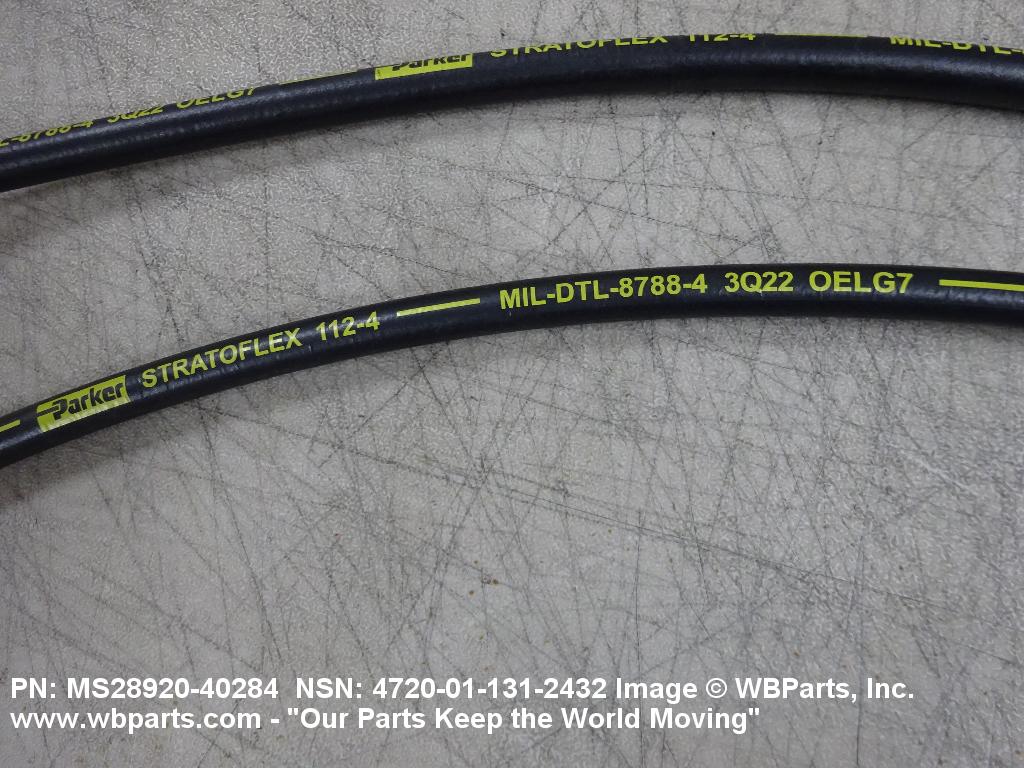

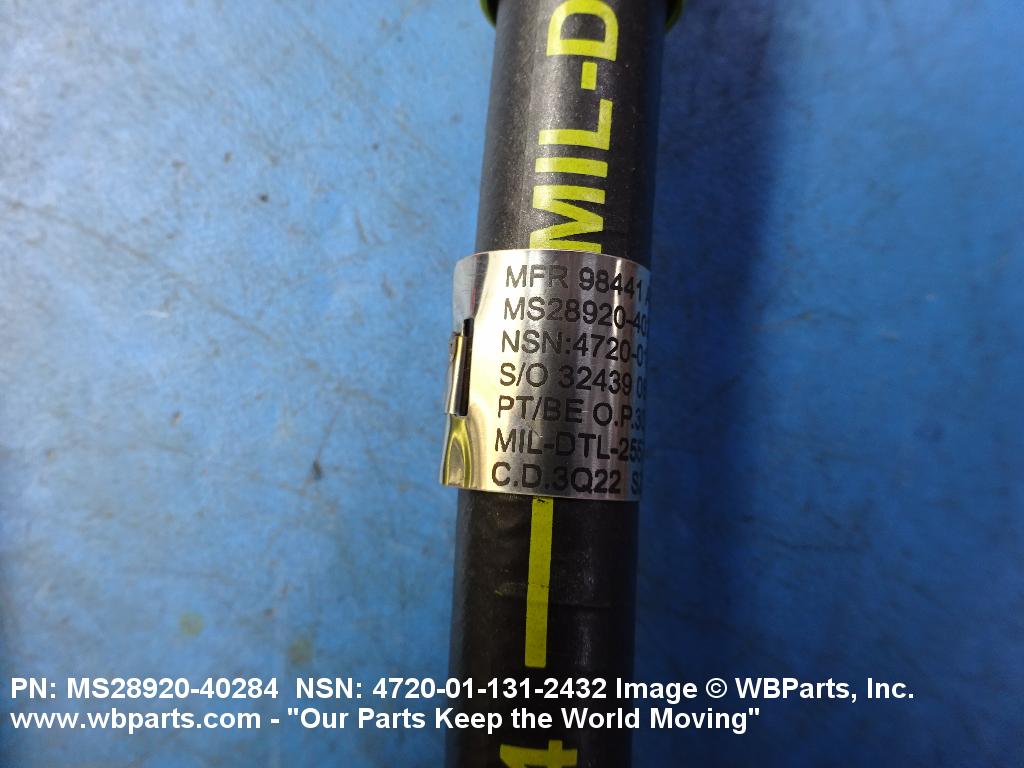

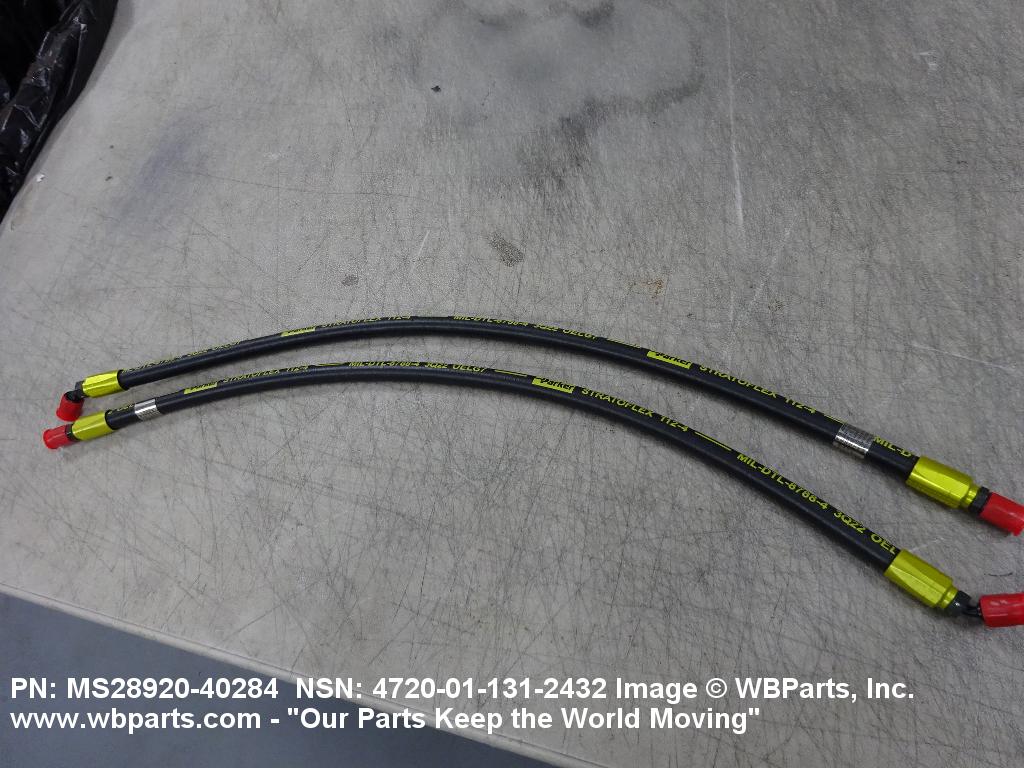

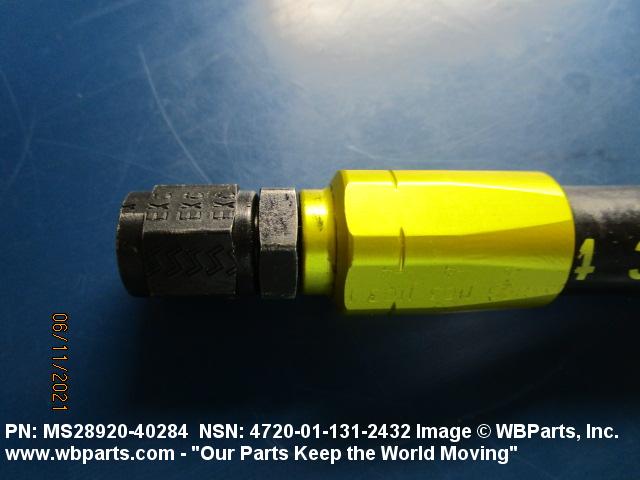

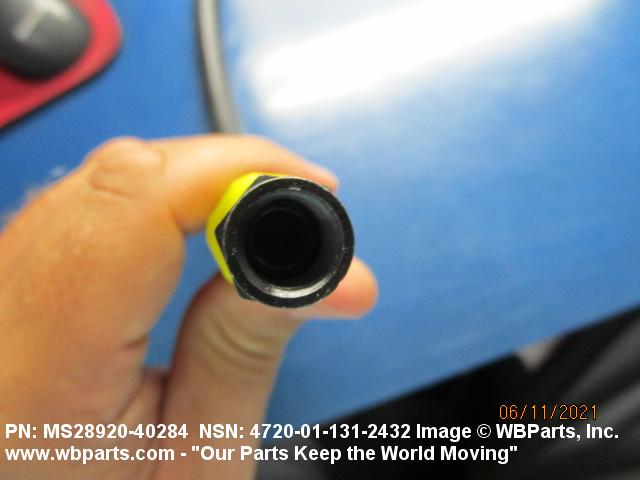

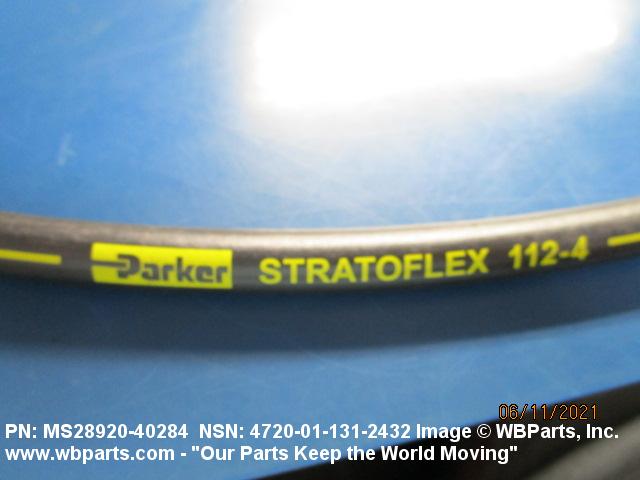

Drawings & Photos | NSN 4720-01-131-2432

Part Number	Request Date	QTY	Origin
4720-01-131-2432	2022-05-132	26	DIBBS
4720-01-131-2432	2022-02-46	12	DIBBS
MS2892040284	2022-01-31	2	United States
4720-01-131-2432	2022-01-20	2	United States
MS28920E0284	2020-06-175	12	United States
4720-01-131-2432	2017-11-306	21	DIBBS
4720-01-131-2432	2014-04-120	27	DIBBS
MS28920E0284	2014-03-85	16	Australia
4720-01-131-2432	2013-10-298	19	DIBBS
4720-01-131-2432	2013-09-253	17	DIBBS

Cross Reference | NSN 4720-01-131-2432

Part Number	Cage Code	Manufacturer
MIL-DTL-8790	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS28920-40284	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS28920E0284	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4720-01-131-2432

Compare

Related Products | NSN 4720-01-131-2432

4720-01-131-2433, 4720-01-131-2434, 4720-01-131-2435, 4720-01-131-2469, 4720-01-131-2613

Technical Data | NSN 4720-01-131-2432

Characteristic	Specifications
HOSE OR TUBING SPEC/STD DATA	MIL-H-8788 SIZE4 SPECIFICATION
INNER CONVEYING TUBE MATERIAL	RUBBER, CHLOROPRENE
INSIDE SURFACE CONDITION	SMOOTH
LAYER COMPOSITION AND LOCATION	1ST LAYER BRAIDED STEEL WIRE 2ND LAYER BRAIDED STEEL WIRE OUTER LAYER MOLDED RUBBER, CHLOROPRENE
OUTER COVERING ENVIRONMENTAL PROTECTION	ABRASION RESISTANT AND OIL RESISTANT
EXTERIOR COLOR	BLACK
CROSS-SECTIONAL SHAPE STYLE	1 ROUND
INSIDE DIAMETER	0.219 INCHES NOMINAL
OUTSIDE DIAMETER	0.625 INCHES NOMINAL
MEASURING METHOD AND LENGTH	28.500 INCHES NOMINAL WORKING
MINIMUM INSIDE BENDING RADIUS	3.000 INCHES
FIRST END FITTING SPEC/STD DATA	MS28760-4 STANDARD
FIRST END CONNECTION TYPE	THREADED INTERNAL TUBE
FIRST END STYLE DESIGNATOR	C3 SWIVEL NUT FLARE
FIRST END SEAT ANGLE IN DEG	37.0
FIRST END CONNECTION DESIGN	STRAIGHT
FIRST END SWIVEL ACTION CAPABILITY	NOT INCLUDED
FIRST END FITTING/COMPONENT AND MATERIAL	NIPPLE STEEL NUT STEEL SOCKET ALUMINUM ALLOY
FIRST END FITTING/COMPONENT AND SURFACE TREATMENT	NIPPLE CADMIUM NUT CADMIUM SOCKET ANODIZED
FIRST END THREAD SERIES DESIGNATOR	UNJF
FIRST END NOMINAL THREAD SIZE	0.437 INCHES
FIRST END THREAD CLASS	3B
FIRST END THREAD DIRECTION	RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END FITTING SPEC/STD DATA	MS28780-4 STANDARD
SECOND END CONNECTION TYPE	THREADED INTERNAL TUBE
SECOND END STYLE DESIGNATOR	C3 SWIVEL NUT FLARE
SECOND END SEAT ANGLE IN DEG	37.0

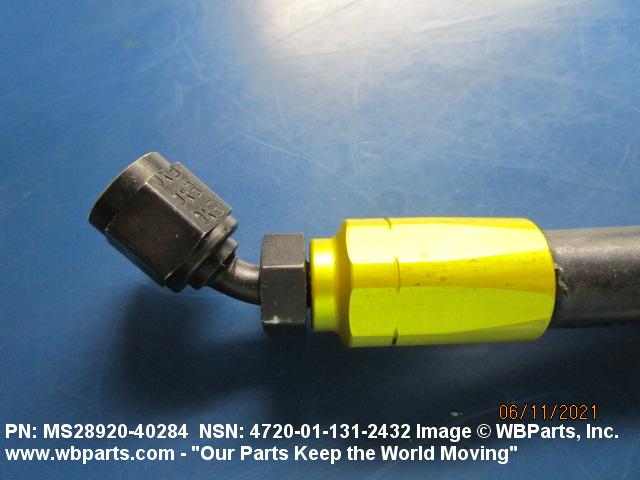

SECOND END CONNECTION DESIGN	ELBOW
SECOND END FLOW ANGLE IN DEG	45.0
SECOND END SWIVEL ACTION CAPABILITY	NOT INCLUDED
SECOND END FITTING/COMPONENT AND MATERIAL	NIPPLE STEEL NUT STEEL SOCKET ALUMINUM ALLOY
SECOND END FITTING/COMPONENT AND SURFACE TREATMENT	NIPPLE CADMIUM NUT CADMIUM SOCKET ANODIZED
SECOND END THREAD SERIES DESIGNATOR	UNJF
SECOND END NOMINAL THREAD SIZE	0.437 INCHES
SECOND END THREAD CLASS	3B
SECOND END THREAD DIRECTION	RIGHT-HAND
TEMP RATING	-65.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH
HYDROSTATIC TEST PRESSURE	8000.0 POUNDS PER SQUARE INCH
BURST TEST PRESSURE	16000.0 POUNDS PER SQUARE INCH

Restrictions/Controls & Freight Information | NSN 4720-01-131-2432

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	W	120 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051140	HOSE:NOI TUBING
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	736	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4720-01-131-2432

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	1 EA : Each
