NSN 4720-01-003-6053 MS2196419, MS21964-19, 01-003-6053

Product Details | NONMETALLIC TUBING

4720-01-003-6053 An item of varying tubular shapes molded or extruded from nonmetallic material. It includes flat form plastic tubing designed to be expanded for use and rubber tubing designed to be fabricated into sealing and/or cushioning devices. Excludes HOSE, NONMETALLIC and TUBE (as modified).20247100027Pipe, Tube and Rigid Tubing47200024Hose and Flexible Tubing

Part Alternates: MS2196419, MS21964-19, 4720-01-003-6053, 01-003-6053, 4720010036053, 010036053

Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 MAY 1975	01-003-6053	31934 ( TUBING, NONMETALLIC )

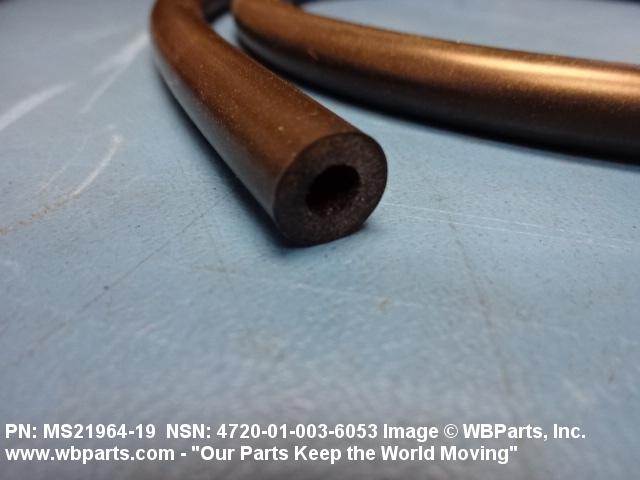

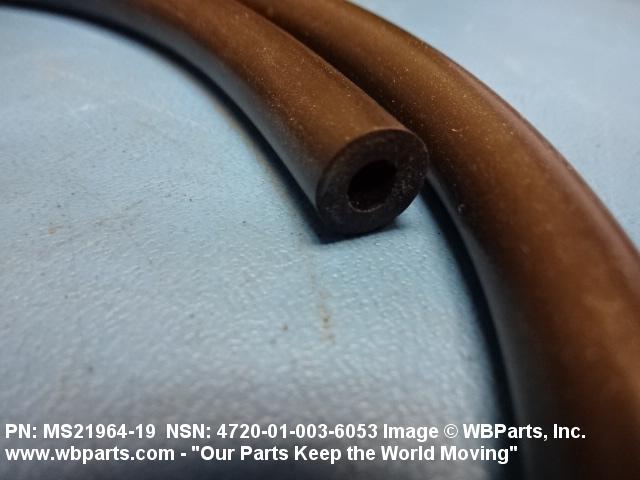

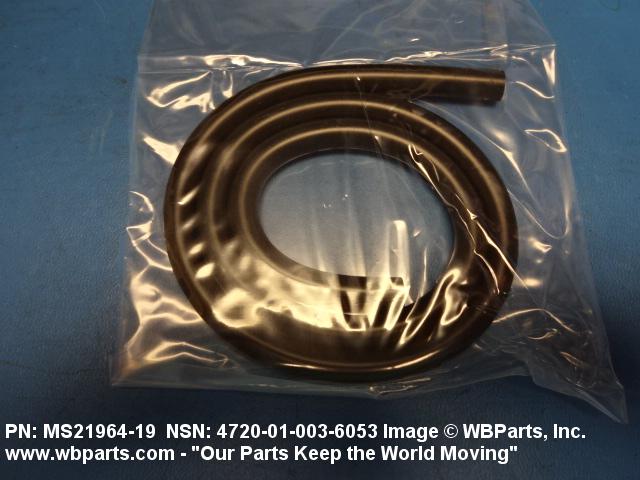

Drawings & Photos | NSN 4720-01-003-6053

Part Number	Request Date	QTY	Origin
4720-01-003-6053	2017-04-97	922	United States
4720-01-003-6053	2017-01-19	922	DIBBS
4720-01-003-6053	2016-05-123	825	DIBBS

Cross Reference | NSN 4720-01-003-6053

Part Number	Cage Code	Manufacturer
MS21964-19	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21964-19	99227	FLUID POWER INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4720-01-003-6053

Compare

Related Products | NSN 4720-01-003-6053

4720-01-003-6054, 4720-01-003-6139, 4720-01-003-6142, 4720-01-003-6701, 4720-01-003-6702

Technical Data | NSN 4720-01-003-6053

Characteristic	Specifications
NONMETALLIC HARDNESS RATING	50.0 NOMINAL SHORE DUROMETER A
MINIMUM TENSILE STRENGTH	1200 POUNDS PER SQUARE INCH
TUBING MATERIAL	SILICONE RUBBER, ZZ-R-765, CLASS 3, GRADE 50
INSIDE SURFACE CONDITION	SMOOTH
OUTER COVERING ENVIRONMENTAL PROTECTION	COLD RESISTANT
EXTERIOR COLOR	ANY ACCEPTABLE
CROSS-SECTIONAL SHAPE STYLE	1 ROUND

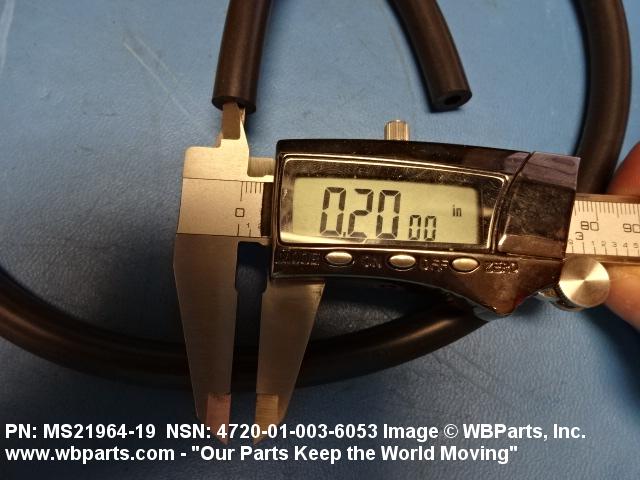

INSIDE DIAMETER	0.188 INCHES NOMINAL

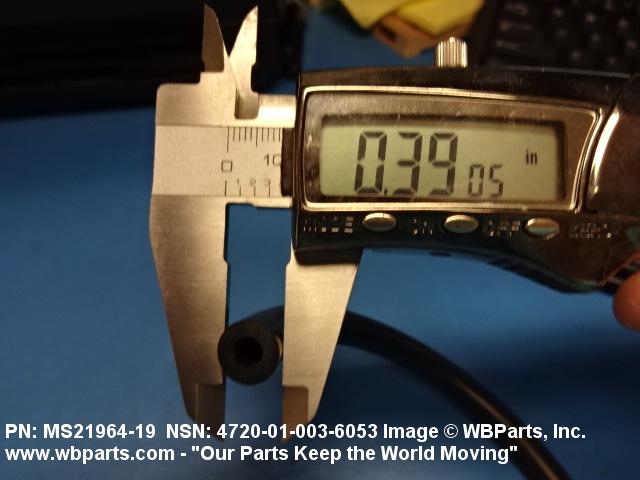

OUTSIDE DIAMETER	0.406 INCHES NOMINAL

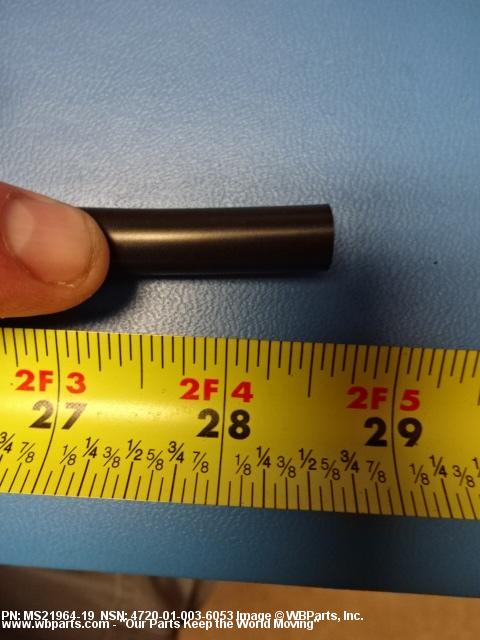

MEASURING METHOD AND LENGTH	28.000 INCHES NOMINAL OVERALL
FLEXIBILITY	FLEXIBLE
MINIMUM INSIDE BENDING RADIUS	NOT RATED
TEMP RATING	-130.0 DEG FAHRENHEIT AND 400.0 DEG FAHRENHEIT
MAXIMUM OPERATING PRESSURE	NOT RATED
BURST TEST PRESSURE	NOT RATED
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21964-19

Restrictions/Controls & Freight Information | NSN 4720-01-003-6053

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051140	HOSE:NOI TUBING
Less than car load rating	Q	70
Less than truck load rating	W	Rating Variable
Water commodity Code	736	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4720-01-003-6053

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Z EA : Each
