NSN 4720-00-998-6399 C1TH927, C1T-H927, H-927
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-998-6399 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: C1TH927, C1T-H927, H-927, HA9210, HA-9210, H927, 3997029001, 399-702-9001, 4720-00-998-6399, 00-998-6399, 4720009986399, 009986399
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 NOV 1967 | 00-998-6399 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

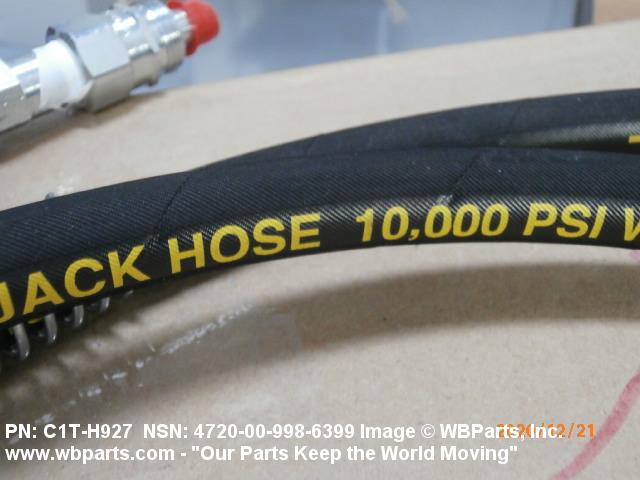

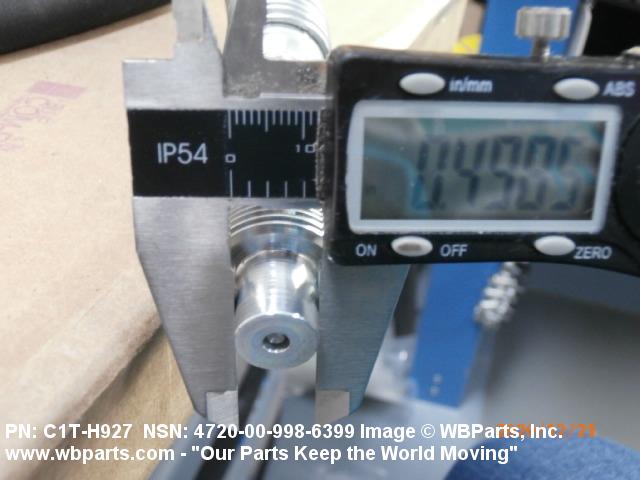

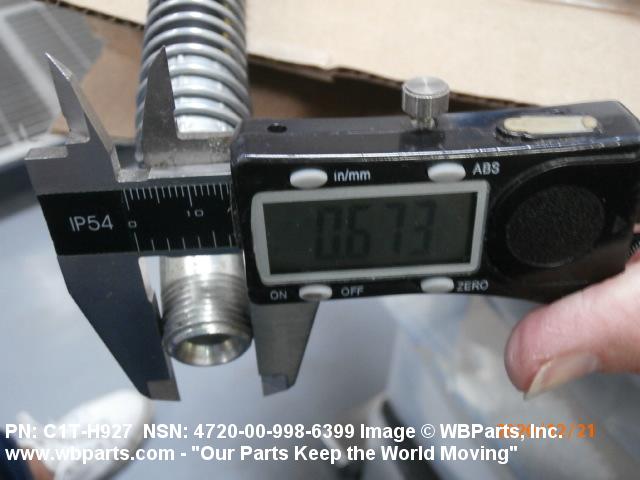

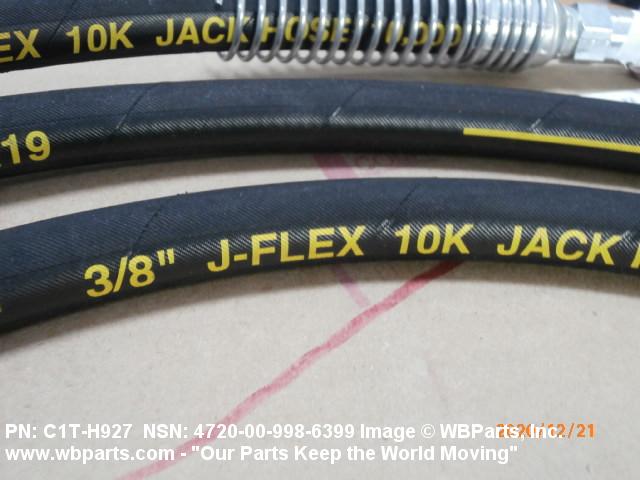

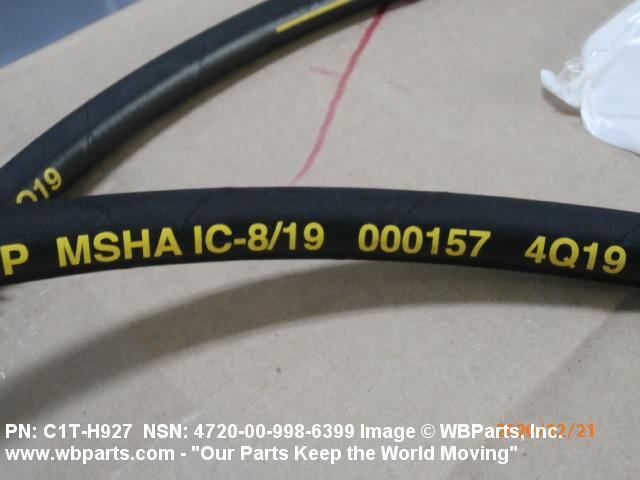

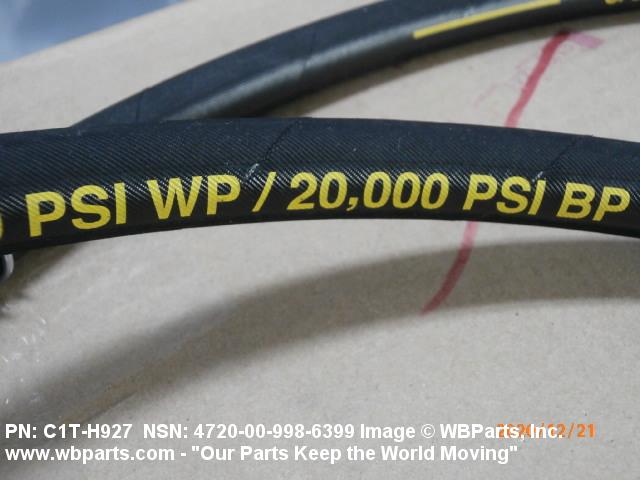

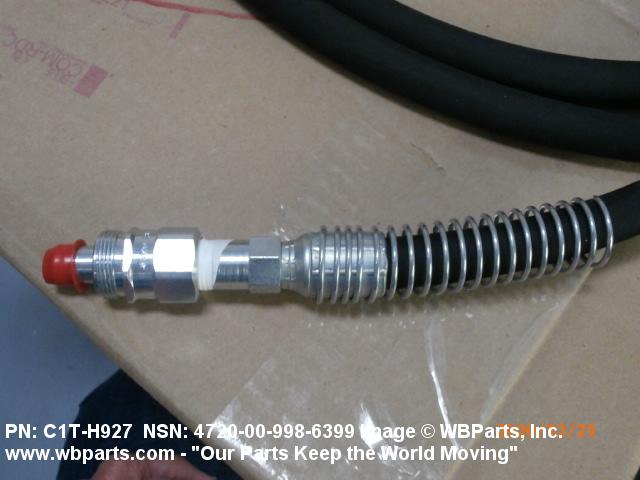

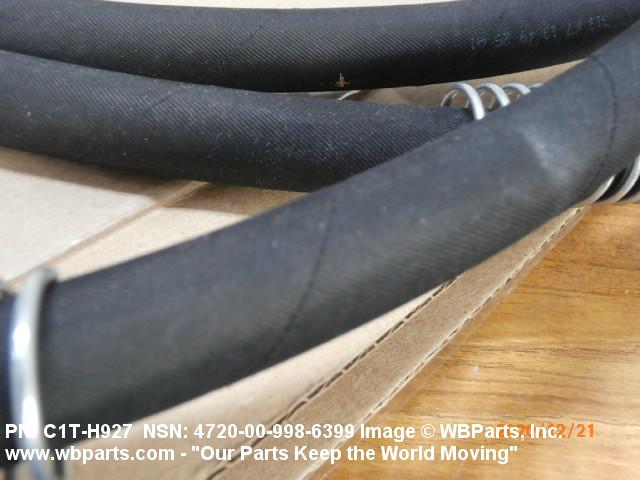

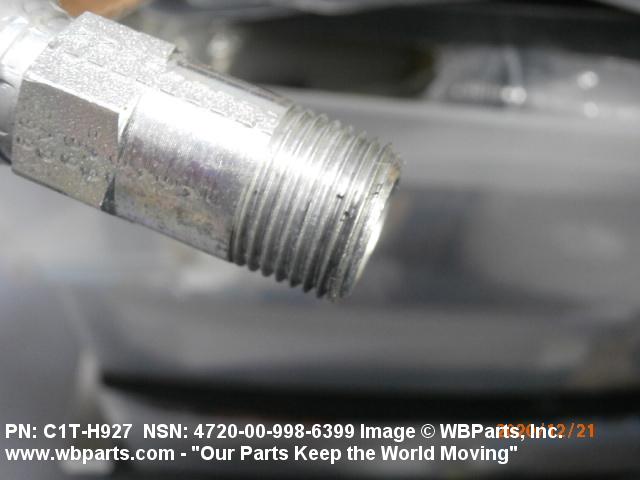

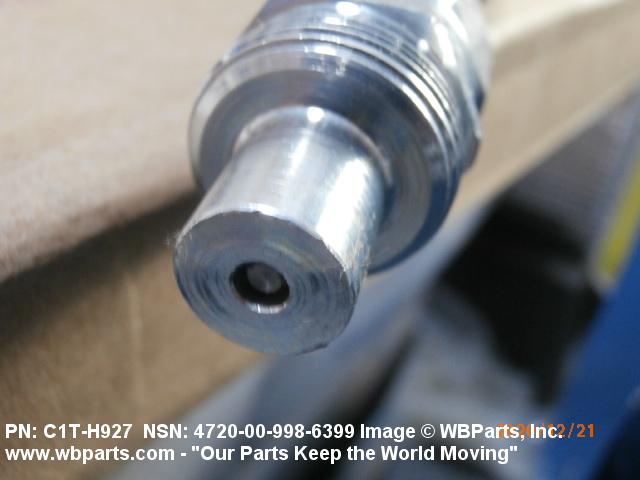

Drawings & Photos | NSN 4720-00-998-6399
Demand History | NSN 4720-00-998-6399
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 399-702-9001 | 2024-02-51 | 37 | DIBBS |
| C1T-H927 | 2024-02-51 | 37 | DIBBS |
| 399-702-9001 | 2024-02-39 | 37 | DIBBS |
| C1T-H927 | 2024-02-39 | 37 | DIBBS |
| 4720-00-998-6399 | 2021-07-203 | 4 | US |
| 399-702-9001 | 2021-06-158 | 20 | DIBBS |
| C1T-H927 | 2021-06-158 | 20 | DIBBS |
| 4720-00-998-6399 | 2021-03-60 | 1 | ID |
| H927 | 2021-02-47 | 1 | Singapore |
| 4720-00-998-6399 | 2020-10-288 | 1 | United States |
| HA9210 | 2020-07-211 | 1 | United States |
| 4720-00-998-6399 | 2015-09-250 | 58 | DIBBS |
| 4720-00-998-6399 | 2015-03-76 | 54 | DIBBS |
| 4720-00-998-6399 | 2013-06-177 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-998-6399
Related Products | NSN 4720-00-998-6399
Technical Data | NSN 4720-00-998-6399
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED STEEL WIRE 2ND LAYER BRAIDED STEEL WIRE OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| EXTERIOR COLOR | BLACK |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.375 INCHES NOMINAL |

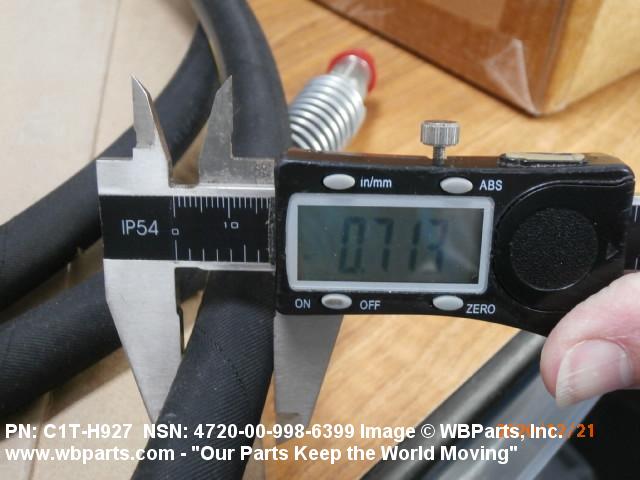

| OUTSIDE DIAMETER | 0.675 INCHES NOMINAL |

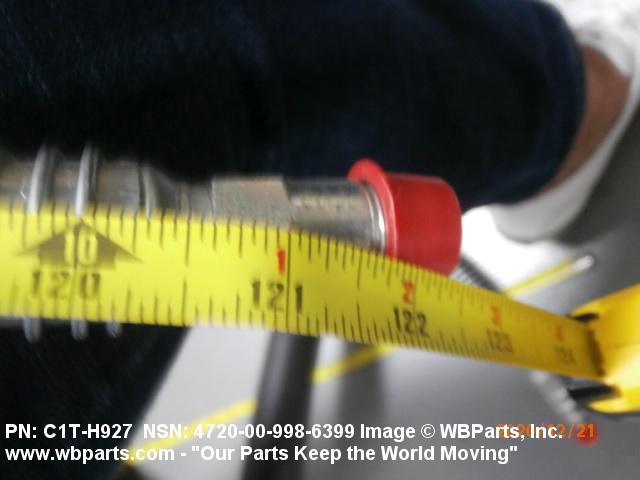

| MEASURING METHOD AND LENGTH | 120.000 INCHES NOMINAL EXCLUDING END FITTINGS |
| MINIMUM INSIDE BENDING RADIUS | 5.000 INCHES |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | D5 PLAIN |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING CADMIUM |
| FIRST END THREAD SERIES DESIGNATOR | NPT |
| FIRST END NOMINAL THREAD SIZE | 0.375 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 10000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 20000.0 POUNDS PER SQUARE INCH |

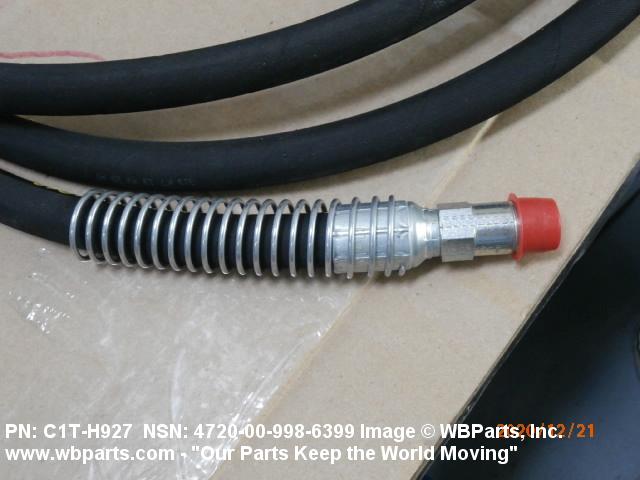

| EXTERNAL PROTECTION TYPE AND LOCATION | BOTH ENDS SPRING GUARD, ROUND STEEL COIL |
| SPECIAL FEATURES | FURNISHED W/ONE CHECK VALVLE |
Restrictions/Controls & Freight Information | NSN 4720-00-998-6399
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-998-6399
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
