NSN 4720-00-990-1676 A5454, FH2811, M11
Product Details | PREFORMED HOSE
4720-00-990-1676 A length of nonmetallic hose, molded to a predetermined shape and size.
Part Alternates: A5454, FH2811, M11, VF32, 52811, 107747, 11039, 1261732, 12617-32, 1300152, 1881807, 26428, 26603, 0071300152, 555-921100, 7011, 71300152, 7-1300152, 81311, 4720-00-990-1676, 00-990-1676, 4720009901676, 009901676, 555921100
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-990-1676 | 17271 ( HOSE, PREFORMED ) |
Drawings & Photos | NSN 4720-00-990-1676
Demand History | NSN 4720-00-990-1676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-990-1676 | 2018-08-218 | 99 | DIBBS |
| 4720-00-990-1676 | 2018-07-206 | 99 | DIBBS |
| 4720-00-990-1676 | 2010-04-120 | 73 | DIBBS |
| 4720-00-990-1676 | 2009-08-237 | 20 | DIBBS |
Cross Reference | NSN 4720-00-990-1676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0071300152 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
| 0071300152 | 66654 | TVH PARTS CO. |
| 107747 | 99832 | SCOTT HUBER ESSICK A CO OF FIGGIE INTERNATIONAL INC |
| 11039 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 12617-32 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 1300152 | 12603 | CLARK EQUIPMENT CO |
| 1881807 | 12204 | DAIMLER CHRYSLER |
| 1881807 | 93334 | ATWOOD FENCE COMPANY INC. |
| 26428 | 24161 | GATES CORP THE DBA GATES RUBBER CO THE |
| 26603 | 24161 | GATES CORP THE DBA GATES RUBBER CO THE |
| 52811 | 16563 | VEYANCE TECHNOLOGIES, INC. |
| 555-921100 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 7-1300152 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
| 7011 | 48170 | PORTER H K CO INC PITTSBURGH PA |
| 81311 | 20796 | DAYCO CORP RUBBER PRODUCTS DIV |
| A5454 | 56190 | METADURE PARTS & SALES, INC. DBA METADURE PARTS & SALES |
| A5454 | 96787 | STEWART AVIONICS INC |
| FH2811 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| M11 | 81300 | PARKER-HANNIFIN CORPORATION DBA INDUSTRIAL HOSE PRODUCT DIVISION |
| VF32 | 24161 | GATES CORP THE DBA GATES RUBBER CO THE |
| VF32 | 24181 | NEW IKOR INC |
| VF32 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-990-1676
Related Products | NSN 4720-00-990-1676
Technical Data | NSN 4720-00-990-1676
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SYNTHETIC |
| COVER MATERIAL | RUBBER, SYNTHETIC |
| REINFORCEMENT MATERIAL | FABRIC AND WIRE |

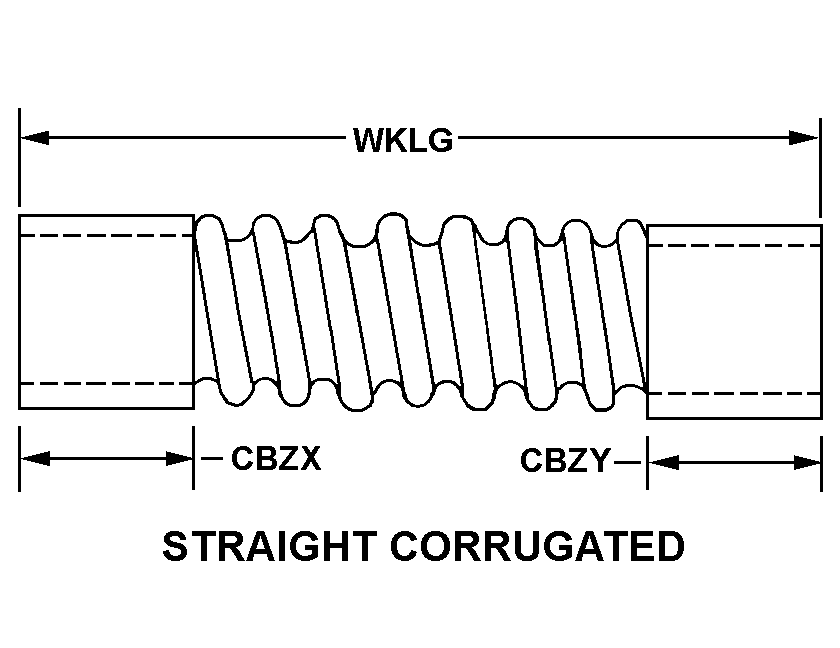

| STYLE DESIGNATOR | C8 STRAIGHT CORRUGATED |
| EFFECTIVE LENGTH | 11.250 INCHES NOMINAL |
| PLAIN END LENGTH | 1.500 INCHES MINIMUM 2.000 INCHES MAXIMUM |
| ENLARGED END | NOT PROVIDED |
| WALL THICKNESS | 0.125 INCHES MINIMUM |
| HOSE INSIDE DIAMETER | 1.750 INCHES NOMINAL |
| PROTECTIVE CAP | NOT INCLUDED |
| SPECIAL FEATURES | HOSE SHALL WITHSTAND A -40 DEG TEMPERATURE AND BE RESISTANT TO HEAT,CHEMICALS,OIL,WET ROT,OR ANY TYPE OF ANTI-FREEZE,RUST INHIBITORS,OR LIQUIDS USED IN ENGINE COOLANT SYSTEMS |
| III FSC APPLICATION DATA | ENGINE COOLANT SYSTEMS |
Restrictions/Controls & Freight Information | NSN 4720-00-990-1676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-990-1676
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
