Product Details | PREFORMED HOSE

4720-00-941-1584 A length of nonmetallic hose, molded to a predetermined shape and size.

Part Alternates: L254482, L2-5448-2, P105611, P10-5611, 34753, 4720-00-941-1584, 00-941-1584, 4720009411584, 009411584

Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing

Supply Group (FSG) NSN Assign. NIIN
47 00-941-1584

Drawings & Photos | NSN 4720-00-941-1584


Demand History | NSN 4720-00-941-1584

Part Number Request Date QTY Origin
P105611 2021-08-222 2 United States

Cross Reference | NSN 4720-00-941-1584

Part Number Cage Code Manufacturer
23005 24161 GATES CORP THE DBA GATES RUBBER CO THE
3030790 15434 CUMMINS INC.
304874R1 0SAT8 KOMATSU AMERICA CORP.
304874R1 29510 KOMATSU AMERICAN INTL CO
304874R1 92679 NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
34753 13841 TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
513864 12603 CLARK EQUIPMENT CO
513864 40152 VME AMERICAS INC SUB OF VME GROUP N V
513864 77237 DANA OFF HIGHWAY PRODUCTS, LLC
AV1006 24161 GATES CORP THE DBA GATES RUBBER CO THE
L2-5448-2 46717 PETTIBONE LLC
P10-5611 18265 DONALDSON COMPANY, INC. DBA TORIT PRODUCTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4720-00-941-1584

Technical Data | NSN 4720-00-941-1584

Characteristic Specifications
MATERIAL RUBBER, SYNTHETIC

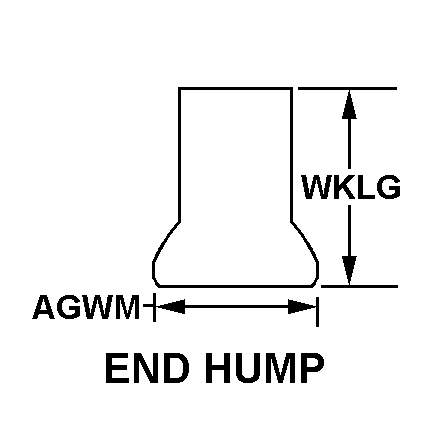

STYLE DESIGNATOR C2 END HUMP
EFFECTIVE LENGTH 5.880 INCHES MINIMUM AND 6.120 INCHES MAXIMUM
LARGEST OUTSIDE DIAMETER 6.900 INCHES NOMINAL
BULGE WIDTH 1.760 INCHES MINIMUM AND 2.000 INCHES MAXIMUM
ENLARGED END NOT PROVIDED
WALL THICKNESS 0.250 INCHES NOMINAL
HOSE INSIDE DIAMETER 5.470 INCHES MINIMUM AND 5.500 INCHES MAXIMUM
PROTECTIVE CAP NOT INCLUDED
MANUFACTURERS CODE 18265
DESIGN CONTROL REFERENCE P10-5611

Restrictions/Controls & Freight Information | NSN 4720-00-941-1584

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
