NSN 4720-00-709-0475 10A7851, 00-709-0475, 007090475
Product Details | PREFORMED HOSE
4720-00-709-0475 A length of nonmetallic hose, molded to a predetermined shape and size.
Part Alternates: 10A7851, 4720-00-709-0475, 00-709-0475, 4720007090475, 007090475
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-709-0475 | 17271 ( HOSE, PREFORMED ) |
Drawings & Photos | NSN 4720-00-709-0475
Cross Reference | NSN 4720-00-709-0475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10A7851 | 81240 | WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-709-0475
Related Products | NSN 4720-00-709-0475
Technical Data | NSN 4720-00-709-0475
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |

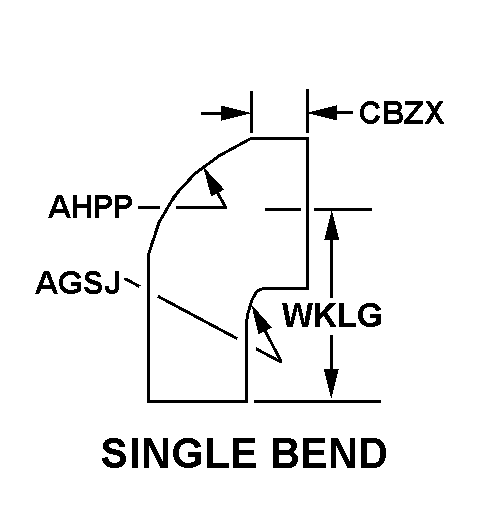

| STYLE DESIGNATOR | C6 SINGLE BEND |
| FEATURES PROVIDED | ENLARGED ENDS |
| WALL THICKNESS | 0.188 INCHES NOMINAL |
| INSIDE DIAMETER | 1.750 INCHES NOMINAL |
| WORKING LENGTH | 3.375 INCHES NOMINAL |
| BEND RADIUS | 0.750 INCHES NOMINAL |
| OUTER RADIUS | 2.875 INCHES NOMINAL |
| FIRST ARM LENGTH | 0.813 INCHES NOMINAL |
| (NON-CORE DATA) ENLARGED PORTION LOCATION AND LENGTH | 0.813 INCHES NOMINAL IDENTICAL ENDS |
| (NON-CORE DATA) ENLARGED END LOCATION AND INSIDE DIAMETER | 1.875 INCHES NOMINAL IDENTICAL ENDS |
Restrictions/Controls & Freight Information | NSN 4720-00-709-0475
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-709-0475
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
