NSN 4720-00-580-6724 MS2779710240, MS27797-10-240, AE3351DC152
Product Details | AIR BREATHING HOSE
4720-00-580-6724 A flexible, tubular item of odorless light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure air or oxygen for breathing purposes. For items with couplings and/or a communication cable, see HOSE ASSEBMLY, AIR BREATHING. Excludes HOSE, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: MS2779710240, MS27797-10-240, AE3351DC152, HE2710038, HE271-0038, HE27100380001, HE271-0038-0001, MILH26385, MIL-H-26385, MILPRF26385, MIL-PRF-26385, 4720-00-580-6724, 00-580-6724, 4720005806724, 005806724
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-580-6724 | 39226 ( HOSE, AIR BREATHING ) |

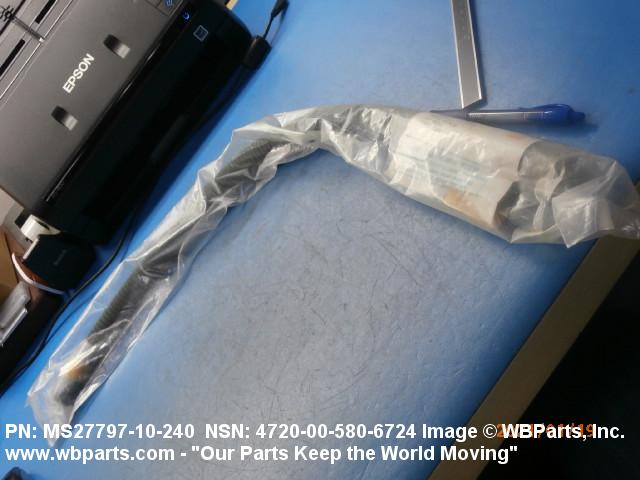

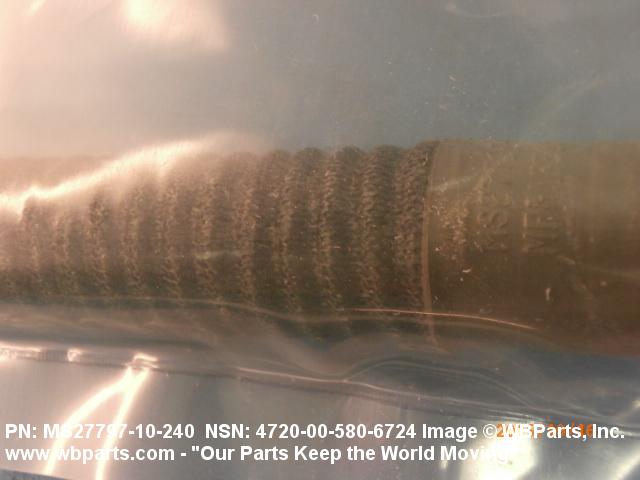

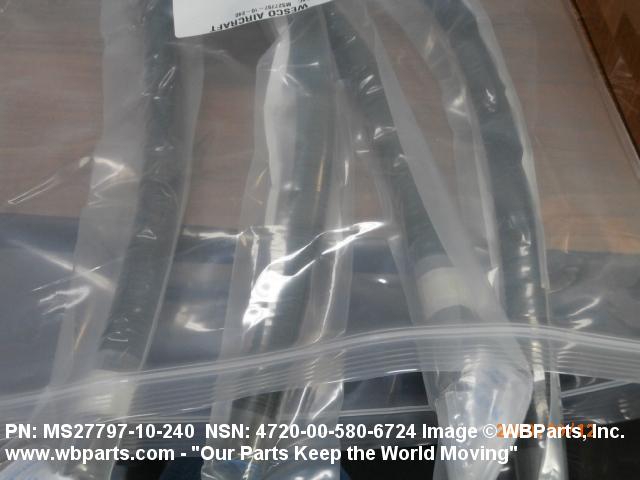

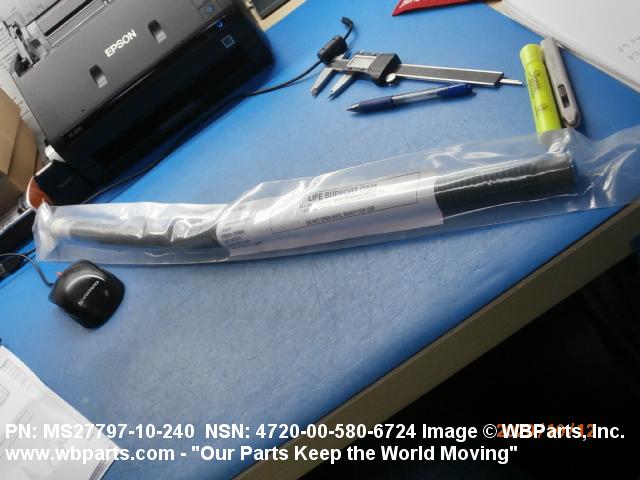

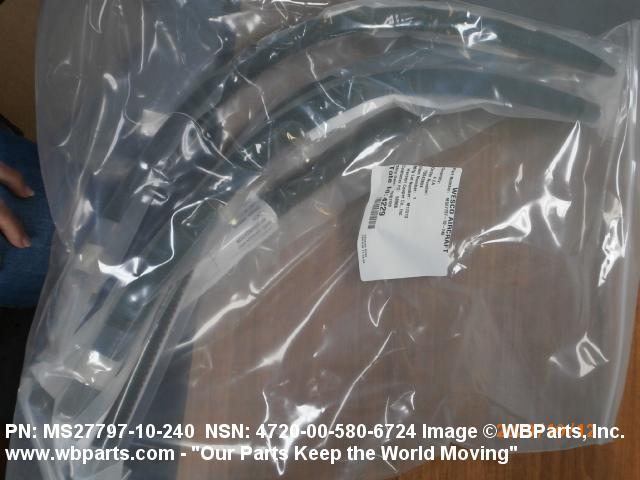

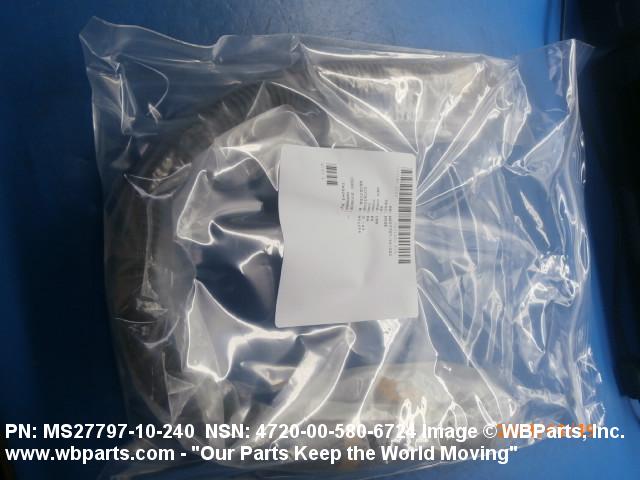

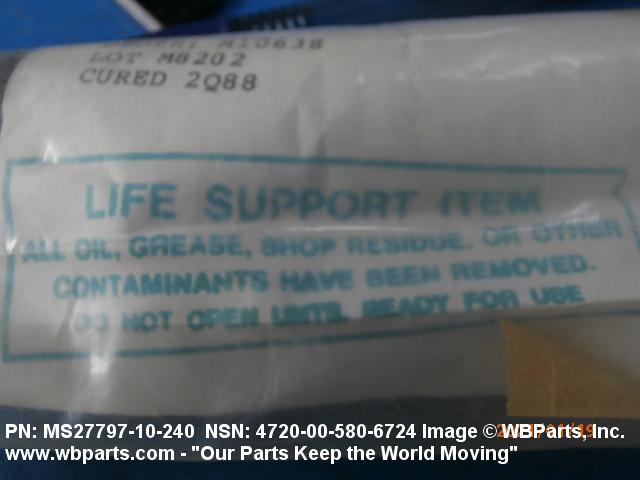

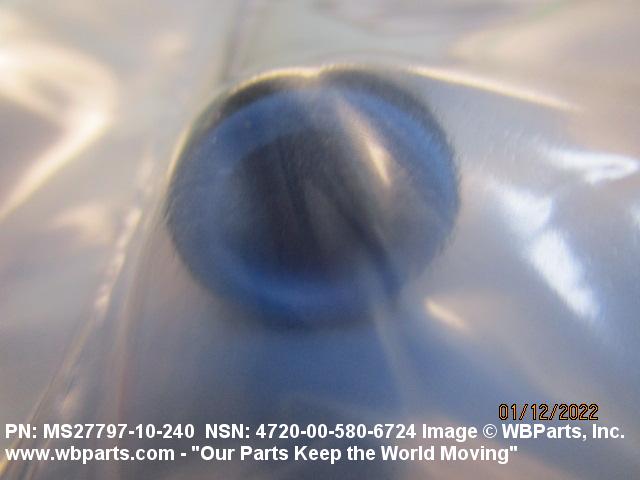

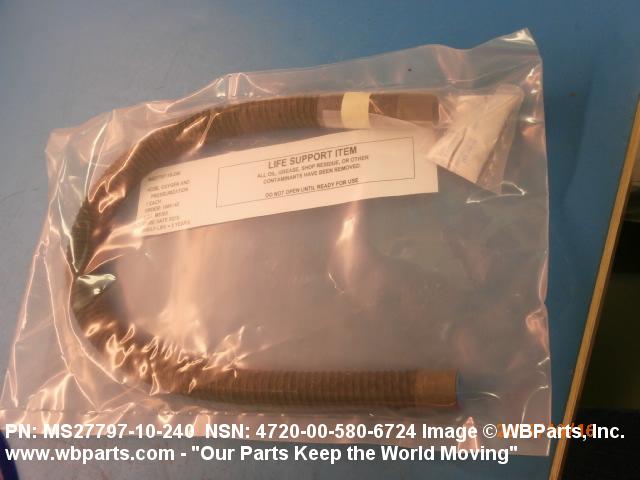

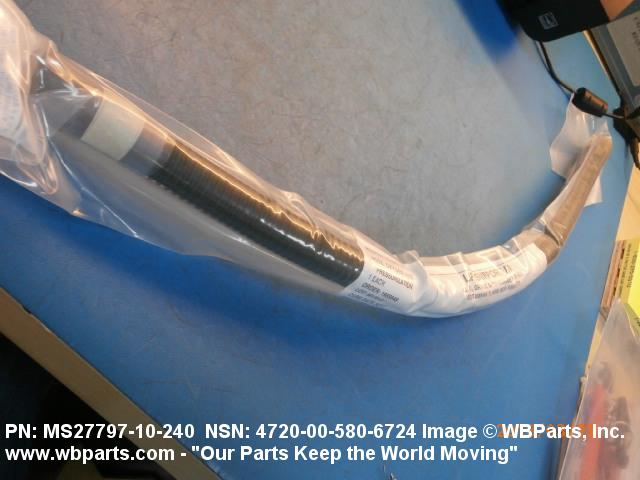

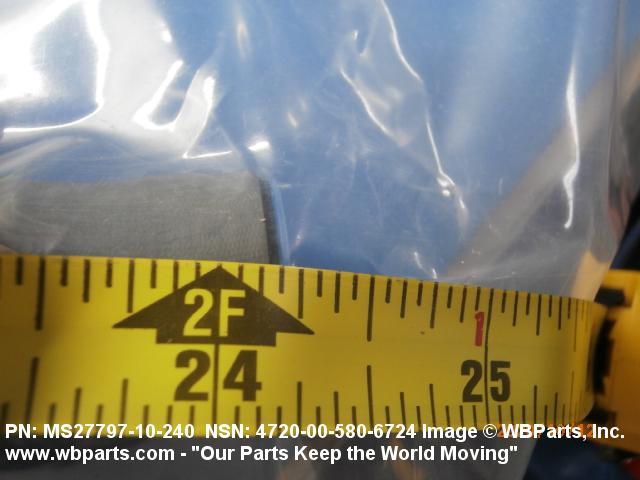

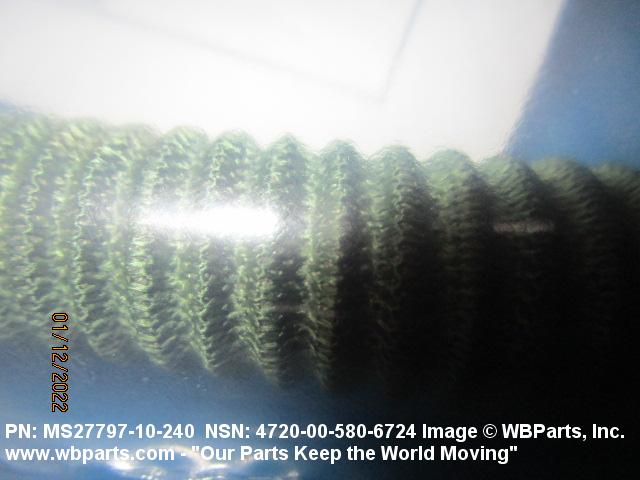

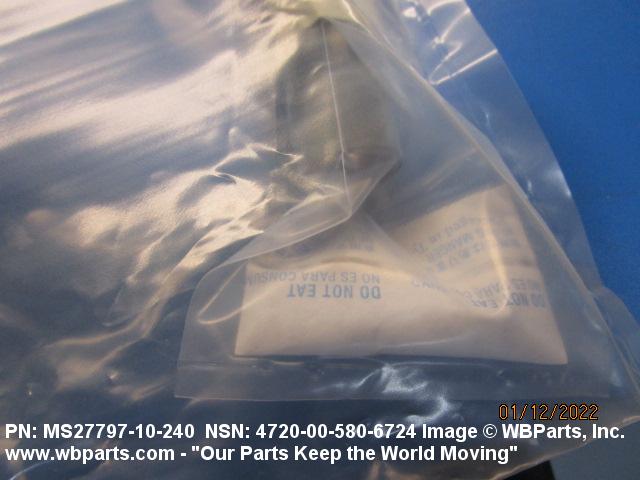

Drawings & Photos | NSN 4720-00-580-6724
Demand History | NSN 4720-00-580-6724
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-580-6724 | 2023-10-285 | 17 | DIBBS |
| MS2779710240 | 2023-06-167 | 2 | Taiwan |
| 4720-00-580-6724 | 2022-12-342 | 4 | Thailand |
| 4720-00-580-6724 | 2022-11-326 | 5 | Taiwan |
| 4720-00-580-6724 | 2022-05-132 | 20 | DIBBS |
| MS2779710240 | 2021-11-319 | 2 | United States |
| 4720-00-580-6724 | 2021-11-319 | 7 | DIBBS |
| MS2779710240 | 2021-01-04 | 1 | us |
| 4720-00-580-6724 | 2020-10-294 | 16 | DIBBS |
| 4720-00-580-6724 | 2020-09-266 | 4 | Taiwan |
| 4720-00-580-6724 | 2020-06-163 | 24 | DIBBS |
| 4720-00-580-6724 | 2020-05-126 | 1 | United States |
| 4720-00-580-6724 | 2020-05-126 | 2 | United States |
| 4720-00-580-6724 | 2020-05-126 | 1 | United States |
| 4720-00-580-6724 | 2020-04-119 | 4 | United States |
| 4720-00-580-6724 | 2020-04-103 | 3 | United States |
| 4720-00-580-6724 | 2019-07-206 | 54 | DIBBS |
| 4720-00-580-6724 | 2018-03-68 | 1 | United States |
| 4720-00-580-6724 | 2018-01-26 | 1 | United States |
| 4720-00-580-6724 | 2017-11-334 | 16 | DIBBS |
| 4720-00-580-6724 | 2017-09-271 | 12 | DIBBS |
| 4720-00-580-6724 | 2017-05-128 | 13 | DIBBS |
| 4720-00-580-6724 | 2017-01-31 | 5 | DIBBS |
| 4720-00-580-6724 | 2016-01-26 | 10 | United States |
| MS2779710240 | 2015-10-282 | 2 | United States |
| MS2779710240 | 2015-09-271 | 3 | United States |
| 4720-00-580-6724 | 2010-11-309 | 1 | United States |
Cross Reference | NSN 4720-00-580-6724
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AE3351DC152 | 80473 | ACME-HAMILTON MFG CORP |
| HE271-0038 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
| HE271-0038-0001 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
| MIL-H-26385 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-26385 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27797-10-240 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-580-6724
Related Products | NSN 4720-00-580-6724
Technical Data | NSN 4720-00-580-6724
| Characteristic | Specifications |
|---|---|

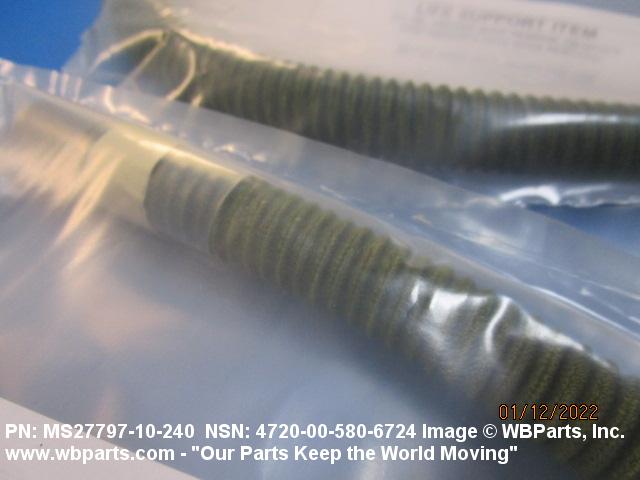

| STYLE DESIGNATOR | A4 HELICALLY WOUND CONTINUOUS WIRE SUPPORTED |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL FIRST END |
| WALL THICKNESS | 0.094 INCHES NOMINAL |

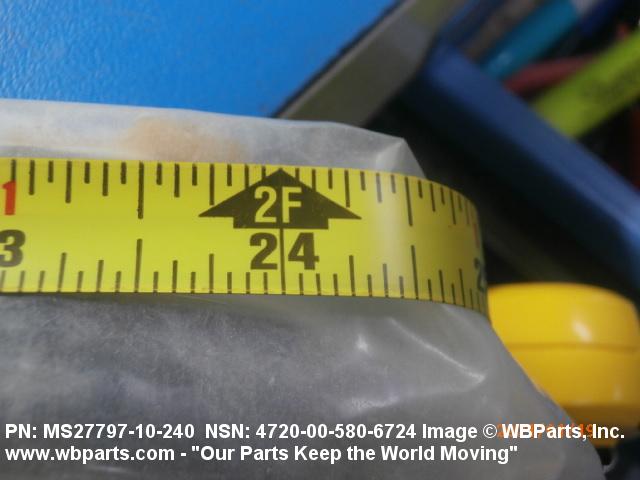

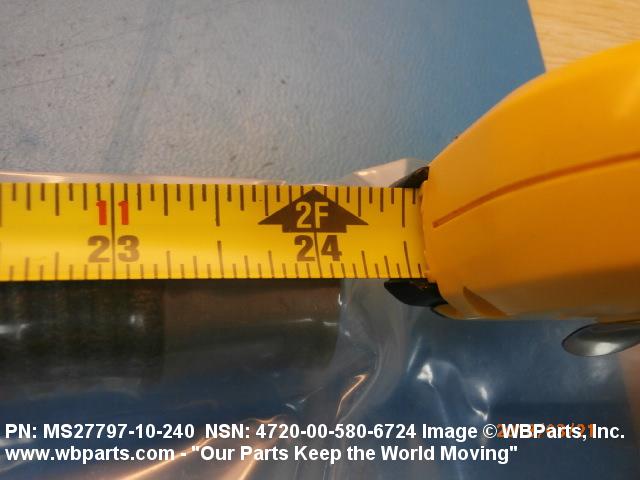

| MEASURING METHOD AND LENGTH | 24.000 INCHES NOMINAL OVERALL |
| CONNECTION STYLE | C3 ROUND FIRST END |

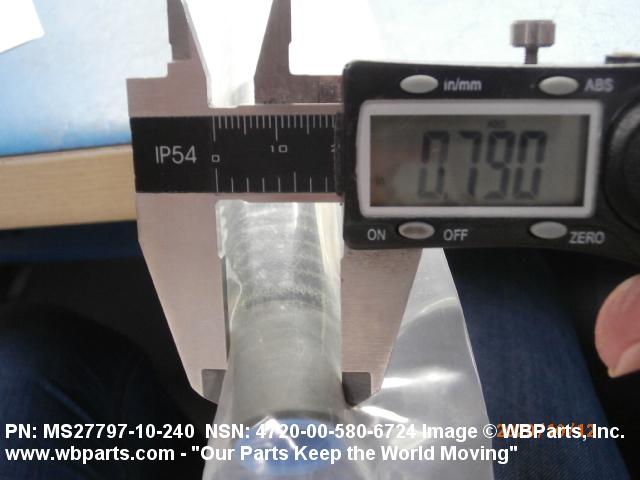

| END INSIDE DIAMETER | 0.625 INCHES NOMINAL FIRST END |
| END OVERALL LENGTH | 0.750 INCHES NOMINAL FIRST END |
| MAXIMUM OPERATING PRESSURE | 25.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | OZONE RESISTANT |
| SPECIAL FEATURES | SUPPORTS GRUMMAN A-10 AIRCRAFT |
| (NON-CORE DATA) TEMP RANGE | -65.0 TO 160.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-26385 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27797-10-240 |
Restrictions/Controls & Freight Information | NSN 4720-00-580-6724
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051035 | DUCTS:AIR SYSTEM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-580-6724
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
