NSN 4710-01-568-1953 3667670, 01-568-1953, 015681953
Product Details | METALLIC TUBE
4710-01-568-1953 A straight, hollow product, welded or seamless, of round, square, or any other cross section and continuous periphery, which does not conform in cross sectional dimensions to recognized pipe standards, or those in Tables 1 through 10, Appendix C, FIIG A004A. It is designed to convey fluids, gasses, and/or semisolids. It may be rolled into coils for ease in handling. For items designed to join a tube or tube fitting to another tube, pipe, or hose or fitting, see ADAPTER (as modified); COUPLING (as modified); or NIPPLE (as modified). Excludes TUBE, BENT (as modified); PIPE, METALLIC; SPACER, SLEEVE; METAL BAR (hollow); and items with fittings, except end protectors.
Part Alternates: 3667670, 4710-01-568-1953, 01-568-1953, 4710015681953, 015681953
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 OCT 2008 | 01-568-1953 | 31979 ( TUBE, METALLIC ) |

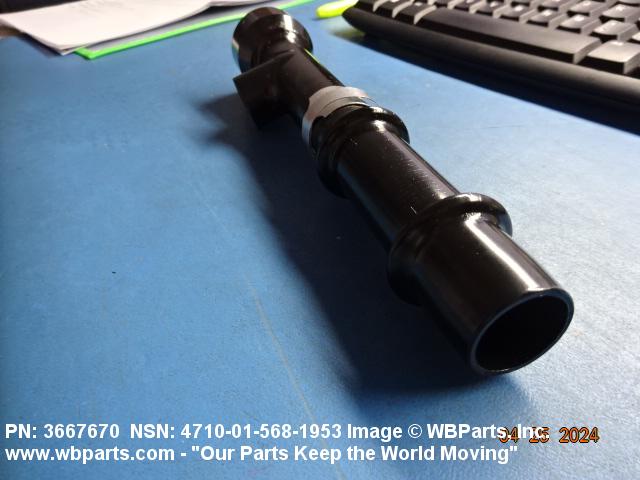

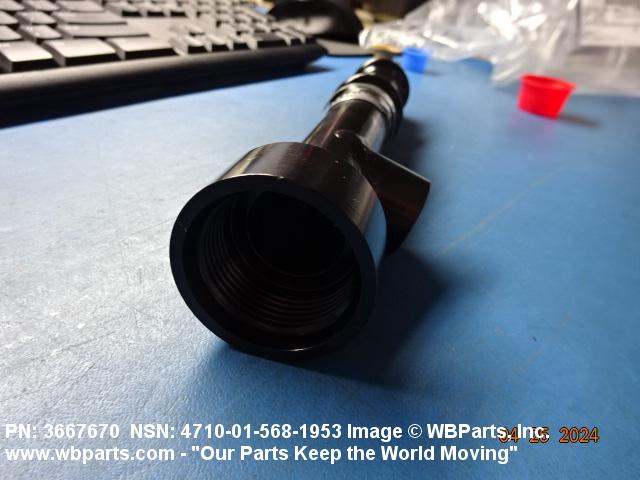

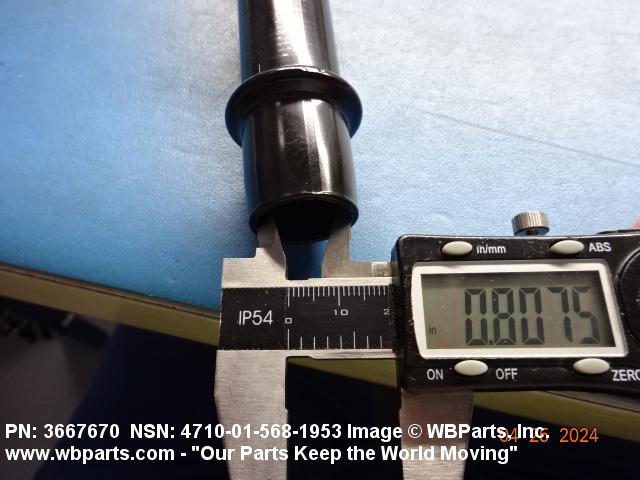

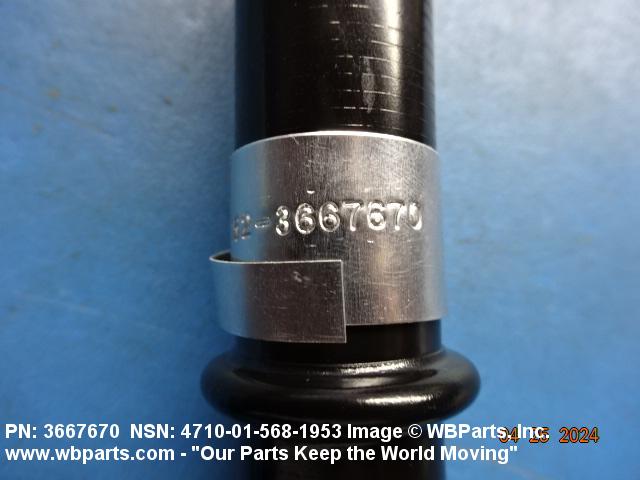

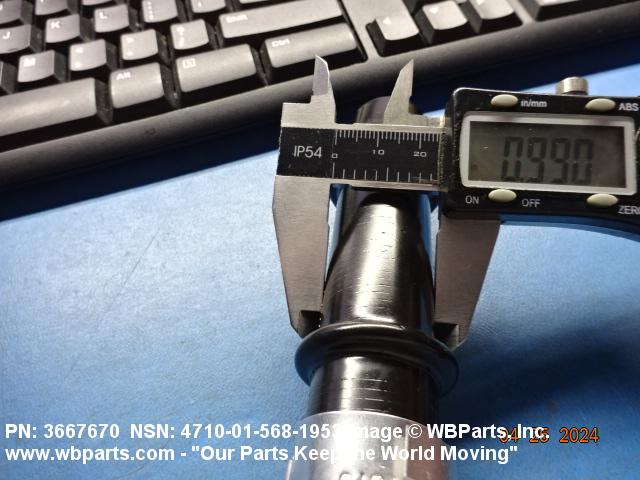

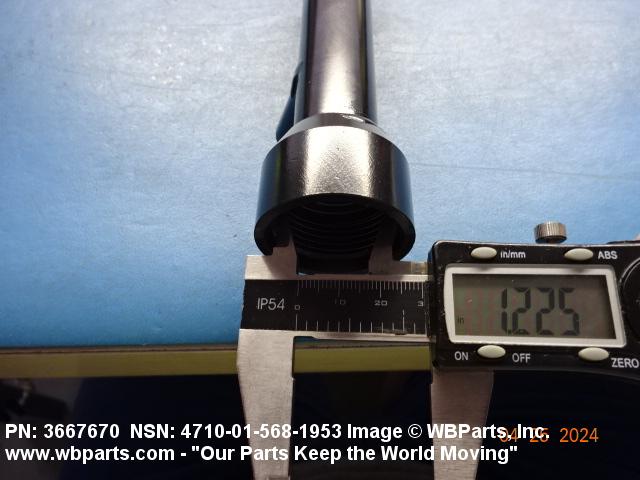

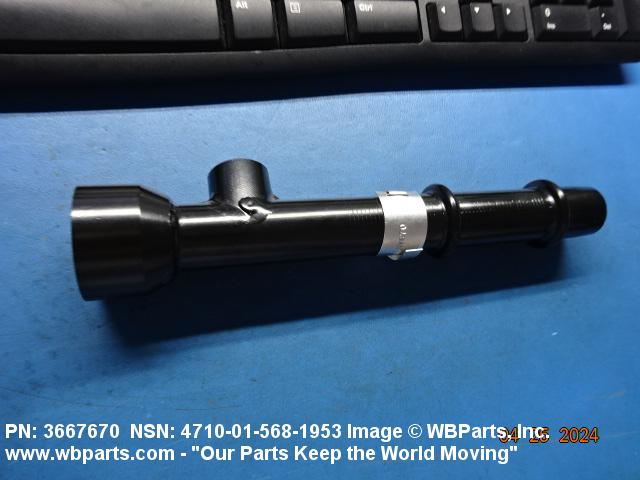

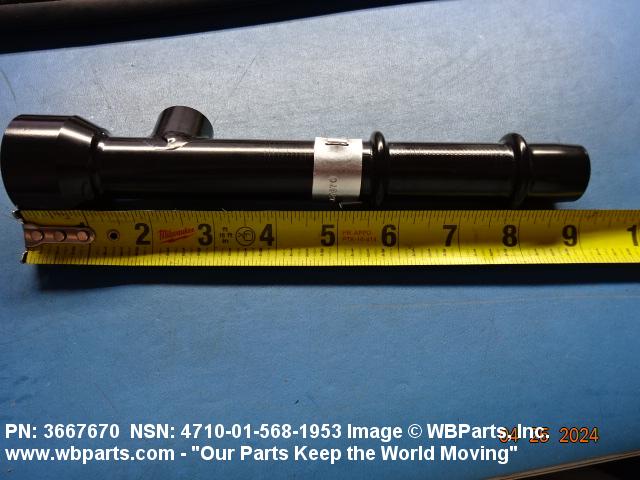

Drawings & Photos | NSN 4710-01-568-1953
Demand History | NSN 4710-01-568-1953
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-568-1953 | 2024-04-114 | 3 | United States |
| 4710-01-568-1953 | 2024-03-79 | 3 | United States |
| 4710-01-568-1953 | 2024-02-60 | 1 | United States |
| 3667670 | 2023-11-320 | 23 | DIBBS |
| 4710-01-568-1953 | 2023-08-227 | 4 | United States |
| 4710-01-568-1953 | 2023-08-219 | 3 | United States |
| 3667670 | 2023-06-166 | 11 | DIBBS |
| 4710-01-568-1953 | 2017-11-306 | 21 | DIBBS |
| 4710-01-568-1953 | 2017-03-64 | 20 | DIBBS |
| 4710-01-568-1953 | 2017-02-37 | 19 | DIBBS |
| 4710-01-568-1953 | 2017-01-20 | 16 | DIBBS |
| 4710-01-568-1953 | 2016-11-321 | 16 | DIBBS |
| 4710-01-568-1953 | 2015-09-273 | 164 | DIBBS |
| 4710-01-568-1953 | 2011-06-171 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-568-1953
Technical Data | NSN 4710-01-568-1953
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | OIL LEVEL TUBE |
| END ITEM IDENTIFICATION | 2320-01-542-7628; TRUCK, CARGO |
Restrictions/Controls & Freight Information | NSN 4710-01-568-1953
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-568-1953
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
