NSN 4710-01-561-4590 124149, 01-561-4590, 015614590
Product Details | METAL TUBE ASSEMBLY
4710-01-561-4590 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 124149, 4710-01-561-4590, 01-561-4590, 4710015614590, 015614590
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 MAR 2008 | 01-561-4590 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-01-561-4590
Cross Reference | NSN 4710-01-561-4590
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124149 | 2J641 | DH INSTRUMENTS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-01-561-4590
Related Products | NSN 4710-01-561-4590
Technical Data | NSN 4710-01-561-4590
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL, STAINLESS |

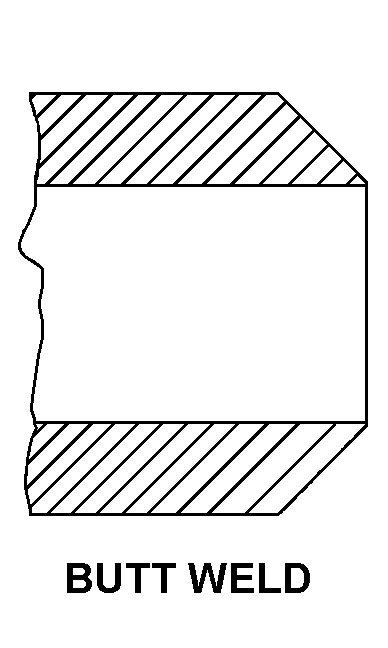

| END CONNECTION STYLE | B78 BUTT WELD ALL ENDS |
| DESIGN FORM | STRAIGHT |
| OVERALL LENGTH | 143.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | ASSEMBLY SHALL WITHSTAND 24000 PSI AND REMAIN LEAK FREE-MATERIAL 316 SS AND 316L SS WITH BRAZE ALLOY 54 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ASSY, TUBEWELD, 1/8 INCH X 143 |
Restrictions/Controls & Freight Information | NSN 4710-01-561-4590
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 9 | 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
