NSN 4710-01-529-8855 308E10203, 308E1020-3, 01-529-8855
Product Details | METAL TUBE ASSEMBLY
4710-01-529-8855 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 308E10203, 308E1020-3, 4710-01-529-8855, 01-529-8855, 4710015298855, 015298855
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 MAY 2005 | 01-529-8855 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-01-529-8855
Cross Reference | NSN 4710-01-529-8855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 308E1020-3 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-529-8855
Technical Data | NSN 4710-01-529-8855
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL |
| TUBE OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |

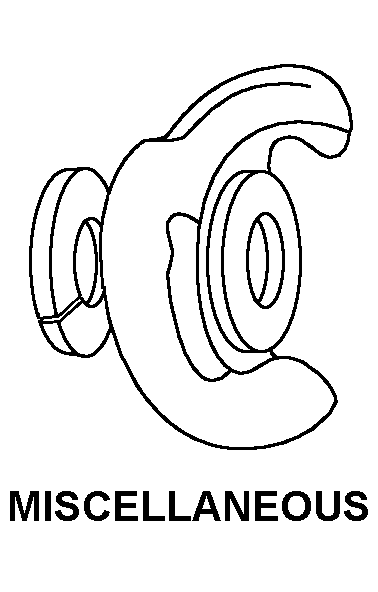

| END CONNECTION STYLE | B81 MISCELLANEOUS |
| DESIGN FORM | PREBENT |
| OVERALL LENGTH | 28.120 INCHES NOMINAL |
| SPECIAL FEATURES | NEXT HIGHER ASSEMBLY 308EI022 |
| III END ITEM IDENTIFICATION | HELICOPTER, CHINOOK CH-47D |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TUBE ASSEMBLY, PITOT MAST SYS |
Restrictions/Controls & Freight Information | NSN 4710-01-529-8855
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
