NSN 4710-01-424-5022 33510141, 3351014-1, 01-424-5022
Product Details | METALLIC BENT TUBE
4710-01-424-5022 A bent hollow item, welded or seamless. It has a round, square or any other cross section, with a continuous periphery. It is primarily designed to convey fluids, gases and/or semisolids. Excludes items of circular cross section which conform in dimensional characteristics to PIPE, METALLIC; ELBOW, PIPE; ELBOW, TUBE; BEND, ELECTRICAL CONDUIT; BEND, PIPE, RETURN; and BEND, TUBE, RETURN. For items with end fittings on one or both ends, see TUBE ASSEMBLY, METAL.
Part Alternates: 33510141, 3351014-1, 4710-01-424-5022, 01-424-5022, 4710014245022, 014245022
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 JAN 1996 | 01-424-5022 | 32507 ( TUBE, BENT, METALLIC ) |
Drawings & Photos | NSN 4710-01-424-5022
Cross Reference | NSN 4710-01-424-5022
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3351014-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-424-5022
Technical Data | NSN 4710-01-424-5022
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 PLAIN ROUND |
| WALL THICKNESS | 0.035 INCHES NOMINAL |
| DIAMETER | 1.000 INCHES NOMINAL |

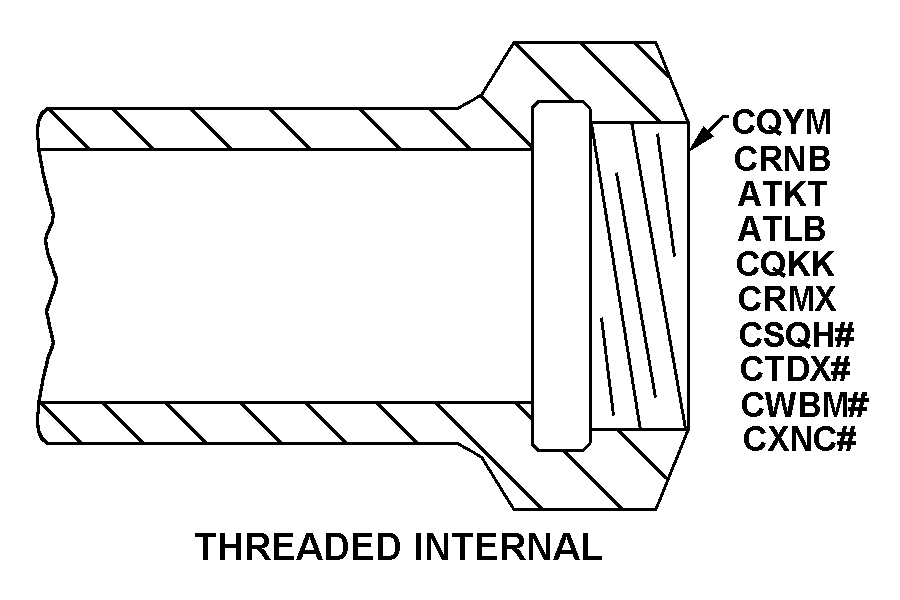

| FIRST END STYLE | 8 INTERNAL THREADED |
| FIRST END NOMINAL THREAD SIZE | 1.312 INCHES |
| FIRST END THREAD SERIES | UNJ |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 1 PLAIN |
| CONSTRUCTION | SEAMLESS |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| MAXIMUM OPERATING TEMP | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4710-01-424-5022
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
