NSN 4710-01-288-5015 9447M21G160, 01-288-5015, 012885015
Product Details | METAL TUBE ASSEMBLY
4710-01-288-5015 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 9447M21G160, 4710-01-288-5015, 01-288-5015, 4710012885015, 012885015
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 NOV 1988 | 01-288-5015 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-01-288-5015
Cross Reference | NSN 4710-01-288-5015
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9447M21G160 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-01-288-5015
Related Products | NSN 4710-01-288-5015
Technical Data | NSN 4710-01-288-5015
| Characteristic | Specifications |
|---|---|
| TUBE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| WALL THICKNESS | 0.049 INCHES NOMINAL |

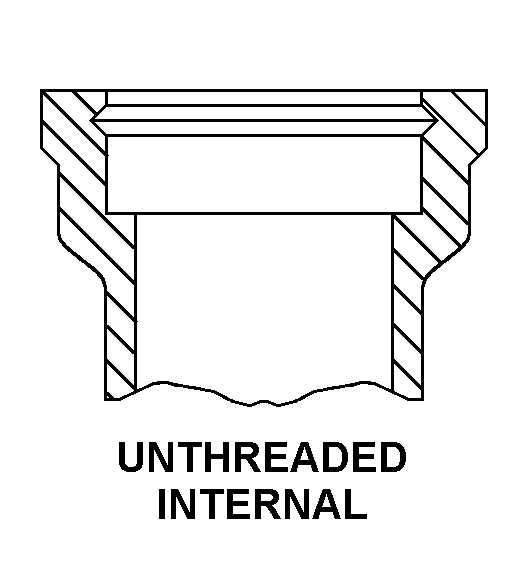

| END CONNECTION STYLE | B34 UNTHREADED INTERNAL |
