NSN 4710-01-147-4008 PL74A586529, 10110839 , 74A5865291001
Product Details | METAL TUBE ASSEMBLY
4710-01-147-4008 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: PL74A586529, 10110839 , 74A5865291001, 74A586529-1001, 74A5865291003, 74A586529-1003, 4710-01-147-4008, 01-147-4008, 4710011474008, 011474008
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 FEB 1983 | 01-147-4008 | 21989 ( TUBE ASSEMBLY, METAL ) |

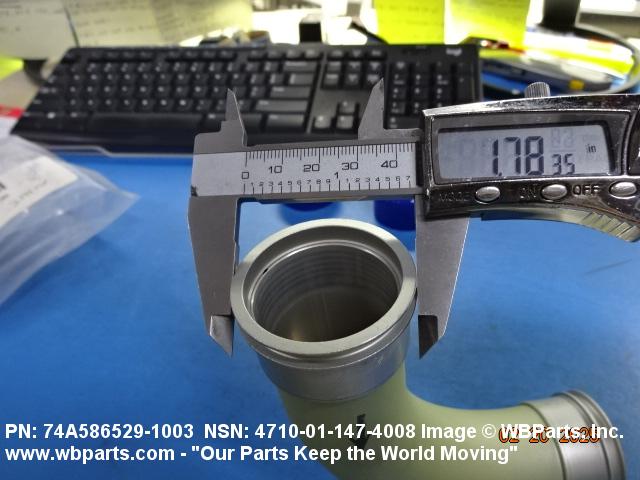

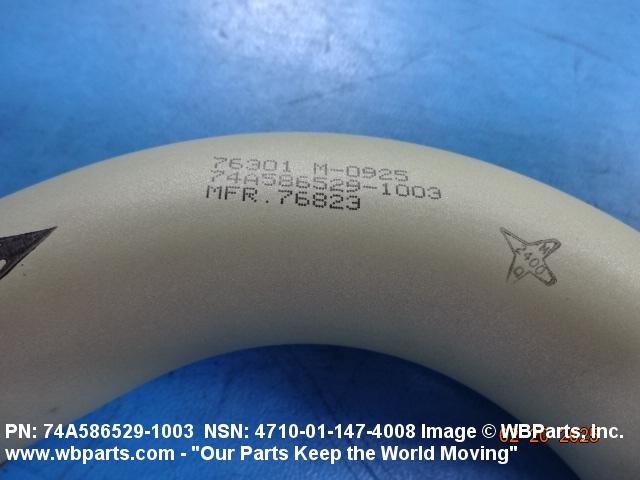

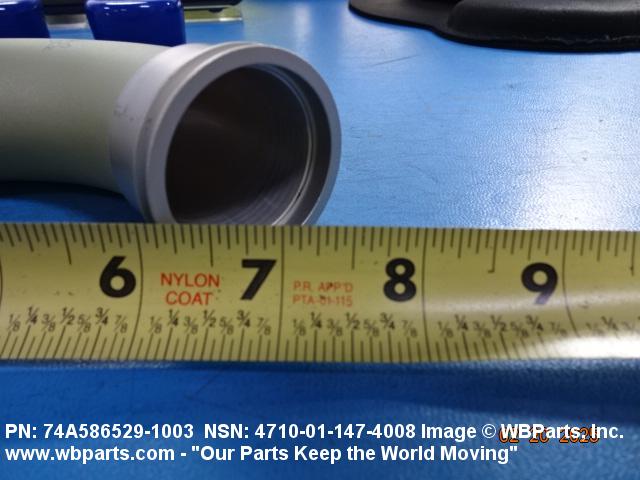

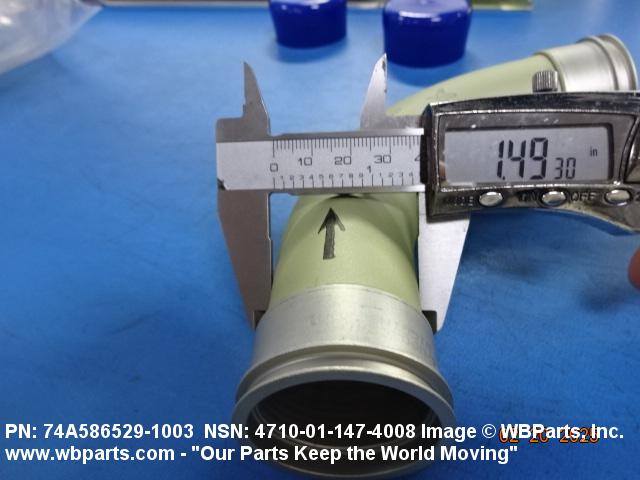

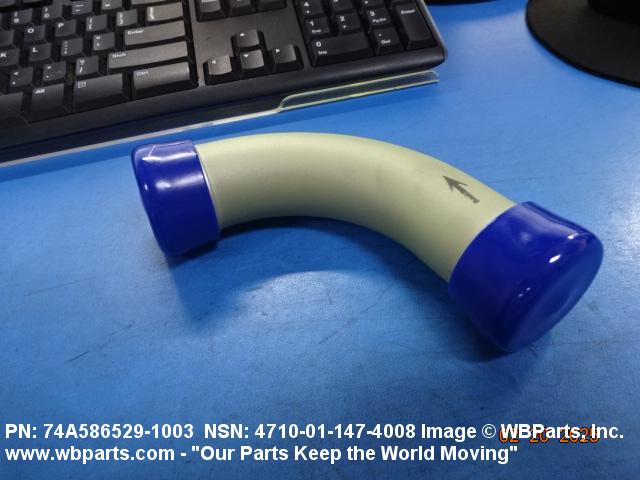

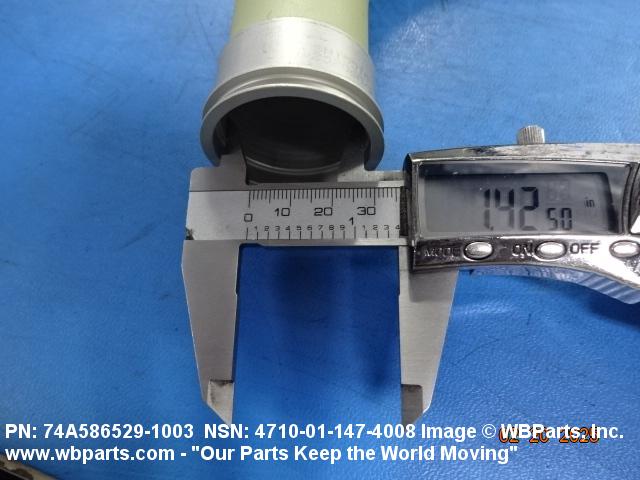

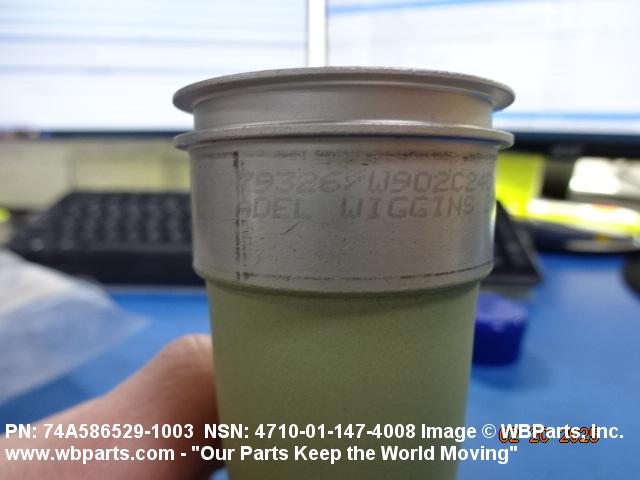

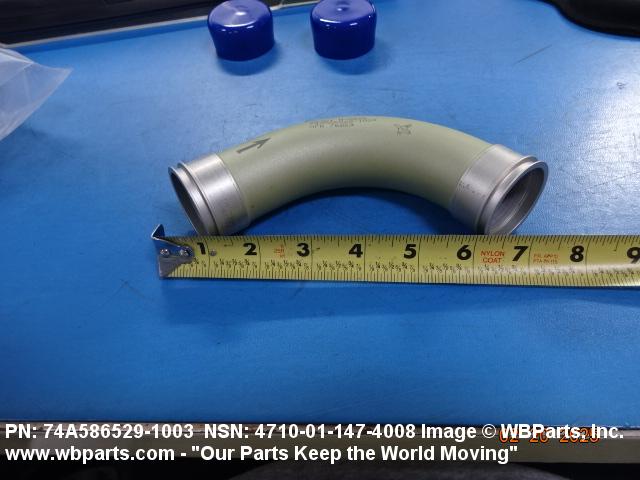

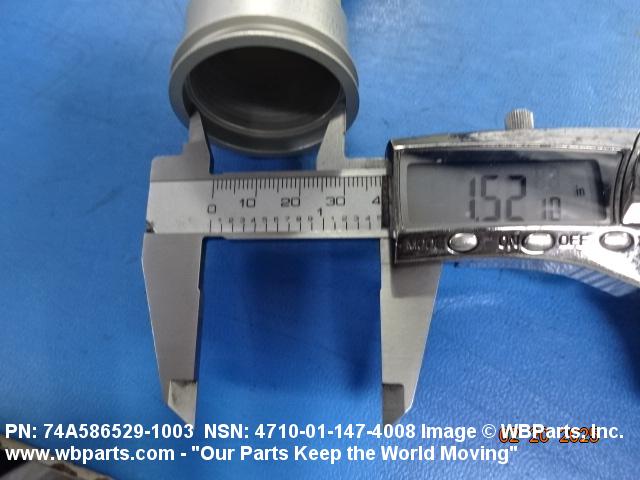

Drawings & Photos | NSN 4710-01-147-4008
Demand History | NSN 4710-01-147-4008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74A5865291003 | 2024-11-306 | 1 | us |
| 74A5865291003 | 2024-11-306 | 1 | us |
| 4710-01-147-4008 | 2017-09-260 | 10 | DIBBS |
| 4710-01-147-4008 | 2017-08-243 | 15 | DIBBS |
| 4710-01-147-4008 | 2017-07-198 | 16 | DIBBS |
| 4710-01-147-4008 | 2017-06-177 | 16 | DIBBS |
| 4710-01-147-4008 | 2017-05-124 | 47 | DIBBS |
| 4710-01-147-4008 | 2017-03-61 | 16 | DIBBS |
| 4710-01-147-4008 | 2017-02-53 | 5 | DIBBS |
| 4710-01-147-4008 | 2016-12-364 | 5 | DIBBS |
| 4710-01-147-4008 | 2016-01-06 | 6 | DIBBS |
| 4710-01-147-4008 | 2015-12-341 | 17 | DIBBS |
| 4710-01-147-4008 | 2015-11-327 | 6 | DIBBS |
| 4710-01-147-4008 | 2014-12-338 | 2 | DIBBS |
| 4710-01-147-4008 | 2012-08-244 | 8 | DIBBS |
| 4710-01-147-4008 | 2010-05-140 | 5 | DIBBS |
| 4710-01-147-4008 | 2010-04-120 | 5 | DIBBS |
| 4710-01-147-4008 | 2010-03-63 | 4 | DIBBS |
| 4710-01-147-4008 | 2009-12-337 | 6 | DIBBS |
| 4710-01-147-4008 | 2009-11-322 | 6 | DIBBS |
| 4710-01-147-4008 | 2009-04-98 | 3 | DIBBS |
| 4710-01-147-4008 | 2009-03-72 | 2 | DIBBS |
Cross Reference | NSN 4710-01-147-4008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A586529-1001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A586529-1001 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 74A586529-1003 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A586529-1003 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| PL74A586529 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-147-4008
Technical Data | NSN 4710-01-147-4008
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | ALUMINUM ALLOY, WW-T-700/4, ALLOY 5052 |
| TUBE OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |
| END CONNECTION STYLE | B29 UNTHREADED INTERNAL |
| MATING END QUANTITY | 2 |
| MATERIAL | ALUMINUM ALLOY |
| DESIGN FORM | PREBENT |
| SPECIAL FEATURES | GASKET SEAT END FITTINGS |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74A586529-1003 |
Restrictions/Controls & Freight Information | NSN 4710-01-147-4008
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051820 | PIPE R TUBING ALUM NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-147-4008
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
