NSN 4710-01-144-5256 8434081, 843408-1, 01-144-5256
Product Details | METAL TUBE ASSEMBLY
4710-01-144-5256 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 8434081, 843408-1, 4710-01-144-5256, 01-144-5256, 4710011445256, 011445256
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 DEC 1982 | 01-144-5256 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-01-144-5256
Demand History | NSN 4710-01-144-5256
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-144-5256 | 2015-01-15 | 1 | UK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-144-5256
Technical Data | NSN 4710-01-144-5256
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL,MIL-T-8506,COMP 304 |
| TUBE OUTSIDE DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| WALL THICKNESS | 0.025 INCHES MINIMUM AND 0.045 INCHES MAXIMUM |

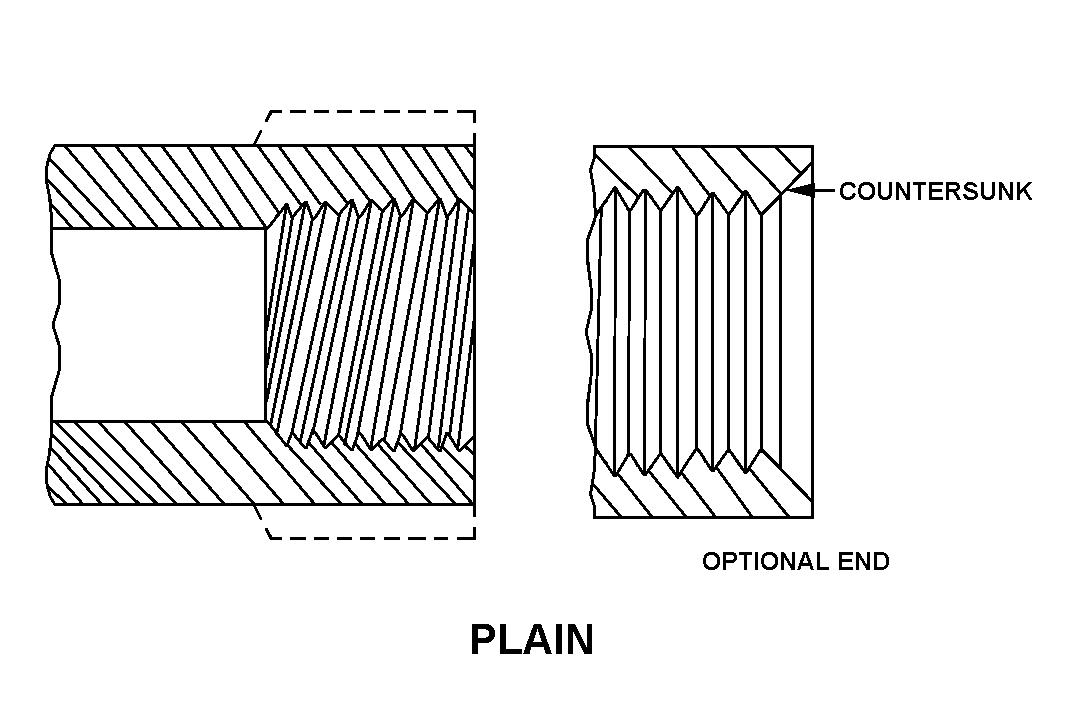

| END CONNECTION STYLE | B4 PLAIN B27 UNTHREADED INTERNAL |
| MATING END QUANTITY | 1 1 |
| MATERIAL | ALUMINUM ALLOY ALUMINUM ALLOY |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| DESIGN FORM | PREBENT |
Restrictions/Controls & Freight Information | NSN 4710-01-144-5256
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
